- turns Ratio: 5:4:5
- Rated Current: 1.5A
- Insulation Test Voltage: 1.5VAC
- Application: Drive isolation circuit
- Operating temperature: –40 ℃ to +125 ℃

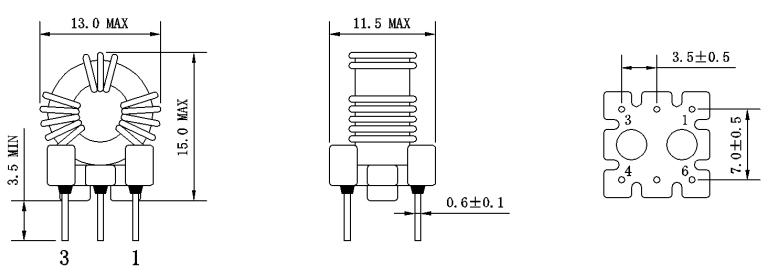

1. Dimensions:mm
2 .Schematic:
3. RecommendeLand Pattern: mm
4.Winding STEP:
| WDG | TERMINAL | WIRE | TURNS | REMARKS |
| N1 | 1--6 | TIW-E φ0.40*1P | 5Ts | Close winding |
| N2 | 2--5 | TIW-E φ0.40*1P | 5Ts | Close winding |
| N3 | 3--4 | TIW-E φ0.40*1P | 5Ts | Close winding |
5.Electrical Properties
| NO. | ITEMS | MEASURING POINT | TECHNICAL DATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | L(2--5) | 23mH±25% | 10KHz,0.3V,25℃ | HP4284A |
| 2 | IR | COIL～CORE | 100Mohm MIN | DC500V | MF2511 |
| 3 | turns Ratio | N1:N2:N3 | 5:5:5 | 20KHz,1V,25℃ | TH3250 |
| 4 | DCR | R(1--6) | 20mΩ/MAX | 25℃ | CH502 |
| R(2--5) | 20mΩ/MAX | 25℃ | CH502 | ||
| R(3--4) | 20mΩ/MAX | 25℃ | CH502 | ||
| 5 | Insulation Test Voltage | COIL=>CORE | 1.5KV/AC | 5mA 3S | CJ2670 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C
