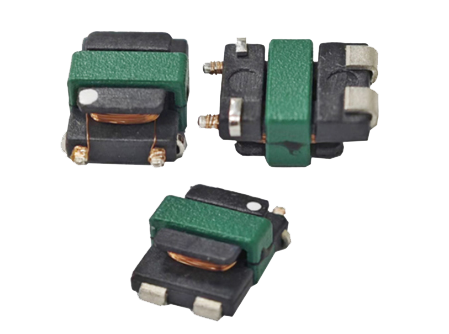

- AEC-Q200 Grade 1 qualified (–40°C to +125°C ambient)
- Small surface mount current sensors
- Sensed current up to 7 A; Frequency range up to 1 MHz Very
- low primary DC resistance
- 1500 VDC, one minute isolation (hipot) between windings
- Can also be used in 48 V vehicle electrical systems
- AEC-Q200 Grade 1 qualified (–40°C to +125°C ambient)
- Small surface mount current sensors
- Sensed current up to 20 A; Frequency range up to 1 MHz
- Very low primary DC resistance
- 1500 Vrms, one minute isolation (hipot) between windings
- Can also be used in 48 V vehicle electrical systems

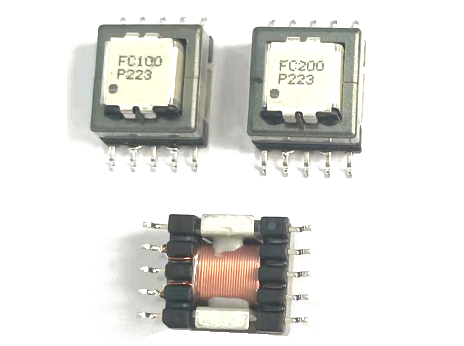

- Height: 5.5mm Max
- It is used as DC current transformer for various
- electronic device detection
- Current Rating: up to 20A
- Frequency Range: 100 kHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C

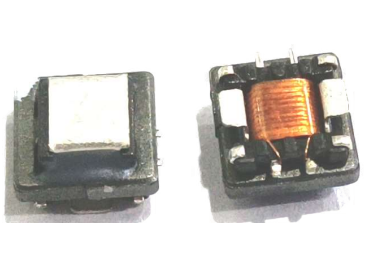

- Height: 3.8mm Max
- Footprint: 7.0mm x 6.8mm
- Current Rating: up to 30A
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- It is used as DC current transformer for various electronic device detection.

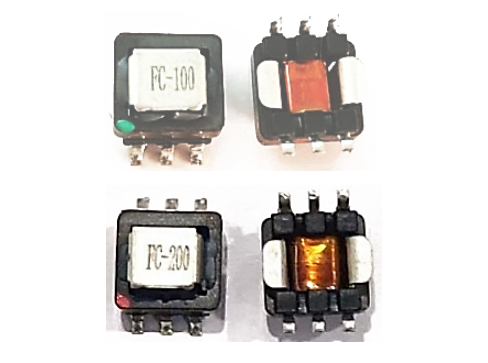

- Height: 7.0mm Max
- Current Rating: up to 30A
- Frequency Range: 100 kHz, 0.1 Vrms
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C

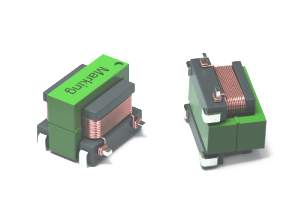

- Height: 14.0mm Max
- Current Rating: up to 40A
- Insulation: Reinforced, 6.5mm creepage ，Isolation AC3750Vrms UL
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- It is used as DC current transformer for various
- electronic device detection

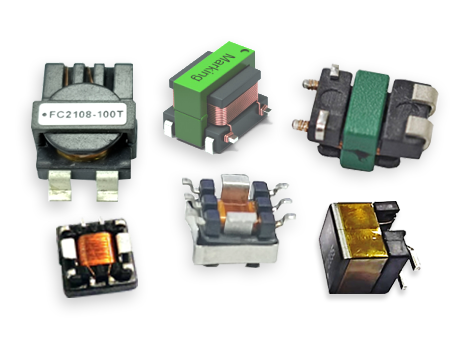

- Current Rating: up to 50A
- Footprint: 12.8mm x 20.5mm x 7.5mm Max
- Frequency Range: 20kHz to 1MHz
- Insulation: Reinforced, 10mm creepage and clearance
- Hipot Isolation: 5000 Vdc, 6 sec
- Voltage Rating: Up to 1000 Vpk
- Operating temperature: –40℃ to +130℃
- Sensed current up to 47 A; Designed for frequency range
- up to 1 MHz and above. Very low primary DC resistance
- 500 Vrms, one minute isolation (hipot) between windings
- Core material Ferrite
- Terminations RoHS compliant tin-silver over tin over nickel over
- phos bronze (pins 2-4); RoHS compliant matte tin over nickel over
- copper (pins 11-12)
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
