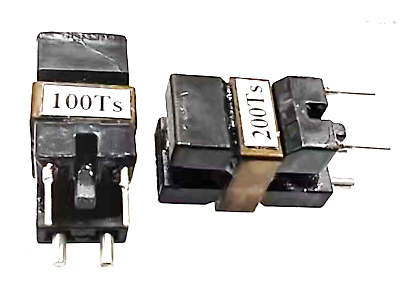

- Height: 9.0mm Max
- Current Rating: up to 25A
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- Height: 21.0mm Max
- Current Rating: up to 35A
- Low Primary DCR version
- Isolation: AC3750Vrms UL
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C

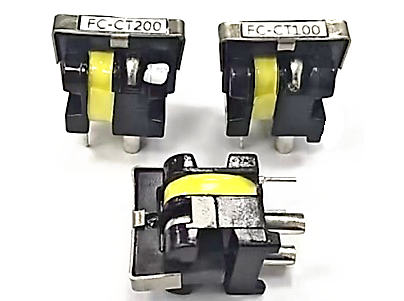

- Sensed current up to 40 A; Designed for frequency range
- up to 1 KHz and above. Very low primary DC resistance
- 2500 Vrms, one minute isolation (hipot) between windings
- Core material Ferrite
- Operating temperature: –40 °C to +125°C
- Application in DC circuit current sampling

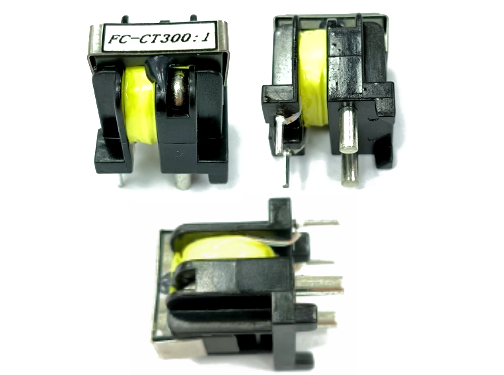

- Sensed current up to 50 A; Designed for frequency range
- up to 1 MHz and above. Very low primary DC resistance
- 2500 Vrms, one minute isolation (hipot) between windings
- Core material Ferrite
- Operating temperature: –40 °C to +125°C / +150 °C / +155°C
- Recommended solder profile: Reflow

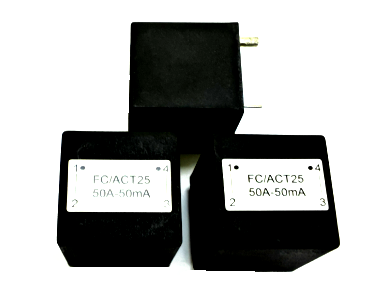

- Height: 27mm Max
- Current Rating: up to 50A ；Turn ratio：1000T:1T
- Hi-pot: AC3000Vrms . Rated voltage：AC220V/50-60HZ
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- It is used as AC current transformer for variouselectronic device detection
