Planar transformer Components

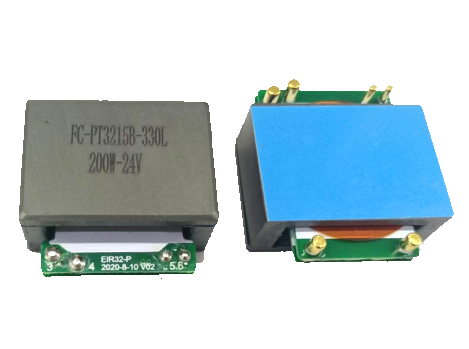

SMD Planar power PCB Transformer FC-PT3215B-330L200W
High power density PCB design.
Transformer efficiency 95-98%.
Support design customization.
Design of DC-DC Application Circuit Flyback circuit.
Operating temperature: –40 °C to +125 °C
View More Details
SMD Drive Transformers FC-TCH1065-230Y-T
turns Ratio: 5:4:5
Rated Current: 1.5A
Insulation Test Voltage: 1.5VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-TCH1065-360Y-T
turns Ratio: 5:5:5
Rated Current: 1.5A
Insulation Test Voltage: 1.5VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-TCH1065-730Y-T
turns Ratio: 4:7:4
Rated Current: 1.5A
Insulation Test Voltage: 1.5VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR107-110T-1
turns Ratio: 1:1:1
Rated Current: 820mA
Insulation Test Voltage: 3KVAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR109-401T-1
turns Ratio: 17:25:25
Rated Current: 320mA
Insulation Test Voltage: 2500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-131T-1
turns Ratio: 12:5:5
Rated Current: 780mA/640mA
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-241T-1
turns Ratio: 1:2:2
Rated Current: 640mA/390mA
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-330T-1
turns Ratio: 2:3
Rated Current: 320mA
Insulation Test Voltage: 3KVAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-420T-1
turns Ratio: 1:2:2
Rated Current: 1A/500mA
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-420T-2
turns Ratio: 1:2:2
Rated Current: 640mA/260mA
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-500T-1
turns Ratio: 4:9:9
Rated Current: 320mA
Insulation Test Voltage: 2500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-580T-1
turns Ratio: 3:8:8
Rated Current: 320mA
Insulation Test Voltage: 3.0KVAC/500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-800T-1
turns Ratio: 11:15:15
Rated Current: 500mA
Insulation Test Voltage: 2000VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-950T-1
turns Ratio: 12:5:5
Rated Current: 1A
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1010-950T-2
turns Ratio: 2:1:1
Rated Current: 1A
Insulation Test Voltage: 500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1011-151T-1
turns Ratio: 15:22:22
Rated Current: 320mA
Insulation Test Voltage: 2500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1011-151T-2
turns Ratio: 15:17:17
Rated Current: 320mA
Insulation Test Voltage: 2500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1011-500T-1
turns Ratio: 4:9:9
Rated Current: 640mA/320mA
Insulation Test Voltage: 1500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1011-630T-1
turns Ratio: 5:9:9
Rated Current: 410mA/320mA
Insulation Test Voltage: 1500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1210-131T-1
turns Ratio: 1:2:2
Rated Current: 640mA/320mA
Insulation Test Voltage: 1250VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-STR1311-191T-1
turns Ratio: 13:11:11
Rated Current:320mA
Insulation Test Voltage: 2500VAC
Application: Drive isolation circuit
Operating temperature: –40 ℃ to +125 ℃
View More Details
SMD Drive Transformers FC-DT8010-101-T
1. turns Ratio: 7:9:9:7
2. Rated Current: 320mA
3. Insulation Test Voltage: 1500VAC
4. Application: Drive isolation circuit
5. Operating temperature: –40 ℃ to +125 ℃
View More Details

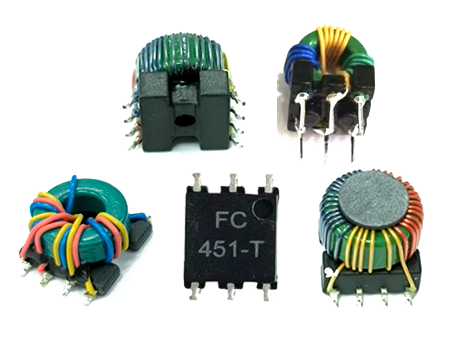

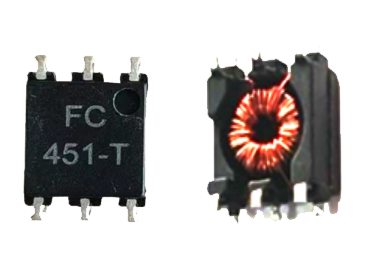

SMD Drive Transformers FC-SMT1036-451-T
Small size
Inductance range: 0.45mH
turns Ratio: 1:1
Rated Current: 0.5A
Insulation Test Voltage: 1.5KVDC
Operating temperature: –40 ℃ to +125 ℃
View More Details

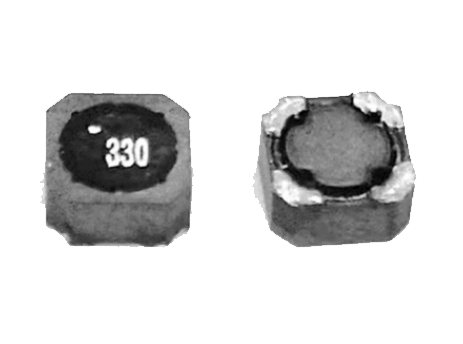

SMD Transformers for Flyback Applications FC-SLF6030 –330
Flyback transformers
Coupled inductors in SEPIC applications
Common mode filter chokes.
View More Details
