Current Compensated Ring Core Double Chokes LSFW-Series LSFW2012- 4532-Series

Current Compensated Ring Core Double Chokes LSFW-Series LSFW2012- 4532-Series

  • SFW2012 realizes small size and low profile
  • High common mode impedance at high suppressionperformance
  • Suitable for differential signal line likeUSB0,IEEE 1394 and LVDS
  • Lead is not contained in the product
    • Applications:
  • Common mose noise suppression of signal lines in high speed and high density digital equipment such as personal computers and peripherals
  • Ideal for use as common-mode chokes forUSB1USB0/IEEE1394 interface

View More Details
SMD Common Mode Line Filter FC-SLF0502 –Series

SMD Common Mode Line Filter FC-SLF0502 –Series

  • Insulation Resistance 10MΩ min
  • Frequency Range: 100 kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details
SMD Common Mode Line Filter FC-SLF0503 –Series

SMD Common Mode Line Filter FC-SLF0503 –Series

  • High curren capability up to300mA
  • Frequency Range: 10 kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details
SMD Common Mode Line Filter FC-SLF0504 –Series

SMD Common Mode Line Filter FC-SLF0504 –Series

  • Insulation Resistance 10MΩ min
  • Frequency Range: 100kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details

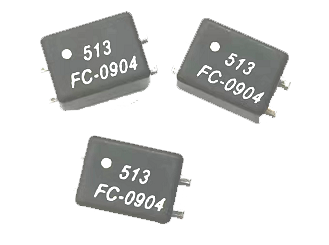

MD Common Mode Line Filter FC-SLF0904 –Series

MD Common Mode Line Filter FC-SLF0904 –Series

  • Small size
  • Frequency Range: 1MHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details
SMD Common Mode Line Filter FC-SLF0905 –Series

SMD Common Mode Line Filter FC-SLF0905 –Series

  • High Impedance up to 1500 Ω
  • Frequency Range: 1MHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details
SMD Common Mode Line Filter FC-SLF1050 –Series

SMD Common Mode Line Filter FC-SLF1050 –Series

  • Low profile,only 5.3max
  • High Impedance up to: 1000Ω
  • Current Capabilit up to 5.0A
  • Operating temperature : –40°C to +125°C
  • Rated voltage 80 Vdc / 42 Vac

View More Details
SMD Common Mode Line Filter FC-SLF1065 –Series

SMD Common Mode Line Filter FC-SLF1065 –Series

  • High Impedance up to 13000 Ω
  • High current up to2500mA
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details
Current Compensated Ring Core Double Chokes LCM4520-LCM1513-Series

Current Compensated Ring Core Double Chokes LCM4520-LCM1513-Series

  • LCMrealizes big size and Hight current
  • High Impedance and Excellent Frequency Characteristic.
  • Self Electromagnetic Shielding.
  • Low Magnetic Flux Leakage
  • Used for power line noise suppression for any electronic devices.
  • Used to counter adapter/battery line noise for relatively large electronic
  • devices such as notebook PCs, stand-alone word processors,etc.

View More Details
Coupled common-mode inductor FC-SLF1008 –Series

Coupled common-mode inductor FC-SLF1008 –Series

  • High performance (Isat) realized by metal dust core
  • Low loss realized with low DCR
  • Compliance with RoHS and Halogen Free
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C

View More Details

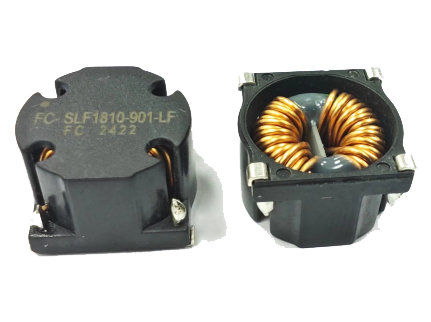

Common Mode Power Line Choke FC-SLF1810-901-LF

Common Mode Power Line Choke FC-SLF1810-901-LF

  • SMD power line choke
  • Compact size
  • Toroidal core with sector winding
  • Insulation Test Voltage: 500VAC
  • Rated Current: 6.5A △T≦45℃(Does not include room temperature)
  • High attenuation of common mode interferences in low and middle frequency range
  • Recommended solder profile: Reflow
  • Operating temperature: –40 ℃ to +125 ℃

View More Details

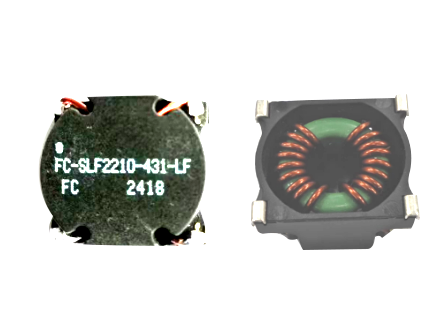

Common Mode Power Line Choke FC-SLF2210-431-LF

Common Mode Power Line Choke FC-SLF2210-431-LF

  • SMD power line choke
  • Compact size
  • Toroidal core with sector winding
  • Insulation Test Voltage: 800VDC
  • Rated Current: 15ADC △T≦55℃(Does not include room temperature)
  • High attenuation of common mode interferences in low and middle frequency range
  • Recommended solder profile: Reflow
  • Operating temperature: –40 ℃ to +125 ℃

View More Details
SMD Common Mode Line Filter FC-SLF1410 –Series

SMD Common Mode Line Filter FC-SLF1410 –Series

  • High inductance range
  • High current range
  • Small package
  • Low profile
  • Surface mount technology
  • Wide range of filtering spectrum
  • Climatic category 40/125/21
  • Flammability corresponding to UL 94 V-0

View More Details
Common mode Chokes FC-LCM3225-LCM4532-Series

Common mode Chokes FC-LCM3225-LCM4532-Series

  • FC-LCM common mode impedance at high frequency effectsexcellent noise suppression performance.
  • The common mode choke coils structure enables noiseSuppression without degrading the signal
  • Used for power line noise suppression for any electronic devices.
  • Used to counter adapter/battery line noise for relatively large electronic devices such as notebook PCs, stand-alone word processors,etc.

View More Details
SMD Common Mode Line Filter FC-SDLF7345 –Series

SMD Common Mode Line Filter FC-SDLF7345 –Series

  • Enormous common mode impedance Z
  • Small dimensions
  • 1:1 turns ratio
  • High current ratings
  • Ambient temperature –40°C to +
  • Storage temperature Component:
    • Applications
  • Suppression of common mode noise
  • Power supply system
  • Data lines

View More Details
SMD Common Mode Line Filter -FC-SDLF1270-1210 –Series

SMD Common Mode Line Filter -FC-SDLF1270-1210 –Series

  • Enormous common mode impedance Z
  • Small dimensions
  • 1:1 turns ratio
  • High current ratings
  • Ambient temperature –40°C to+85°C
  • Storage temperature Component:-40°C to+125°C
  • Suppression of common mode noise
  • Power supply system
  • Data lines

View More Details
