- Industrial computers
- High current switching regulators
- DC/DC converter
- Filter
- Magnetically shielded
- Flat wire coil for low losses at high frequency
- Low stray field
- Operating temperature: –40

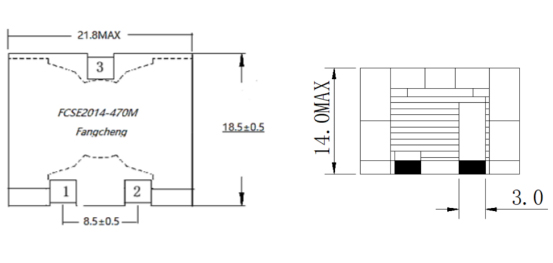

1. Dimensions: [mm]
2. Recommended Land Pattern: mm
3.Schematic:
4.Temperatue rise current curven

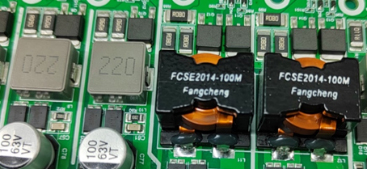

5.Customer APPlication:
6.ELECTRIC CHARACTERICS
| Order Code | L(μH) | DCR（mΩ) | Irms | Isat | |
| ±20% | typ | max | A | A | |
| FC-SE2014-100M | 10.0 | 5.35 | 6.35 | 17.0 | 21.0 |
| FC-SE2014- 150M | 15.0 | 5.35 | 6.35 | 17.0 | 17.0 |
| FC-SE2014-220M | 22.0 | 5.35 | 6.35 | 17.0 | 11.0 |
| FC-SE2014-330M | 33.0 | 5.35 | 6.35 | 17.0 | 8.5 |
| FC-SE2014-470M | 47.0 | 5.35 | 6.35 | 17.0 | 6.0 |
Remark:
(1)Inductance: 100KHz 0.1V
(2)Tolerance of inductance:±20%
(3)Isat: The value of curret indicates that inductance drops 30%( Typcial ) from its initial value
(4)Irms:The value of current indicates that the temperature of the coil is increase 40℃ (Typical)
(5)Test condition: Ta= 25℃

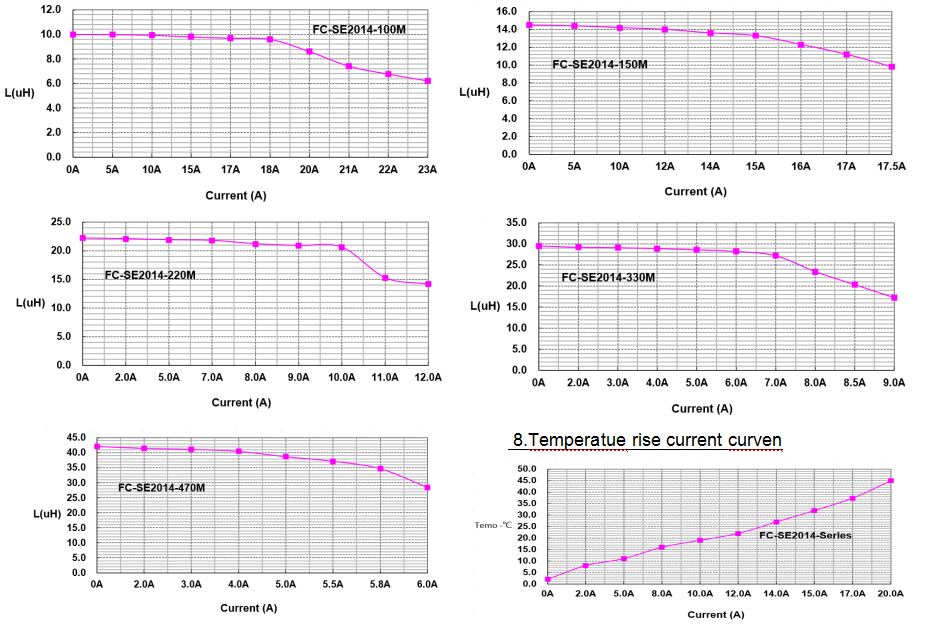

7. Inductance VS Current Curve:
