FC-DR2W0506-2023-Series Lead Type Fixed Inductors

Small plug inductors.
Superior consumability and electricat characteristics.
Large current,small impedance,small distributed capacitance and high self-resonance frequency.
Protect with PVC or UL heat shrinkable casing.

Download PDF

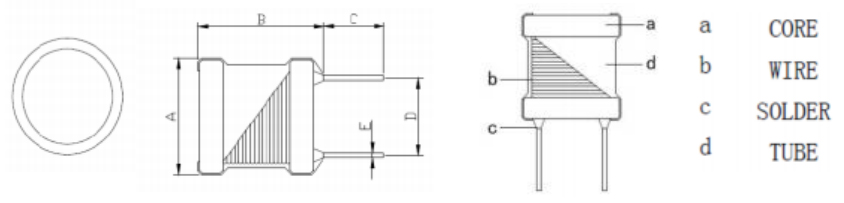

1.shapes&dimensions(mm)

FC-DR2W0506-2023-Series Lead Type Fixed Inductors

TYPE	A	B	C	D	E
FC-DR2W0506	5.00±0.50	6.50+1.00/-0.50	3.50±0.50	2.50±0.50	0.65REF
FC-DR2W0610	6.70±0.50	10.00±1.00	3.50±0.50	3.00±0.50
FC-DR2W0710	6.70±0.50	10.00±1.00	3.50±0.50	5.00±0.30
FC-DR2W0810	8.70±0.50	10.00±1.00	3.50±0.50	5.00±0.50
FC-DR2W0812	8.70±0.50	12.00±1.00	3.50±0.50	5.00±0.50
FC-DR2W0912	8.70±0.50	12.00±1.00	3.50±0.50	6.00±0.50
FC-DR2W1010	12.00MAX	13.50MAX	3.80±0.50	6.00±0.50
FC-DR2W1112	11.70±0.80	12.00±1.00	3.80±0.50	7.50±0.50
FC-DR2W1620	16.00MAX	20.00MAX	5.00±0.50	10.00±0.50
FC-DR2W1823	18.00MAX	23.00MAX	5.00±0.50	10.00±0.50
FC-DR2W2023	20.00MAX	23.00MAX	5.00±0.50	10.00±0.50

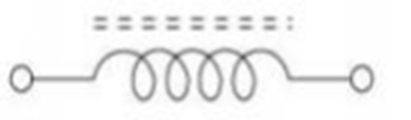

2.SCHEMATIC：

2.1 Storage temp range:-40℃----+85℃ .
2.2 operating temp range:-40℃----+125℃ .

3. FC-DR2W0506-Series SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0506-1R0M	1.00	1030.00	0.10
FC-DR2W0506-1R2M	1.20	980.00	0.15
FC-DR2W0506-1R5M	1.50	920.00	0.20
FC-DR2W0506-1R8M	1.80	880.00	0.22
FC-DR2W0506-2R2M	2.20	830.00	0.24
FC-DR2W0506-2R7M	2.70	790.00	0.27
FC-DR2W0506-3R3M	3.30	750.00	0.30
FC-DR2W0506-3R9M	3.90	720.00	0.30
FC-DR2W0506-4R7M	4.70	670.00	0.35
FC-DR2W0506-5R6K	5.60	640.00	0.35
FC-DR2W0506-6R8K	6.80	620.00	0.40
FC-DR2W0506-8R2K	8.20	590.0	0.40
FC-DR2W0506-100K	10.00	550.00	0.45
FC-DR2W0506-120K	12.00	530.00	0.50
FC-DR2W0506-150K	15.00	500.00	0.55
FC-DR2W0506-180K	18.00	480.00	0.60
FC-DR2W0506-220K	22.00	460.00	0.65
FC-DR2W0506-270K	27.00	430.00	0.75
FC-DR2W0506-330K	33.00	410.00	0.85
FC-DR2W0506-390K	39.00	390.00	0.90
FC-DR2W0506-470K	47.00	370.00	1.00
FC-DR2W0506-560K	56.00	350.00	1.20
FC-DR2W0506-680K	68.00	340.00	1.30
FC-DR2W0506-820K	82.00	320.00	1.50
FC-DR2W0506-101K	100.00	305.00	1.70
FC-DR2W0506-121K	120.00	290.00	1.90
FC-DR2W0506-151K	150.00	275.00	2.10
FC-DR2W0506-181K	180.00	235.00	2.30
FC-DR2W0506-221K	220.00	200.00	2.50
FC-DR2W0506-271K	270.00	180.00	2.75
FC-DR2W0506-331K	330.00	165.00	4.68
FC-DR2W0506-391K	390.00	150.00	6.00
FC-DR2W0506-471K	470.00	140.00	6.50
FC-DR2W0506-561K	560.00	135.00	8.50
FC-DR2W0506-681K	680.00	125.00	9.00
FC-DR2W0506-821K	820.00	120.00	9.60
FC-DR2W0506-102K	1000.00	100.00	11.50

Note:
Test frequency:L:100KHz/0.25V.
All test data referenced to 25℃ ambient.
Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃. Saturation Current(last)will cause LO to drop 10% typical.
Special inquiries besides the above common used types can be met on your requirement.

4. FC-DR2W0610-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0610-100K	10.00	1.10	70.00
FC-DR2W0610-120K	12.00	1.00	80.00
FC-DR2W0610-150K	15.00	0.90	90.00
FC-DR2W0610-180K	18.00	0.75	100.00
FC-DR2W0610-220K	22.00	0.70	120.00
FC-DR2W0610-270K	27.00	0.65	130.00
FC-DR2W0610-330K	33.00	0.60	150.00
FC-DR2W0610-390K	39.00	0.55	160.00
FC-DR2W0610-470K	47.00	0.45	180.00
FC-DR2W0610-560K	56.00	0.40	210.00
FC-DR2W0610-680K	68.00	0.36	240.00
FC-DR2W0610-820K	82.00	0.34	350.00
FC-DR2W0610-101K	100.00	0.32	400.00
FC-DR2W0610-121K	120.00	0.30	450.00
FC-DR2W0610-151K	150.00	0.28	500.00
FC-DR2W0610-181K	180.00	0.26	750.00
FC-DR2W0610-221K	220.00	0.24	900.00
FC-DR2W0610-271K	270.00	0.22	1000.00
FC-DR2W0610-331K	330.00	0.20	1100.00
FC-DR2W0610-391K	390.00	0.18	1200.00
FC-DR2W0610-471K	470.00	0.16	1500.00
FC-DR2W0610-561K	560.00	0.15	1800.00

Note:
1. Test frequency:L:100KHz/0.25V.
2. All test data referenced to 25℃ ambient.
3. Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
4. Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃.
5. Saturation Current(last)will cause LO to drop 10% typical.
6. Special inquiries besides the above common used types can be met on your requirement.

5. FC-DR2W0710-SeriesSPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0710-470K	47.00	450.00	0.40
FC-DR2W0710-560K	56.00	400.00	0.45
FC-DR2W0710-680K	68.00	360.00	0.50
FC-DR2W0710-820K	82.00	340.00	0.50
FC-DR2W0710-101K	100.00	320.00	0.60
FC-DR2W0710-121K	120.00	300.00	0.70
FC-DR2W0710-151K	150.00	280.00	0.90
FC-DR2W0710-181K	180.00	260.00	1.00
FC-DR2W0710-221K	220.00	240.00	1.20
FC-DR2W0710-271L	270.00	220.00	1.40
FC-DR2W0710-331K	330.00	200.00	1.60
FC-DR2W0710-391K	390.00	180.00	1.80
FC-DR2W0710-471K	470.00	160.00	2.00
FC-DR2W0710-561K	560.00	150.00	2.50
FC-DR2W0710-681K	680.00	140.00	2.90
FC-DR2W0710-821K	820.00	130.00	3.10
FC-DR2W0710-102K	1000.00	120.00	3.90
FC-DR2W0710-122K	1200.00	110.00	4.40
FC-DR2W0710-152K	1500.00	100.00	6.00
FC-DR2W0710-182K	1800.00	90.00	7.00
FC-DR2W0710-222K	2200.00	80.00	8.00
FC-DR2W0710-272K	2700.00	70.00	9.00
FC-DR2W0710-332K	3300.00	60.00	12.00
FC-DR2W0710-392K	3900.00	55.00	14.00
FC-DR2W0710-472K	4700.00	50.00	16.00
FC-DR2W0710-562K	5600.00	45.00	18.00
FC-DR2W0710-682K	6800.00	40.00	24.00
FC-DR2W0710-822K	8200.00	36.00	30.00
FC-DR2W0710-103K	10000.00	34.00	39.00
FC-DR2W0710-123K	12000.00	32.00	46.00
FC-DR2W0710-153K	15000.00	30.00	54.00
FC-DR2W0710-183K	18000.00	27.00	76.00
FC-DR2W0710-223K	22000.00	25.00	92.00
FC-DR2W0710-273K	27000.00	22.00	102.00
FC-DR2W0710-333K	33000.00	20.00	140.00
FC-DR2W0710-393K	39000.00	18.00	150.00
FC-DR2W0710-473K	47000.00	16.00	162.00

6. FC-DR2W0810-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0810-1R5M	1.50	5.40	8.00
FC-DR2W0810-2R2M	2.20	4.50	10.00
FC-DR2W0810-3R3M	3.30	3.60	18.00
FC-DR2W0810-4R7M	4.70	3.10	22.00
FC-DR2W0810-6R8M	6.80	2.50	28.00
FC-DR2W0810-100K	10.00	2.10	43.00
FC-DR2W0810-150K	15.00	1.70	56.00
FC-DR2W0810-220K	22.00	1.40	86.00
FC-DR2W0810-330K	33.00	1.10	140.00
FC-DR2W0810-470K	47.00	0.96	170.00
FC-DR2W0810-680K	68.00	0.79	280.00
FC-DR2W0810-101K	100.00	0.66	330.00
FC-DR2W0810-151K	150.00	0.53	560.00
FC-DR2W0810-221K	220.00	0.44	720.00
FC-DR2W0810-331K	330.00	0.36	1100.00
FC-DR2W0810-471K	470.00	0.30	1700.00
FC-DR2W0810-681K	680.00	0.25	2300.00
FC-DR2W0810-102K	1000.00	0.20	4300.00

7. FC-DR2W0812-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0812-3R3M	3.30	3.60	27.00
FC-DR2W0812-4R7M	4.70	3.20	33.00
FC-DR2W0812-6R8M	6.80	3.00	39.00
FC-DR2W0812-100K	10.00	2.70	48.00
FC-DR2W0812-120K	12.00	2.50	55.00
FC-DR2W0812-150K	15.00	2.40	60.00
FC-DR2W0812-180K	18.00	2.30	65.00
FC-DR2W0812-220K	22.00	1.90	90.00
FC-DR2W0812-270K	27.00	1.80	110.00
FC-DR2W0812-330K	33.00	1.70	120.00
FC-DR2W0812-390K	39.00	1.60	130.00
FC-DR2W0812-470K	47.00	1.50	140.00
FC-DR2W0812-560K	56.00	1.30	200.00
FC-DR2W0812-680K	68.00	1.20	210.00
FC-DR2W0812-820K	82.00	1.10	230.00
FC-DR2W0812-101K	100.00	1.00	280.00
FC-DR2W0812-121K	120.00	0.90	320.00
FC-DR2W0812-151K	150.00	0.80	370.00
FC-DR2W0812-181K	180.00	0.75	540.00
FC-DR2W0812-221K	220.00	0.70	600.00
FC-DR2W0812-271K	270.00	0.65	680.00
FC-DR2W0812-331K	330.00	0.60	760.00
FC-DR2W0812-391K	390.00	0.55	850.00
FC-DR2W0812-471K	470.00	0.50	1300.00
FC-DR2W0812-561K	560.00	0.45	1400.00
FC-DR2W0812-681K	680.00	0.40	1600.00
FC-DR2W0812-821K	820.00	0.35	1800.00
FC-DR2W0812-102K	1000.00	0.30	2100.00

Note:
1. Test frequency:L:100KHz/0.25V.
2. All test data referenced to 25℃ ambient.
3. Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
4. Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃.
5. Saturation Current(last)will cause L0 to drop 10% typical.
6. Special inquiries besides the above common used types can be met on your requirement.

8. FC-DR2W0912-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W0912-101K	100.00	350.00	0.85
FC-DR2W0912-121K	120.00	330.00	0.95
FC-DR2W0912-151K	150.00	310.00	1.05
FC-DR2W0912-181K	180.00	300.00	1.15
FC-DR2W0912-221K	220.00	280.00	1.30
FC-DR2W0912-271K	270.00	260.00	1.50
FC-DR2W0912-331K	330.00	240.00	1.70
FC-DR2W0912-391K	390.00	230.00	1.85
FC-DR2W0912-471K	470.00	210.00	2.30
FC-DR2W0912-561K	560.00	200.00	2.55
FC-DR2W0912-681K	680.00	190.00	2.85
FC-DR2W0912-821K	820.00	180.00	3.10
FC-DR2W0912-102K	1000.00	160.00	4.10
FC-DR2W0912-122K	1200.00	150.00	4.70
FC-DR2W0912-152K	1500.00	130.00	5.80
FC-DR2W0912-182K	1800.00	115.00	7.40
FC-DR2W0912-222K	2200.00	110.00	8.40
FC-DR2W0912-272K	2700.00	95.00	9.60
FC-DR2W0912-332K	3300.00	80.00	10.50
FC-DR2W0912-392K	3900.00	70.00	12.00
FC-DR2W0912-472K	4700.00	65.00	14.00
FC-DR2W0912-562K	5600.00	60.00	16.00
FC-DR2W0912-682K	6800.00	55.00	18.00
FC-DR2W0912-822K	8200.00	50.00	24.50
FC-DR2W0912-103K	10000.00	45.00	32.00
FC-DR2W0912-123K	12000.00	40.00	36.00
FC-DR2W0912-153K	15000.00	35.00	48.00
FC-DR2W0912-183K	18000.00	30.00	52.00
FC-DR2W0912-223K	22000.00	28.00	58.00
FC-DR2W0912-273K	27000.00	26.00	62.00
FC-DR2W0912-333K	33000.00	24.00	90.00
FC-DR2W0912-393K	39000.00	22.00	100.00
FC-DR2W0912-473K	47000.00	20.00	150.00
FC-DR2W0912-563K	56000.00	18.00	200.00
FC-DR2W0912-683K	68000.00	16.00	220.00
FC-DR2W0912-823K	82000.00	14.00	240.00

Note:
1. Test frequency:L:100KHz/0.25V.
2. All test data referenced to 25℃ ambient.
3. Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
4. Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃.
5. Saturation Current(last)will cause L0 to drop 10% typical.
6. Special inquiries besides the above common used types can be met on your requirement.

9. FC-DR2W1010-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W1010-182k	1800.00	0.30	2300.00

10. FC-DR2W1112-Serie-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W1112-3R3M	3.30	5.60	8.00
FC-DR2W1112-4R7M	4.70	4.70	9.00
FC-DR2W1112-6R8M	6.80	3.90	12.00
FC-DR2W1112-100M	10.00	3.20	15.00
FC-DR2W1112-150M	15.00	2.60	19.00
FC-DR2W1112-220K	22.00	2.20	26.00
FC-DR2W1112-330K	33.00	1.80	45.00
FC-DR2W1112-470K	47.00	1.50	56.00
FC-DR2W1112-680K	68.00	1.20	92.00
FC-DR2W1112-101K	100.00	1.00	120.00
FC-DR2W1112-151K	150.00	0.82	200.00
FC-DR2W1112-221K	220.00	0.68	250.00
FC-DR2W1112-331K	330.00	0.55	420.00
FC-DR2W1112-471K	470.00	0.46	510.00
FC-DR2W1112-681K	680.00	0.38	790.00
FC-DR2W1112-102K	1000.00	0.31	1300.00
FC-DR2W1112-152K	1500.00	0.25	1700.00
FC-DR2W1112-222K	2200.00	0.21	2900.00
FC-DR2W1112-332K	3300.00	0.17	3700.00
FC-DR2W1112-472K	4700.00	0.14	5600.00
FC-DR2W1112-682K	6800.00	0.12	9400.00
FC-DR2W1112-103K	10000.00	0.10	12000.00
FC-DR2W1112-153K	15000.00	0.08	15000.00

Note：
1. Test frequency:L:100KHz/0.25V.
2. All test data referenced to 25°C ambient.
3. Operation Temperature Range:-20 ℃~+80 ℃(Including Self-Heating).
4. Heat Rated Current(Ims)will cause the coil temperature rise approximately △t of 40℃ .
5. Saturation Current(last) will cause L0 to drop 10% typical.
6. Special inquiries besides the above common used types can be met on your requirement.

11. FC-DR2W1620-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W1620-100M	10.00	5.00	24.00
FC-DR2W1620-250K	25.00	4.00	40.00
FC-DR2W1620-500K	50.00	3.00	60.00
FC-DR2W1620-101K	100.00	2.00	90.00
FC-DR2W1620-251K	250.00	1.50	180.00
FC-DR2W1620-501K	500.00	1.00	400.00
FC-DR2W1620-102K	1000.00	0.70	800.00

12. FC-DR2W1823-SeriesSPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W1823-100M	10.00	8.00	9.00
FC-DR2W1823-250K	25.00	6.00	22.00
FC-DR2W1823-500K	50.00	4.00	36.00
FC-DR2W1823-101K	100.00	3.00	90.00
FC-DR2W1823-251K	250.00	2.00	150.00
FC-DR2W1823-501K	500.00	1.20	300.00
FC-DR2W1823-102K	1000.00	1.00	600.00

13. FC-DR2W2023-SeriesSPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat(mA)(Max)	DCR(Ω)(Max)
FC-DR2W2023-100M	10.00	10.00	8.00
FC-DR2W2023-500K	50.00	5.00	32.00
FC-DR2W2023-101K	100.00	4.00	60.00
FC-DR2W2023-251K	250.00	2.50	140.00
FC-DR2W2023-501K	500.00	1.50	280.00
FC-DR2W2023-102K	1000.00	1.20	550.00
FC-DR2W2023-202K	2000.00	0.80	1200.00
