Lead Type Fixed Inductors FC-DR2W0605T-1014T-Series

Radial through-hole inductor
High saturation core material
Non-isolated buck or Buck-Boost Converter like PI LinkSwitch-TN
constant current LED Driver
Utility metering
Filter for power supply

Download PDF

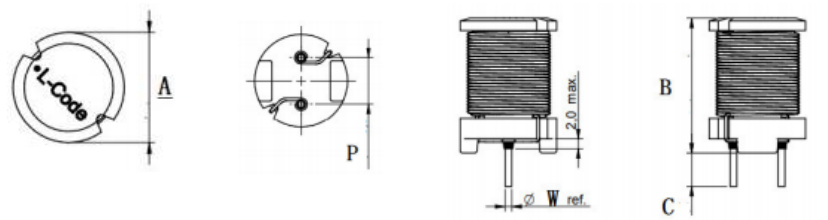

1.shapes&dimensions(mm)

Lead Type Fixed Inductors FC-DR2W0605T-1014T-Series

TYPE	A	B	C	P	W
FC-DR2W0605T	6.00±0.50	5.00MAX	3.30±0.50	4.00±0.50	0.50±1.10
FC-DR2W0606T	6.00±0.50	6.50MAX	3.30±0.50	4.00±0.50	0.50±0.10
FC-DR2W0805T	7.80±0.50	5.50MAX	3.30±0.50	5.00±0.50	0.65±0.10
FC-DR2W0807T	7.80±0.50	7.50MAX	5.00±1.00	5.00±0.50	0.65±0.10
FC-DR2W0809T	7.80±0.50	9.50MAX	4.00±1.00	5.00±0.50	0.65±0.10
FC-DR2W1006T	10.00±0.50	6.00±0.50	3.00±0.50	6.40±0.50	0.65±0.10
FC-DR2W1008T	10.00±0.50	8.00±0.50	3.00±0.50	6.40±0.50	0.65±0.10
FC-DR2W1010T	10.00±0.50	10.00±0.50	3.30±0.50	6.40±0.50	0.65±0.10
FC-DR2W1012T	10.00±0.50	12.00±0.50	3.30±0.60	5.00±0.60	0.65±0.10
FC-DR2W1014T	10.00±0.50	14.10MAX	3.30±0.50	5.00±0.50	0.65±0.10

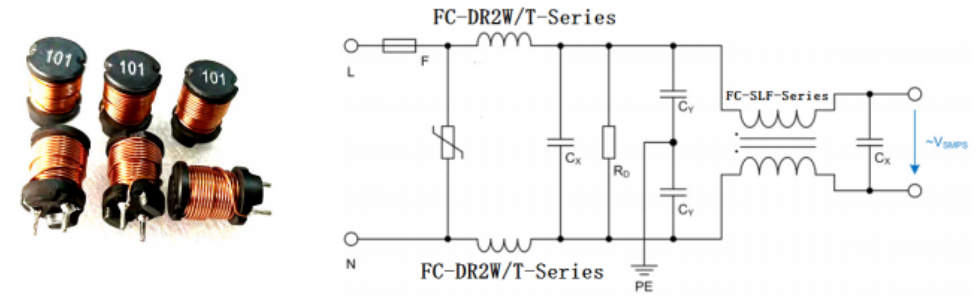

2.schematic exampel

3.FC-DR2W0605T-Series SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W0605T-220K	22.00	0.90	180.00
FC-DR2W0605T-270K	27.00	0.81	210.00
FC-DR2W0605T-330K	33.00	0.74	270.00
FC-DR2W0605T-390K	39.00	0.68	290.00
FC-DR2W0605T-470K	47.00	0.62	340.00
FC-DR2W0605T-560K	56.00	0.57	420.00
FC-DR2W0605T-680K	68.00	0.51	480.00
FC-DR2W0605T-820K	82.00	0.47	550.00
FC-DR2W0605T-101K	100.00	0.42	680.00
FC-DR2W0605T-121K	120.00	0.39	770.00
FC-DR2W0605T-151K	150.00	0.35	950.00
FC-DR2W0605T-181K	180.00	0.32	1150.00
FC-DR2W0605T-221K	220.00	0.29	1300.00
FC-DR2W0605T-271K	270.00	0.26	1550.00
FC-DR2W0605T-331K	330.00	0.23	2180.00
FC-DR2W0605T-391K	391.00	0.21	2470.00
FC-DR2W0605T-471K	470.00	0.20	2920.00
FC-DR2W0605T-651K	560.00	0.18	3970.00
FC-DR2W0605T-681K	680.00	0.16	4570.00
FC-DR2W0605T-821K	820.00	0.15	5280.00
FC-DR2W0605T-102K	1000.00	0.13	7060.00

Note:
Test frequency:L:100KHz/0.25V.
All test data referenced to 25℃ ambient.
Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃. Saturation Current(last)will cause LO to drop 10% typical.
Special inquiries besides the above common used types can be met on your requirement.

4.FC-DR2W0606-Series SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W0606T-220K	22.00	1.27	110.00
FC-DR2W0606T-270K	27.00	1.14	140.00
FC-DR2W0606T-330K	33.00	1.03	170.00
FC-DR2W0606T-390K	39.00	0.95	190.00
FC-DR2W0606T-470K	47.00	0.87	230.00
FC-DR2W0606T-560K	56.00	0.80	260.00
FC-DR2W0606T-680K	68.00	0.72	280.00
FC-DR2W0606T-820K	82.00	0.66	390.00
FC-DR2W0606T-101K	100.00	0.59	430.00
FC-DR2W0606T-121K	120.00	0.54	540.00
FC-DR2W0606T-151K	150.00	0.48	640.00
FC-DR2W0606T-181K	180.00	0.44	740.00
FC-DR2W0606T-221K	220.00	0.40	960.00
FC-DR2W0606T-271K	270.00	0.36	1120.00
FC-DR2W0606T-331K	330.00	0.33	1480.00
FC-DR2W0606T-391K	390.00	0.30	1660.00
FC-DR2W0606T-471K	470.00	0.27	1910.00
FC-DR2W0606T-561K	560.00	0.25	2310.00
FC-DR2W0606T-681K	680.00	0.23	2670.00
FC-DR2W0606T-821K	820.00	0.21	3100.00
FC-DR2W0606T-102K	1000.00	0.19	4450.00

Note:
1. Test frequency:L:100KHz/0.25V.
2. All test data referenced to 25℃ ambient.
3. Operation Temperature Range:-20℃~+80℃(Including Self-Heating).
4. Heat Rated Current(Irms)will cause the coil temperature rise approximately △t of 40℃.
5. Saturation Current(last)will cause LO to drop 10% typical.
6. Special inquiries besides the above common used types can be met on your requirement.

5.FC-DR2W0805T-Series SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W0805T-100M	10.00	2.50	70.00
FC-DR2W0805T-120M	12.00	2.40	80.00
FC-DR2W0805T-150M	15.00	2.10	90.00
FC-DR2W0805T-180M	18.00	2.00	100.00
FC-DR2W0805T-220K	22.00	1.70	120.00
FC-DR2W0805T-270K	27.00	1.60	140.00
FC-DR2W0805T-330K	33.00	1.40	170.00
FC-DR2W0805T-390K	39.00	1.30	210.00
FC-DR2W0805T-470K	47.00	1.20	240.00
FC-DR2W0805T-560K	56.00	1.10	310.00
FC-DR2W0805T-680K	68.00	1.00	340.00
FC-DR2W0805T-820K	82.00	0.93	400.00
FC-DR2W0805T-101K	100.00	0.81	520.00
FC-DR2W0805T-121K	120.00	0.76	590.00
FC-DR2W0805T-151K	150.00	0.67	710.00
FC-DR2W0805T-181K	180.00	0.62	890.00
FC-DR2W0805T-221K	220.00	0.54	1040.00
FC-DR2W0805T-271K	270.00	0.49	1280.00
FC-DR2W0805T-331K	330.00	0.44	1470.00
FC-DR2W0805T-391K	390.00	0.41	1670.00
FC-DR2W0805T-471K	470.00	0.38	1950.00
FC-DR2W0805T-561K	560.00	0.35	2830.00
FC-DR2W0805T-681K	680.00	0.32	3250.00
FC-DR2W0805T-821K	820.00	0.31	3820.00
FC-DR2W0805T-102K	1000.00	0.25	5280.00

6.FC-DR2W0807T-Series SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W0807T-100M	10.00	2.90	50.00
FC-DR2W0807T-120M	12.00	2.50	60.00
FC-DR2W0807T-150K	15.00	2.20	70.00
FC-DR2W0807T-180K	18.00	1.90	80.00
FC-DR2W0807T-220K	22.00	1.80	90.00
FC-DR2W0807T-270K	27.00	1.70	110.00
FC-DR2W0807T-330K	33.00	1.50	130.00
FC-DR2W0807T-390K	39.00	1.30	140.00
FC-DR2W0807T-470K	47.00	1.30	150.00
FC-DR2W0807T-560K	56.00	1.20	180.00
FC-DR2W0807T-680K	68.00	1.10	200.00
FC-DR2W0807T-820K	82.00	1.00	240.00
FC-DR2W0807T-101K	100.00	0.89	280.00
FC-DR2W0807T-121K	120.00	0.81	360.00
FC-DR2W0807T-151K	150.00	0.72	420.00
FC-DR2W0807T-181K	180.00	0.66	570.00
FC-DR2W0807T-221K	220.00	0.57	630.00
FC-DR2W0807T-271K	270.00	0.51	880.00
FC-DR2W0807T-331K	330.00	0.46	1050.00
FC-DR2W0807T-391K	390.00	0.44	1170.00
FC-DR2W0807T-471K	470.00	0.41	1340.00
FC-DR2W0807T-561K	560.00	0.36	1720.00
FC-DR2W0807T-681K	680.00	0.33	1960.00
FC-DR2W0807T-821K	820.00	0.30	2560.00
FC-DR2W0807T-102K	1000.00	0.27	2940.00

7.FC-DR2W0809T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W0809T-100M	10.00	2.60	40.00
FC-DR2W0809T-120M	12.00	2.60	40.00
FC-DR2W0809T-150K	15.00	2.10	50.00
FC-DR2W0809T-180K	18.00	2.00	50.00
FC-DR2W0809T-220K	22.00	1.70	60.00
FC-DR2W0809T-270K	27.00	1.60	60.00
FC-DR2W0809T-330K	33.00	1.40	70.00
FC-DR2W0809T-390K	39.00	1.40	80.00
FC-DR2W0809T-470K	47.00	1.30	100.00
FC-DR2W0809T-560K	56.00	1.20	110.00
FC-DR2W0809T-680K	68.00	1.10	140.00
FC-DR2W0809T-820K	82.00	1.00	160.00
FC-DR2W0809T-101K	100.00	0.90	190.00
FC-DR2W0809T-121K	120.00	0.82	220.00
FC-DR2W0809T-151K	150.00	0.74	270.00
FC-DR2W0809T-181K	180.00	0.71	310.00
FC-DR2W0809T-221K	220.00	0.64	380.00
FC-DR2W0809T-271K	270.00	0.57	530.00
FC-DR2W0809T-331K	330.00	0.51	610.00
FC-DR2W0809T-391K	390.00	0.48	690.00
FC-DR2W0809T-471K	470.00	0.43	890.00
FC-DR2W0809T-561K	560.00	0.40	1010.00
FC-DR2W0809T-681K	680.00	0.35	1180.00
FC-DR2W0809T-821K	820.00	0.32	1570.00
FC-DR2W0809T-102K	1000.00	0.30	1840.00

8.FC-DR2W1006T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W1006T-100M	10.00	3.60	40.00
FC-DR2W1006T-120M	12.00	3.30	44.00
FC-DR2W1006T-150M	15.00	2.90	58.00
FC-DR2W1006T-180M	18.00	2.70	64.00
FC-DR2W1006T-220M	22.00	2.40	88.00
FC-DR2W1006T-270M	27.00	2.20	100.00
FC-DR2W1006T-330K	33.00	2.00	110.00
FC-DR2W1006T-390K	39.00	1.80	140.00
FC-DR2W1006T-470K	47.00	1.70	160.00
FC-DR2W1006T-560K	56.00	1.50	190.00
FC-DR2W1006T-680K	68.00	1.40	220.00
FC-DR2W1006T-820K	82.00	1.30	290.00
FC-DR2W1006T-101K	100.00	1.30	320.00
FC-DR2W1006T-121K	120.00	1.20	380.00
FC-DR2W1006T-151K	150.00	1.00	500.00
FC-DR2W1006T-181K	180.00	0.84	560.00
FC-DR2W1006T-221K	220.00	0.76	780.00
FC-DR2W1006T-271K	270.00	0.69	920.00
FC-DR2W1006T-331K	330.00	0.62	1100.00
FC-DR2W1006T-391K	390.00	0.57	1300.00
FC-DR2W1006T-471K	470.00	0.52	1500.00
FC-DR2W1006T-561K	560.00	0.48	1900.00
FC-DR2W1006T-681K	680.00	0.43	2200.00
FC-DR2W1006T-821K	820.00	0.40	2600.00
FC-DR2W1006T-102K	1000.00	0.36	3200.00

9.FC-DR2W1008T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W1008T-100M	10.00	4.50	27.00
FC-DR2W1008T-120M	12.00	4.10	31.00
FC-DR2W1008T-150M	15.00	3.70	36.00
FC-DR2W1008T-180M	18.00	3.40	49.00
FC-DR2W1008T-220M	22.00	3.10	55.00
FC-DR2W1008T-270M	27.00	2.80	62.00
FC-DR2W1008T-330K	33.00	2.50	79.00
FC-DR2W1008T-390K	39.00	2.30	87.00
FC-DR2W1008T-470K	47.00	2.10	99.00
FC-DR2W1008T-560K	56.00	1.90	130.00
FC-DR2W1008T-680K	68.00	1.70	140.00
FC-DR2W1008T-820K	82.00	1.60	160.00
FC-DR2W1008T-101K	100.00	1.40	210.00
FC-DR2W1008T-121K	120.00	1.30	240.00
FC-DR2W1008T-151K	150.00	1.20	320.00
FC-DR2W1008T-181K	180.00	1.10	350.00
FC-DR2W1008T-221K	220.00	0.96	450.00
FC-DR2W1008T-271K	270.00	0.87	610.00
FC-DR2W1008T-331K	330.00	0.79	690.00
FC-DR2W1008T-391K	390.00	0.72	780.00
FC-DR2W1008T-471K	470.00	0.66	1000.00
FC-DR2W1008T-561K	560.00	0.60	1200.00
FC-DR2W1008T-681K	680.00	0.55	1400.00
FC-DR2W1008T-821K	820.00	0.50	1800.00
FC-DR2W1008T-102K	1000.00	0.45	2100.00

10.FC-DR2W1010T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W1010T-100M	10.00	5.30	22.00
FC-DR2W1010T-120M	12.00	4.90	23.00
FC-DR2W1010T-150M	15.00	4.40	26.00
FC-DR2W1010T-180M	18.00	4.00	33.00
FC-DR2W1010T-220M	22.00	3.60	37.00
FC-DR2W1010T-270M	27.00	3.30	48.00
FC-DR2W1010T-330K	33.00	2.90	55.00
FC-DR2W1010T-390K	39.00	2.70	73.00
FC-DR2W1010T-470K	47.00	2.50	83.00
FC-DR2W1010T-560K	56.00	2.30	92.00
FC-DR2W1010T-680K	68.00	2.10	120.00
FC-DR2W1010T-820K	82.00	1.90	140.00
FC-DR2W1010T-101K	100.00	1.70	160.00
FC-DR2W1010T-121K	120.00	1.50	200.00
FC-DR2W1010T-151K	150.00	1.40	230.00
FC-DR2W1010T-181K	180.00	1.30	310.00
FC-DR2W1010T-221K	220.00	1.10	340.00
FC-DR2W1010T-271K	270.00	1.00	400.00
FC-DR2W1010T-331K	330.00	0.93	520.00
FC-DR2W1010T-391K	390.00	0.86	650.00
FC-DR2W1010T-471K	470.00	0.78	710.00
FC-DR2W1010T-561K	560.00	0.71	1000.00
FC-DR2W1010T-681K	680.00	0.65	1100.00
FC-DR2W1010T-821K	820.00	0.59	1300.00
FC-DR2W1010T-102K	1000.00	0.53	1700.00

11.FC-DR2W1012T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W1012T-100M	10.00	6.70	14.00
FC-DR2W1012T-120M	12.00	5.90	18.00
FC-DR2W1012T-150M	15.00	5.30	20.00
FC-DR2W1012T-180M	18.00	4.80	24.00
FC-DR2W1012T-220M	22.00	4.30	31.00
FC-DR2W1012T-270M	27.00	3.90	36.00
FC-DR2W1012T-330K	33.00	3.60	37.00
FC-DR2W1012T-390K	39.00	3.30	44.00
FC-DR2W1012T-470K	47.00	3.00	54.00
FC-DR2W1012T-560K	56.00	2.80	62.00
FC-DR2W1012T-680K	68.00	2.50	72.00
FC-DR2W1012T-820K	82.00	2.10	89.00
FC-DR2W1012T-101K	100.00	2.00	103.00
FC-DR2W1012T-121K	120.00	1.80	128.00
FC-DR2W1012T-151K	150.00	1.60	173.00
FC-DR2W1012T-181K	180.00	1.50	191.00
FC-DR2W1012T-221K	220.00	1.30	226.00
FC-DR2W1012T-271K	270.00	1.20	288.00
FC-DR2W1012T-331K	330.00	1.10	332.00
FC-DR2W1012T-391K	390.00	1.00	442.00
FC-DR2W1012T-471K	470.00	0.90	498.00
FC-DR2W1012T-561K	560.00	0.80	564.00
FC-DR2W1012T-681K	680.00	0.80	644.00
FC-DR2W1012T-821K	820.00	0.70	911.00
FC-DR2W1012T-102K	1000.00	0.70	1022.00
FC-DR2W1012T-122K	1200.00	0.67	1200.00

12.FC-DR2W1014T-Series-SPECIFICSMRBTION TSMRBBLE:

Part Number	Inductance(μH)	Isat (A)(max)	DCR (mΩ)(max) @25℃
FC-DR2W1014T-100K	10.00	4.00	33.00
FC-DR2W1014T-120K	12.00	3.90	35.00
FC-DR2W1014T-150K	15.00	3.70	39.00
FC-DR2W1014T-180K	18.00	3.50	47.00
FC-DR2W1014T-220K	22.00	3.30	51.00
FC-DR2W1014T-270K	27.00	3.10	57.00
FC-DR2W1014T-330K	33.00	2.90	64.00
FC-DR2W1014T-390K	39.00	2.70	74.00
FC-DR2W1014T-470K	47.00	2.50	83.00
FC-DR2W1014T-560K	56.00	2.30	104.00
FC-DR2W1014T-680K	68.00	2.10	117.00
FC-DR2W1014T-820K	82.00	1.90	130.00
FC-DR2W1014T-101K	100.00	1.70	143.00
FC-DR2W1014T-121K	120.00	1.50	195.00
FC-DR2W1014T-151K	150.00	1.40	221.00
FC-DR2W1014T-181K	180.00	1.30	260.00
FC-DR2W1014T-221K	220.00	1.20	350.00
FC-DR2W1014T-271K	270.00	1.10	390.00
FC-DR2W1014T-331K	330.00	1.00	520.00
FC-DR2W1014T-391K	390.00	0.92	570.00
FC-DR2W1014T-471K	470.00	0.84	650.00
FC-DR2W1014T-561K	560.00	0.75	790.00
FC-DR2W1014T-681K	680.00	0.69	960.00
FC-DR2W1014T-821K	820.00	0.62	1220.00
FC-DR2W1014T-102K	1000.00	0.52	1600.00
