RADIAL TYPE CHOKE INDUCTORS FC-DRL0810/1012/1214-Series

Ideal as a choke coil for noise filtering.
Low Rdc. large current type. best for the power supply line.
APPLICATIONS
Ideal for use as a power choke coil in general household
appliances such as TV set，video appliances and industrial equipment.
Can also be used as peaking coil in filtering applications. Cammunication equipment.

Download PDF

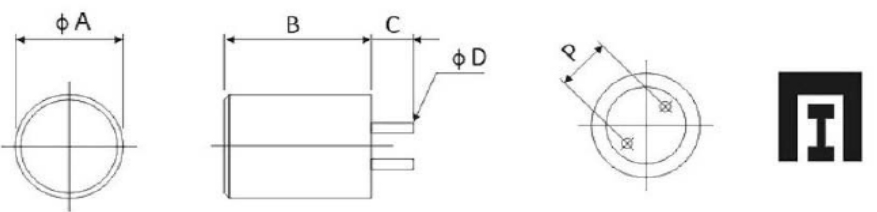

1.SHAPES AND DIMENSIONS(Unit:mm)

RADIAL TYPE CHOKE INDUCTORS FC-DRL0810/1012/1214-Series

Part NO.	A(max)	B(max)	C(±1.0)	D（±0.1）	P(±0.5)
FC-DRL0810	8.5	11	5.0	0.6	3.0
FC-DRL1020	10.5	13	5.0	0.65	5.0
FC-DRL1214	12.5	15	5.0	0.8	5.0

※Design as Customer's Requested Specifications.

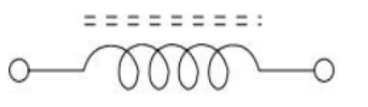

2.SCHEMATIC：

3.PRODUCT SPECIFICATIONS

PART NUMBER	INDUCTANCE(mH)	DCR(max)(Ω)	Rated Current(max)(Ma)	TEST FREQUENCY
FC-DRL0810-102M	1.0	4.7	57	1KHz
FC-DRL0810-122M	1.2	5.1	50	1KHz
FC-DRL0810-152M	1.8	5.9	46	1KHz
FC-DRL0810-182M	1.8	6.6	41	1KHz
FC-DRL0810-222M	2.2	7.8	37	1KHz
FC-DRL0810-272M	2.7	9.0	34	1KHz
FC-DRL0810-332M	3.3	10.0	30	1KHz
FC-DRL0810-392M	3.9	11.5	28	1KHz
FC-DRL0810-472M	4.7	12.6	25	1KHz
FC-DRL0810-562M	5.6	17.2	23	1KHz
FC-DRL0810-682M	6.8	19.0	20	1KHz
FC-DRL0810-822M	8.2	22.0	18	1KHz
FC-DRL0810-103M	10.0	25.0	15	1KHz
FC-DRL0810-123M	12.0	28.0	14	1KHz
FC-DRL0810-153M	15.0	33.0	12	1KHz
FC-DRL0810-183M	18.0	42.0	11	1KHz
FC-DRL0810-223M	22.0	48.0	10	1KHz
FC-DRL0810-273M	27.0	56.0	10	1KHz
FC-DRL0810-333M	33.0	64.0	9	1KHz
FC-DRL0810-393M	39.0	72.0	8	1KHz
FC-DRL0810-473M	47.0	82.0	8	1KHz

NOTES：
1. All test data is referenced to20℃ ambient
2. Operating Temperature Range -40℃ to+125℃
3. The maximum rated current is a DC curren which causes initial inductance to decrease by 10% or
temperature to rise by 40'C，which is smaller(at ambient reference temperature：20℃)
※Design as Customers Requested Specifications.

4.PRODUCT SPECIFICATIONS

PART NUMBER	INDUCTANCE(mH)	DCR(max)(Ω)	Rated Current(max)(Ma)	TEST FREQUENCY
FC-DRL1012-102M	1.0	3.4	55	1KHz
FC-DRL1012-122M	1.2	3.7	52	1KHz
FC-DRL1012-152M	1.5	4.0	47	1KHz
FC-DRL1012-182M	1.8	4.5	44	1KHz
FC-DRL1012-222M	2.2	5.2	41	1KHz
FC-DRL1012-272M	2.7	5.8	37	1KHz
FC-DRL1012-332M	3.3	6.1	33	1KHz
FC-DRL1012-392M	3.9	7.2	30	1KHz
FC-DRL1012-472M	4.7	7.5	28	1KHz
FC-DRL1012-562M	5.9	8.4	25	1KHz
FC-DRL1012-682M	6.8	9.7	23	1KHz
FC-DRL1012-882M	8.2	10.4	21	1KHz
FC-DRL1012-103M	10.0	12.1	18	1KHz
FC-DRL1012-123M	12.0	13.0	17	1KHz
FC-DRL1012-153M	15.0	15.0	15	1KHz
FC-DRL1012-183M	18.0	17.0	13	1KHz
FC-DRL1012-223M	22.0	19.5	11	1KHz
FC-DRL1012-273M	27.0	22.0	10	1KHz
FC-DRL1012-333M	33.0	26.0	9	1KHz
FC-DRL1012-393M	39.0	45.0	8	1KHz
FC-DRL1012-473M	47.0	52.0	8	1KHz
FC-DRL1012-563M	56.0	58.0	7	1KHz
FC-DRL1012-683M	68.0	67.0	6	1KHz
FC-DRL1012-823M	82.0	71.0	5	1KHz
FC-DRL1012-104M	100.0	82.0	5	1KHz
FC-DRL1012-124M	120.0	97.0	5	1KHz

5.PRODUCT SPECIFICATIONS

PART NUMBER	INDUCTANCE(mH)	DCR(max)(Ω)	Rated Current(max)(Ma)	TEST FREQUENCY
FC-DRL1214-100M	10	0.015	3.61	1KHz
FC-DRL1214-150M	15	0.017	3.16	1KHz
FC-DRL1214-180M	18	0.020	2.81	1KHz
FC-DRL1214-220M	22	0.021	2.44	1KHz
FC-DRL1214-270M	27	0.023	2.12	1KHz
FC-DRL1214-330M	33	0.024	1.80	1KHz
FC-DRL1214-390M	39	0.027	1.64	1KHz
FC-DRL1214-470M	47	0.032	1.57	1KHz
FC-DRL1214-560M	56	0.034	1.39	1KHz
FC-DRL1214-680M	68	0.060	1.26	1KHz
FC-DRL1214-820M	82	0.070	1.18	1KHz
FC-DRL1214-101M	100	0.090	1.14	1KHz
FC-DRL1214-151M	150	0.110	0.82	1KHz
FC-DRL1214-181M	180	0.120	0.73	1KHz
FC-DRL1214-221M	220	0.140	0.61	1KHz
FC-DRL1214-271M	270	0.160	0.54	1KHz
FC-DRL1214-331M	330	0.170	0.52	1KHz
FC-DRL1214-391M	390	0.320	0.48	1KHz
FC-DRL1214-471M	470	0.350	0.44	1KHz
FC-DRL1214-561M	560	0.390	0.40	1KHz
FC-DRL1214-681M	680	0.440	0.38	1KHz
FC-DRL1214-821M	820	0.480	0.28	1KHz
FC-DRL1214-102M	1000	0.530	0.27	1KHz
FC-DRL1214-122M	1200	0.660	0.26	1KHz
FC-DRL1214-152M	1500	0.860	0.23	1KHz
FC-DRL1214-182M	1800	0.950	0.21	1KHz
FC-DRL1214-222M	2200	1.070	0.18	1KHz
