- Low profile and shielded very effective in space-consciousapplications.
- Low resistance and high energy storage.
- Magnetically shielded.
- Excellent current carrying capabilities in a small footprint – only12.95 x 9.40.
- Up to 5 Arms with an 5.6 Amps saturation current.
- Flat top for reliable surface mounting.
- Robust temperature deflection prevents damage during solderreflow.

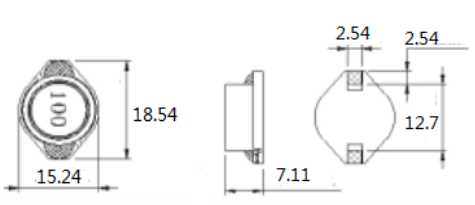

1.Dimensions(mm)
2.Electrical characteristics
| Part Number | Inductance(μH) | DC Resistance(Ω)max | SRF(MHz)Min | Isat(A)max | Irms(A)max |
| DSS5022-100M | 10±20% | 0.040 | 30 | 8 | 3.90 |
| DSS5022-150M | 15±20% | 0.048 | 20 | 7 | 3.40 |
| DSS5022-220M | 22±20% | 0.059 | 18 | 6 | 3.10 |
| DSS5022-330M | 33±20% | 0.075 | 14 | 5 | 2.80 |
| DSS5022-470M | 47±20% | 0.097 | 10 | 4 | 2.40 |
| DSS5022-680M | 68±20% | 0.138 | 9 | 3 | 2.00 |
| DSS5022-101M | 100±20% | 0.207 | 7 | 2.4 | 1.9 |
| DSS5022-151M | 150±20% | 0.293 | 6 | 2.1 | 1.30 |
| DSS5022-221M | 220±20% | 0.47 | 5 | 1.9 | 1.10 |
| DSS5022-331M | 330±20% | 0.78 | 4 | 1.1 | 0.86 |
| DSS5022-471M | 470±20% | 1.08 | 3 | 1.1 | 0.73 |
| DSS5022-681M | 680±20% | 1.40 | 2.5 | 0.96 | 0.64 |
| DSS5022-102M | 1000±20% | 2.01 | 2.0 | 0.80 | 0.53 |
1, Inductance tested at 100 kHz0.1 Vrms.
2, Isat: DC current at which the inductance drops 10% (typ.) from its value without current.
3, Operating temperature range -40°C to +85°C.
4, Electrical specifications at 25°C.
