- Low profile and shielded very effective in space-consciousapplications.
- Low resistance and high energy storage
- Magnetically shielded.
- Highest efficiency of any comparable parts 10% to 60%lower DCR than other currently available inductors.
- Surface mount design
- fully pick and place compatible.
- Designed for use at switching frequencies from 50 kHz to 1MHz.
1.Dimensions(mm)

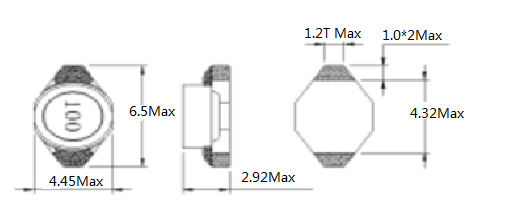

2.Electrical characteristics
| Part Number | Inductance(μH) | Q(Min) | DCResistance(Ω)max | SRF(MHz)Min | Rated Current(A)max |
| DSS1608-1R0M | 1.0±20% | 30@200KHz | 0.040 | 250 | 1.40 |
| DSS1608-1R5M | 1.5±20% | 30@200KHz | 0.045 | 125 | 0.93 |
| DSS1608-2R2M | 2.2±20% | 40@200KHz | 0.050 | 120 | 0.92 |
| DSS1608-3R3M | 3.3±20% | 40@200KHz | 0.055 | 120 | 0.75 |
| DSS1608-4R7M | 4.7±20% | 40@200KHz | 0.060 | 105 | 0.58 |
| DSS1608-6R8M | 6.8±20% | 40@200KHz | 0.065 | 50 | 0.58 |
| DSS1608-100M | 10±20% | 40@200KHz | 0.075 | 38 | 0.37 |
| DSS1608-150M | 15±20% | 40@200KHz | 0.09 | 33 | 0.31 |
| DSS1608-220M | 22±20% | 40@200KHz | 0.11 | 25 | 0.30 |
| DSS1608-330M | 33±20% | 40@200KHz | 0.19 | 20 | 0.28 |
| DSS1608-470M | 47±20% | 40@200KHz | 0.23 | 20 | 0.24 |
| DSS1608-680M | 68±20% | 40@200KHz | 0.29 | 15 | 0.17 |
| DSS1608-101M | 100±20% | 40@200KHz | 0.48 | 10 | 0.13 |
| DSS1608-151M | 150±20% | 40@200KHz | 0.59 | 9 | 0.10 |
| DSS1608-221M | 220±20% | 40@200KHz | 0.77 | 6 | 0.10 |
| DSS1608-331M | 330±20% | 40@200KHz | 1.4 | 5 | 0.07 |
| DSS1608-471M | 470±20% | 40@200KHz | 1.8 | 4 | 0.06 |
| DSS1608-681M | 680±20% | 40@200KHz | 2.2 | 3 | 0.055 |
| DSS1608-102M | 1000±20% | 40@200KHz | 3.4 | 2 | 0.045 |
DSS1608-Series
| Part Number | Inductance(μH) | DC Resistance (Ω)max | SRF(MHz)Min | Isat(A)max | Irms(A)max |
| DSS1608-152M | 1500±20% | 50@200KHz | 4.2 | 2 | 0.035 |
| DSS1608-222M | 2200±20% | 50@200KHz | 8.5 | 2 | 0.028 |
| DSS1608-332M | 3300±20% | 50@200KHz | 11.0 | 1 | 0.024 |
| DSS1608-472M | 4700±20% | 50@200KHz | 13.9 | 1 | 0.021 |
| DSS1608-682M | 6800±20% | 50@200KHz | 25.0 | 1 | 0.019 |
| DSS1608-103M | 10000±20% | 50@200KHz | 32.8 | 0.8 | 0.017 |

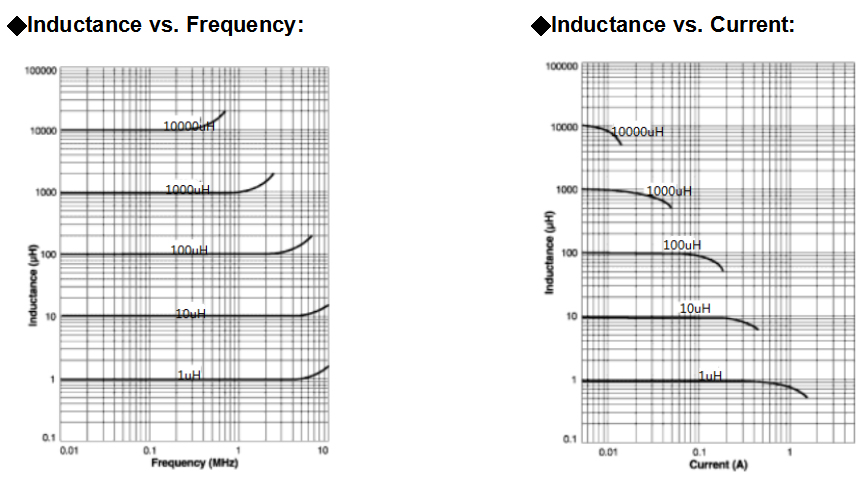

1, Inductance tested at 100 kHz0.1 Vrms.
2, Isat: DC current at which the inductance drops 10% (typ.) from its value without current.
3, Operating temperature range -40°C to +85°C.
4, Electrical specifications at 25°C.
