- Low profile and shielded very effective in space-consciousapplications.
- Low resistance and high energy storage.
- Magnetically shielded.
- Excellent current carrying capabilities in a small footprint – only12.95 x 9.40.
- Up to 5 Arms with an 5.6 Amps saturation current.
- Flat top for reliable surface mounting.
- 7Robust temperature deflection prevents damage during solderreflow.

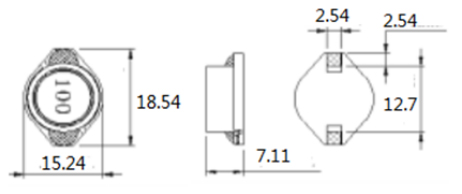

1.Dimensions(mm)
2.Electrical Properties:
| Part Number | Inductance(μH) | DC Resistance(Ω)max | SRF(MHz)Min | Isat(A)max | Irms(A)max |
| DSS3316-1R0M | 1.0±20% | 0.021 | 140 | 5.60 | 5.0 |
| DSS3316-1R5M | 1.5±20% | 0.022 | 120 | 5.20 | 4.5 |
| DSS3316-2R2M | 2.2±20% | 0.032 | 80 | 5.00 | 3.8 |
| DSS3316-3R3M | 3.3±20% | 0.039 | 70 | 3.90 | 3.3 |
| DSS3316-4R7M | 4.7±20% | 0.054 | 40 | 3.20 | 2.7 |
| DSS3316-6R8M | 6.8±20% | 0.075 | 38 | 2.80 | 2.2 |
| DSS3316-100M | 10±20% | 0.101 | 35 | 2.40 | 2.0 |
| DSS3316-150M | 15±20% | 0.150 | 25 | 2.00 | 1.5 |
| DSS3316-220M | 22±20% | 0.207 | 19 | 1.60 | 1.3 |
| DSS3316-330M | 33±20% | 0.334 | 15 | 1.40 | 1.1 |
| DSS3316-470M | 47±20% | 0.472 | 13 | 1.00 | 0.8 |
| DSS3316-680M | 68±20% | 0.66 | 10 | 0.90 | 0.7 |
| DSS3316-101M | 100±20% | 1.11 | 7.0 | 0.80 | 0.6 |
DSS3316-Series:
| Part Number | Inductance(μH) | DC Resistance(Ω)max | SRF(MHz)Min | Isat(A)max | Irms(A)max |
| DSS3316-151M | 150±20% | 1.55 | 6 | 0.60 | 0.5 |
| DSS3316-221M | 220±20% | 2.00 | 5 | 0.50 | 0.4 |
| DSS3316-102M | 1000±20% | 8.30 | 2 | 0.32 | 0.2 |

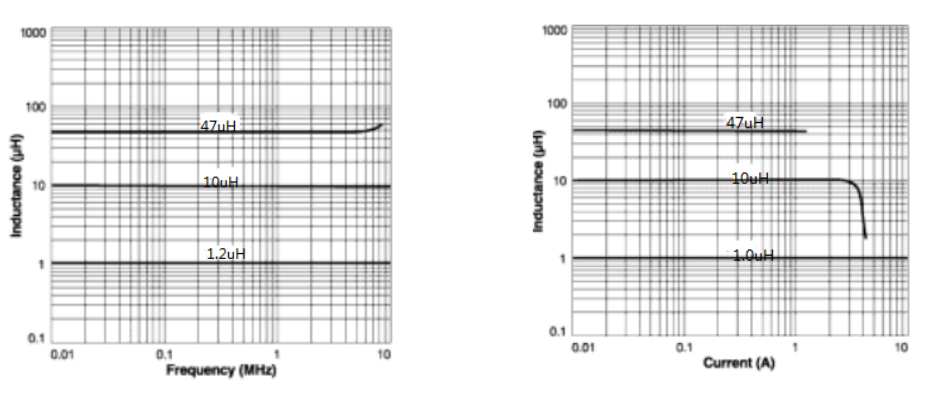

◆Inductance vs. Frequency:◆Inductance vs. Current:
1, Inductance tested at 100 kHz0.1 Vrms.
2, Isat: DC current at which the inductance drops 10% (typ.) from its value without current.
3, Operating temperature range -40°C to +85°C.
4, Electrical specifications at 25°C.
