FC-SSRH1204-FC-SSHR1508-Series Surface Mount Shielded Power Inductors

Magnetic Shielded surface mount inductor with high currentrating.
Low resistance to keep power loss minimum.
Integrated DC/DC converter

Download PDF

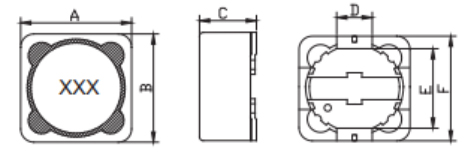

1.Dimensions(mm)

FC-SSRH1204-FC-SSHR1508-Series Surface Mount Shielded Power Inductors

Series	A（mm）	B(mm)	C(mm)	D（mm）	E(mm)
FC-SSRH1204	12.0±0.30	12.0±0.30	5.0Max	5.0±0.20	7.6±0.20
FC-SSRH1205	12.0±0.30	12.0±0.30	6.0Max	5.0±0.20	7.6±0.20
FC-SSRH1207	12.0±0.30	12.0±0.30	8.0Max	5.0±0.20	7.6±0.20
FC-SSRH1209	12.5±0.30	12.0±0.30	10.0±0.20	5.0±0.20	7.6±0.20
FC-SSRH1508	15.0±0.50	15.0±0.50	8.60Max	8.20Max	7.6±0.20

2. Schematic:

3. Recommended Land Pattern: [mm]

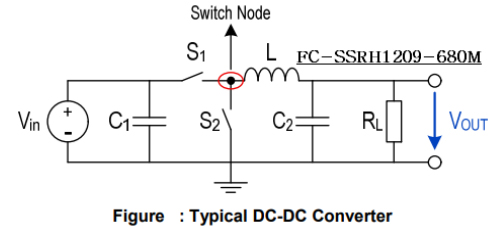

4.Typical Circuit:

5. Electrical characteristics

Part Number	Inductance(μH)	Test Frequency(KHz)	DC Resistance(Ω)max	Rated Current(A) Max
FC-SSRH1204-3R9Y	3.9±30%	100.0KHz/1.0V	0.015	6.5
FC-SSRH1204-4R7Y	4.7±30%	100.0KHz/1.0V	0.018	5.7
FC-SSRH1204-6R8Y	6.8±30%	100.0KHz/1.0V	0.023	4.9
FC-SSRH1204-8R2Y	8.2±30%	100.0KHz/1.0V	0.026	4.6
FC-SSRH1204-100M	10±20%	100.0KHz/1.0V	0.028	4.5
FC-SSRH1204-120M	12±20%	100.0KHz/1.0V	0.038	4.0
FC-SSRH1204-150M	15±20%	100.0KHz/1.0V	0.050	3.2
FC-SSRH1204-180M	18±20%	100.0KHz/1.0V	0.057	3.1
FC-SSRH1204-220M	22±20%	100.0KHz/1.0V	0.066	2.9
FC-SSRH1204-270M	27±20%	100.0KHz/1.0V	0.080	2.8
FC-SSRH1204-330M	33±20%	100.0KHz/1.0V	0.097	2.7
FC-SSRH1204-390M	39±20%	100.0KHz/1.0V	0.132	2.1
FC-SSRH1204-470M	47±20%	100.0KHz/1.0V	0.160	1.9
FC-SSRH1204-560M	56±20%	100.0KHz/1.0V	0.190	1.8
FC-SSRH1204-680M	68±20%	100.0KHz/1.0V	0.220	1.5
FC-SSRH1204-820M	82±20%	100.0KHz/1.0V	0.260	1.3
FC-SSRH1204-101M	100±20%	100.0KHz/1.0V	0.308	1.2
FC-SSRH1204-121M	120±20%	100.0KHz/1.0V	0.38	1.1
FC-SSRH1204-151M	150±20%	100.0KHz/1.0V	0.53	0.95
FC-SSRH1204-181M	180±20%	100.0KHz/1.0V	0.62	0.85
FC-SSRH1204-221M	220±20%	100.0KHz/1.0V	0.70	0.80
FC-SSRH1204-271M	270±20%	100.0KHz/1.0V	0.87	0.60
FC-SSRH1204-331M	330±20%	100.0KHz/1.0V	0.99	0.50

1.Measurement Frequency for Inductance:100KHz/1.0V
2.Isat DC saturation allowable current: Inductance drift is within-25% at thesuperposition.
3.IrmsTemperatureriseallowablecurrent:Arise intemperatureofsurfaceofcoreiswithin40℃
4.Ambient temperature –40°C to+85°C
5.Storage temperature Component: –40°C to+125°

6.Electrical characteristics

Part Number	Inductance(μH)	Test Frequency(KHz)	DC Resistance(Ω)max	Rated Current(A) Max
FC-SSRH1205-1R2Y	1.2±30%	100.0KHz/1.0V	0.012	8.0
FC-SSRH1205-2R4Y	2.4±30%	100.0KHz/1.0V	0.014	7.0
FC-SSRH1205-4R7Y	4.7±30%	100.0KHz/1.0V	0.020	5.0
FC-SSRH1205-6R1Y	6.1±30%	100.0KHz/1.0V	0.021	4.4
FC-SSRH1205-100M	10±20%	100.0KHz/1.0V	0.025	4.0
FC-SSRH1205-120M	12±20%	100.0KHz/1.0V	0.027	3.5
FC-SSRH1205-150M	15±20%	100.0KHz/1.0V	0.030	3.3
FC-SSRH1205-180M	18±20%	100.0KHz/1.0V	0.034	3.0
FC-SSRH1205-220M	22±20%	100.0KHz/1.0V	0.036	2.8
FC-SSRH1205-330M	33±20%	100.0KHz/1.0V	0.057	2.1
FC-SSRH1205-390M	39±20%	100.0KHz/1.0V	0.068	2.0
FC-SSRH1205-470M	47±20%	100.0KHz/1.0V	0.075	1.8
FC-SSRH1205-560M	56±20%	100.0KHz/1.0V	0.11	1.7
FC-SSRH1205-680M	68±20%	100.0KHz/1.0V	0.12	1.5
FC-SSRH1205-820M	82±20%	100.0KHz/1.0V	0.14	1.4
FC-SSRH1205-101M	100±20%	100.0KHz/1.0V	0.16	1.3
FC-SSRH1205-121M	120±20%	100.0KHz/1.0V	0.17	1.1
FC-SSRH1205-151M	150±20%	100.0KHz/1.0V	0.23	1.0
FC-SSRH1205-221M	220±20%	100.0KHz/1.0V	0.40	0.8
FC-SSRH1205-331M	330±20%	100.0KHz/1.0V	0.51	0.68
FC-SSRH1205-391M	390±20%	100.0KHz/1.0V	0.69	0.65
FC-SSRH1205-471M	470±20%	100.0KHz/1.0V	0.77	0.58
FC-SSRH1205-561M	560±20%	100.0KHz/1.0V	0.86	0.54
FC-SSRH1205-681M	680±20%	100.0KHz/1.0V	1.20	0.48
FC-SSRH1205-821M	820±20%	100.0KHz/1.0V	1.34	0.43
FC-SSRH1205-102M	1000±20%	100.0KHz/1.0V	1.53	0.40

7.Electrical characteristics

Part Number	Inductance(μH)	Test Frequency(KHz)	DC Resistance(Ω)max	Rated Current(A) Max
FC-SSRH1207-1R2Y	1.2±30%	100.0KHz/1.0V	0.0070	9.80
FC-SSRH1207-2R4Y	2.4±30%	100.0KHz/1.0V	0.0115	8.00
FC-SSRH1207-3R5Y	3.5±30%	100.0KHz/1.0V	0.0135	7.50
FC-SSRH1207-4R7Y	4.7±30%	100.0KHz/1.0V	0.0158	6.80
FC-SSRH1207-100M	10±20%	100.0KHz/1.0V	0.0216	5.40
FC-SSRH1207-150M	15±20%	100.0KHz/1.0V	0.0270	4.50
FC-SSRH1207-220M	22±20%	100.0KHz/1.0V	0.0432	6.30
FC-SSRH1207-330M	33±20%	100.0KHz/1.0V	0.0648	3.00
FC-SSRH1207-390M	39±20%	100.0KHz/1.0V	0.0729	2.75
FC-SSRH1207-470M	47±20%	100.0KHz/1.0V	0.10	2.50
FC-SSRH1207-560M	56±20%	100.0KHz/1.0V	0.11	2.35
FC-SSRH1207-680M	68±20%	100.0KHz/1.0V	0.14	2.10
FC-SSRH1207-820M	82±20%	100.0KHz/1.0V	0.16	1.95
FC-SSRH1207-101M	100±20%	100.0KHz/1.0V	0.22	1.70
FC-SSRH1207-121M	120±20%	100.0KHz/1.0V	0.25	1.60
FC-SSRH1207-151M	150±20%	100.0KHz/1.0V	0.28	1.42
FC-SSRH1207-181M	180±20%	100.0KHz/1.0V	0.35	1.30
FC-SSRH1207-221M	220±20%	100.0KHz/1.0V	0.39	1.16
FC-SSRH1207-271M	270±20%	100.0KHz/1.0V	0.56	1.06
FC-SSRH1207-331M	330±20%	100.0KHz/1.0V	0.64	0.95
FC-SSRH1207-471M	470±20%	100.0KHz/1.0V	0.98	0.79
FC-SSRH1207-561M	560±20%	100.0KHz/1.0V	1.07	0.73
FC-SSRH1207-681M	680±20%	100.0KHz/1.0V	1.46	0.67
FC-SSRH1207-821M	820±20%	100.0KHz/1.0V	1.64	0.60
FC-SSRH1207-102M	1000±20%	100.0KHz/1.0V	1.82	0.55

8.Electrical characteristics

Part Number	Inductance(μH)	Test Frequency(KHz)	DC Resistance(Ω)max	Rated Current(A) Max
FC-SSRH1209-100M	10	100.0KHz/1.0V	0.022	6.7	20.30
FC-SSRH1209-150M	15	100.0KHz/1.0V	0.022	6.0	20.30
FC-SSRH1209-220M	22	100.0KHz/1.0V	0.03	5.5	20.30
FC-SSRH1209-330M	33	100.0KHz/1.0V	0.058	4.3	20.30
FC-SSRH1209-470M	47	100.0KHz/1.0V	0.065	4.2	20.30
FC-SSRH1209-680M	68	100.0KHz/1.0V	0.08	3.0	20.30
FC-SSRH1209-101M	100	100.0KHz/1.0V	0.159	2.4	20.30
FC-SSRH1209-121M	120	100.0KHz/1.0V	0.165	2.5	20.30
FC-SSRH1209-151M	150	100.0KHz/1.0V	0.185	1.8	20.30
FC-SSRH1209-181M	180	100.0KHz/1.0V	0.203	2.0	20.30
FC-SSRH1209-221M	220	100.0KHz/1.0V	0.24	1.6	20.30
FC-SSRH1209-331M	330	100.0KHz/1.0V	0.45	1.28	20.30
FC-SSRH1209-471M	470	100.0KHz/1.0V	0.51	1.5	20.30
FC-SSRH1209-681M	680	100.0KHz/1.0V	0.63	1.3	20.30
FC-SSRH1209-102M	1000	100.0KHz/1.0V	0.96	1.1	20.30

9. Electrical characteristics

Part Number	Inductance (µH)	DCR (Ω) max	Isat (A) typ	Irms(A) typ
FC-SSRH1508-100M	10.0±20%	0.014	14.70	7.40
FC-SSRH1508-120M	12.0±20%	0.017	14.20	6.30
FC-SSRH1508-150M	15.0±20%	0.021	12.40	6.10
FC-SSRH1508-180M	18.±20%	0.023	11.20	5.50
FC-SSRH1508-220M	22.0±20%	0.026	10.40	5.30
FC-SSRH1508-330M	33.0±20%	0.038	8.60	4.80
FC-SSRH1508-470M	47.0±20%	0.055	7.30	3.70
FC-SSRH1508-680M	68.0±20%	0.070	6.00	3.40
FC-SSRH1508-101M	100.0±20%	0.103	4.80	2.80
FC-SSRH1508-151M	150.0±20%	0.259	3.90	2.20
FC-SSRH1508-221M	220.0±20%	0.235	3.30	1.80
FC-SSRH1508-331M	330.0±20%	0.345	2.50	1.45
FC-SSRH1508-471M	470.0±20%	0.445	2.20	1.35
FC-SSRH1508-681M	680.0±20%	0.655	1.80	1.10
FC-SSRH1508-821M	820.0±20%	0.736	1.60	1.00
FC-SSRH1508-102M	1000.0±20%	0.990	1.40	0.86

6.Measurement Frequency for Inductance:100KHz/1.0V
7.Isat DC saturation allowable current: Inductance drift is within-25% at thesuperposition.
8.IrmsTemperatureriseallowablecurrent:Arise intemperatureofsurfaceofcoreiswithin40℃
9.Ambient temperature –40°C to+85°C
10.Storage temperature Component: –40°C to+125°
