- Magnetic Shielded surface mount inductor with high currentrating.
- Low resistance to keep power loss minimum.

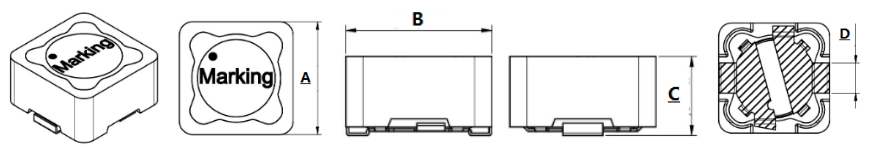

1.Dimensions(mm)
| Spec. | A | B | C | D |
| FC-SSRH0703 | 7.3±0.30 | 7.3±0.30 | 3.5Max | 1.8±0.20 |
| FC-SSRH0704 | 7.3±0.30 | 7.3±0.30 | 4.5Max | 1.8±0.20 |
2. Schematic:
3.Recommended Land Pattern: [mm]

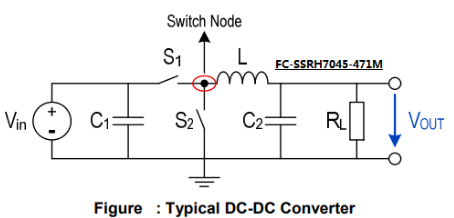

4.Typical Circuit.
5. Electrical characteristics
| Part Number | Inductance(μH) | Test Frequency(KHz) | DC Resistance(Ω) max | Rated Current(A) Max |
| FC-SSRH0703-100M | 10±20% | 100.0KHz/1.0V | 0.072 | 1.68 |
| FC-SSRH0703-120M | 12±20% | 100.0KHz/1.0V | 0.098 | 1.52 |
| FC-SSRH0703-150M | 15±20% | 100.0KHz/1.0V | 0.13 | 1.33 |
| FC-SSRH0703-180M | 18±20% | 100.0KHz/1.0V | 0.14 | 1.20 |
| FC-SSRH0703-220M | 22±20% | 100.0KHz/1.0V | 0.19 | 1.07 |
| FC-SSRH0703-270M | 27±20% | 100.0KHz/1.0V | 0.21 | 0.96 |
| FC-SSRH0703-330M | 33±20% | 100.0KHz/1.0V | 0.24 | 0.91 |
| FC-SSRH0703-390M | 39±20% | 100.0KHz/1.0V | 0.32 | 0.77 |
| FC-SSRH0703-470M | 47±20% | 100.0KHz/1.0V | 0.36 | 0.76 |
| FC-SSRH0703-560M | 56±20% | 100.0KHz/1.0V | 0.47 | 0.68 |
| FC-SSRH0703-680M | 68±20% | 100.0KHz/1.0V | 0.52 | 0.61 |
| FC-SSRH0703-820M | 82±20% | 100.0KHz/1.0V | 0.69 | 0.57 |
| FC-SSRH0703-101M | 100±20% | 100.0KHz/1.0V | 0.79 | 0.50 |
| FC-SSRH0703-121M | 120±20% | 100.0KHz/1.0V | 0.89 | 0.49 |
| FC-SSRH0703-151M | 150±20% | 100.0KHz/1.0V | 1.27 | 0.43 |
| FC-SSRH0703-181M | 180±20% | 100.0KHz/1.0V | 1.45 | 0.39 |
| FC-SSRH0703-221M | 220±20% | 100.0KHz/1.0V | 1.65 | 0.35 |
| FC-SSRH0703-271M | 270±20% | 100.0KHz/1.0V | 2.31 | 0.32 |
| FC-SSRH0703-331M | 330±20% | 100.0KHz/1.0V | 2.62 | 0.28 |
| FC-SSRH0703-471M | 470±20% | 100.0KHz/1.0V | 4.18 | 0.24 |
6. Electrical characteristics
| Part Number | Inductance(μH) | Test Frequency(KHz) | DC Resistance(Ω) max | Rated Current(A) Max |
| FC-SSRH0704-100M | 10±20% | 100.0KHz/1.0V | 0.049 | 1.84 |
| FC-SSRH0704-120M | 12±20% | 100.0KHz/1.0V | 0.58 | 1.71 |
| FC-SSRH0704-150M | 15±20% | 100.0KHz/1.0V | 0.081 | 1.47 |
| FC-SSRH0704-180M | 18±20% | 100.0KHz/1.0V | 0.091 | 1.31 |
| FC-SSRH0704-220M | 22±20% | 100.0KHz/1.0V | 0.11 | 1.23 |
| FC-SSRH0704-270M | 27±20% | 100.0KHz/1.0V | 0.15 | 1.12 |
| FC-SSRH0704-330M | 33±20% | 100.0KHz/1.0V | 0.17 | 0.96 |
| FC-SSRH0704-390M | 39±20% | 100.0KHz/1.0V | 0.23 | 0.91 |
| FC-SSRH0704-470M | 47±20% | 100.0KHz/1.0V | 0.26 | 0.88 |
| FC-SSRH0704-560M | 56±20% | 100.0KHz/1.0V | 0.35 | 0.75 |
| FC-SSRH0704-680M | 68±20% | 100.0KHz/1.0V | 0.38 | 0.68 |
| FC-SSRH0704-820M | 82±20% | 100.0KHz/1.0V | 0.43 | 0.61 |
| FC-SSRH0704-101M | 100±20% | 100.0KHz/1.0V | 0.61 | 0.60 |
| FC-SSRH0704-121M | 120±20% | 100.0KHz/1.0V | 0.66 | 0.52 |
| FC-SSRH0704-151M | 150±20% | 100.0KHz/1.0V | 0.88 | 0.46 |
| FC-SSRH0704-181M | 180±20% | 100.0KHz/1.0V | 0.98 | 0.42 |
| FC-SSRH0704-221M | 220±20% | 100.0KHz/1.0V | 1.17 | 0.36 |
| FC-SSRH0704-271M | 270±20% | 100.0KHz/1.0V | 1.64 | 0.34 |
| FC-SSRH0704-331M | 330±20% | 100.0KHz/1.0V | 1.86 | 0.32 |
1.Measurement Frequency for Inductance:100KHz/1.0V
2.Isat DC saturation allowable current: Inductance drift is within-25% at thesuperposition.
3.IrmsTemperatureriseallowablecurrent:Arise intemperatureofsurfaceofcoreiswithin40℃
4.Ambient temperature –40°C to+85°C
5.Storage temperature Component: –40°C to+125°
