- Low acoustic noise and low leakage
- flux noise by shielded construction
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C

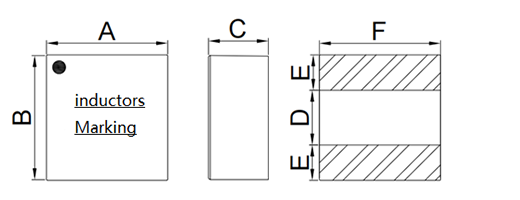

1. Dimensions:mm

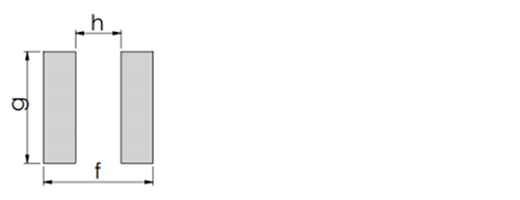

2. RecommendeLand Pattern: mm

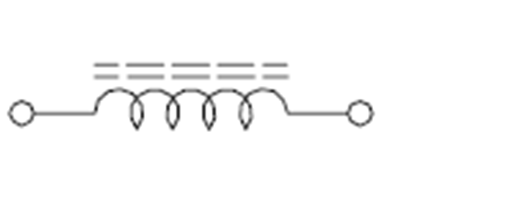

3 .Schematic:
4.Dimensions
| Series | A | B | C | D | E | F | f | g | h |
| FC-ALX3012D | 3.2±0.2 | 3.0±0.2 | 1.20 Max. | 1.2±0.2 | 0.7±0.2 | 3.2 Typ | 3.15 Typ. | 3.4 Typ. | 1.0 Typ. |
| FC-ALX4015D | 4.2±0.2 | 4.2±0.2 | 1.60 Max. | 1.4±0.2 | 1.2±0.2 | 4.2 Typ | 4.30 Typ. | 4.4 Typ. | 1.2 Typ. |
| FC-ALX4020D | 4.2±0.2 | 4.2±0.2 | 2.10 Max. | 1.4±0.2 | 1.2±0.2 | 4.2 Typ | 4.30 Typ. | 4.4 Typ. | 1.2 Typ. |
| FC-ALX4030D | 4.2±0.2 | 4.2±0.2 | 3.10 Max. | 1.4±0.2 | 1.2±0.2 | 4.2 Typ | 4.30 Typ. | 4.4 Typ. | 1.2 Typ. |
| FC-ALX5020D | 5.3±0.2 | 5.1±0.2 | 2.10 Max. | 2.0±0.2 | 1.4±0.2 | 5.3 Typ | 5.50 Typ. | 5.7 Typ | 1.7 Typ. |
| FC-ALX5030D | 5.3±0.2 | 5.1±0.2 | 3.10 Max. | 2.0±0.2 | 1.4±0.2 | 5.3 Typ | 5.50 Typ. | 5.7 Typ | 1.7 Typ. |
| FC-ALX5050D | 5.3±0.2 | 5.1±0.2 | 5.10 Max. | 2.0±0.2 | 1.4±0.2 | 5.3 Typ | 5.50 Typ. | 5.7 Typ | 1.7 Typ. |
| FC-ALX6015D | 6.6±0.2 | 6.4±0.2 | 1.60 Max. | 2.5±0.3 | 1.9±0.2 | 6.6 Typ | 6.80 Typ | 7.0 Typ | 2.3 Typ. |
| FC-ALX6020D | 6.6±0.2 | 6.4±0.2 | 2.0 Max. | 2.5±0.3 | 1.9±0.2 | 6.6 Typ | 6.80 Typ | 7.0 Typ | 2.3 Typ. |
| FC-ALX6030D | 6.6±0.2 | 6.4±0.2 | 3.10 Max. | 2.5±0.3 | 1.9±0.2 | 6.6 Typ | 6.80 Typ | 7.0 Typ | 2.3 Typ. |
| FC-ALX6050D | 6.6±0.2 | 6.4±0.2 | 5.10 Max. | 2.5±0.3 | 1.9±0.2 | 6.6 Typ | 6.80 Typ | 7.0 Typ | 2.3 Typ. |
| FC-ALX7020D | 7.8±0.2 | 7.8±0.2 | 2.0 Max. | 2.8±0.3 | 2.4±0.2 | 7.8 Typ | 8.00 Typ | 8.2 Typ | 2.5 Typ |
| FC-ALX7030D | 7.80±0.2 | 7.80±0.2 | 3.10 Max. | 2.80±0.3 | 2.40±0.2 | 7.8 Typ | 8.00 Typ | 8.2 Typ | 2.5 Typ |
| FC-ALX7070D | 7.80±0.2 | 7.80±0.2 | 7.10 Max. | 3.80±0.3 | 1.60±0.2 | 6.5 Typ | 7.00 Typ | 7.0 Typ | 3.5 Typ |
| FC-ALX1030D | 11.6±0.2 | 10.5±0.2 | 3.10 Max. | 4.45±0.3 | 2.20±0.2 | 9.5 Typ | 9.00 Typ | 10.0 Typ | 4.0 Typ |
| FC-ALX1040D | 11.6±0.2 | 10.5±0.2 | 4.10 Max. | 4.45±0.3 | 2.20±0.2 | 9.5 Typ | 9.00 Typ | 10.0 Typ | 4.0 Typ |
| FC-ALX1060D | 11.6±0.2 | 10.5±0.2 | 6.10 Max. | 4.45±0.3 | 2.20±0.2 | 9.5 Typ | 9.00 Typ | 10.0 Typ | 4.0 Typ |
| FC-ALX1010D | 11.6±0.2 | 10.5±0.2 | 10.0 Max. | 4.45±0.3 | 2.20±0.2 | 9.5 Typ | 9.00 Typ | 10.0 Typ | 4.0 Typ |
5. Electrical Properties:
5.1 FC-ALX3012D-Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX3012D-R25MT | 0.25±20% | 5.80 | 6.50 | 8.00 | 7.20 | 7.20 | R25 |
| FC-ALX3012D-R56MT | 0.56±20% | 11.2 | 12.5 | 6.00 | 5.40 | 5.40 | R56 |
| FC-ALX3012D-R68MT | 0.68±20% | 13.5 | 15.5 | 5.50 | 5.00 | 5.00 | R68 |
5.2 FC-ALX4015D-Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX4015D-R33MT | 0.33±20% | 4.90 | 5.50 | 11.5 | 10.5 | 10.3 | R33 |
| FC-ALX4015D-R47MT | 0.47±20% | 5.75 | 6.20 | 10.8 | 10.3 | 10.3 | R47 |
| FC-ALX4015D-R68MT | 0.68±20% | 8.10 | 8.90 | 8.80 | 8.30 | 8.30 | R68 |
| FC-ALX4015D-R82MT | 0.82±20% | 9.40 | 10.5 | 8.10 | 7.60 | 7.60 | R82 |
| FC-ALX4015D-1R0MT | 1.00±20% | 10.6 | 11.8 | 7.50 | 7.00 | 7.00 | 1R0 |
5.3 FC-ALX4020 Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX4020D-R33MT | 0.33±20% | 2.80 | 3.10 | 16.1 | 15.2 | 16.1 | R33 |
| FC-ALX4020D-R47MT | 0.47±20% | 4.10 | 4.60 | 13.4 | 11.5 | 13.4 | R47 |
| FC-ALX4020D-R56MT | 0.56±20% | 5.10 | 5.70 | 10.2 | 9.80 | 10.5 | R56 |
| FC-ALX4020D-R68MT | 0.68±20% | 5.60 | 6.40 | 10.2 | 9.80 | 10.5 | R68 |
| FC-ALX4020D-R82MT | 0.82±20% | 6.50 | 7.50 | 9.30 | 8.80 | 9.30 | R82 |
| FC-ALX4020D-1R0MT | 1.00±20% | 7.60 | 8.40 | 8.80 | 8.20 | 8.80 | 1R0 |
| FC-ALX4020D-1R5MT | 1.50±20% | 12.4 | 13.6 | 7.90 | 7.50 | 7.90 | 1R5 |
| FC-ALX4020D-2R2MT | 2.20±20% | 21.1 | 22.5 | 7.10 | 6.40 | 7.10 | 2R2 |
| FC-ALX4020D-3R3MT | 3.30±20% | 25.2 | 28.0 | 5.40 | 4.70 | 4.70 | 3R3 |
5.4 FC-ALX4030D- Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX4030D-R33MT | 0.33±20% | 2.55 | 3.00 | 16.5 | 15.0 | 14.8 | R33 |
| FC-ALX4030D-R47MT | 0.47±20% | 3.15 | 3.50 | 14.5 | 13.0 | 14.5 | R47 |
| FC-ALX4030D-R56MT | 0.56±20% | 3.51 | 3.90 | 14.0 | 12.3 | 14.0 | R56 |
| FC-ALX4030D-R68MT | 0.68±20% | 3.78 | 4.30 | 12.5 | 11.5 | 12.5 | R68 |
| FC-ALX4030D-1R0MT | 1.00±20% | 5.50 | 6.20 | 11.8 | 10.5 | 11.8 | 1R0 |
| FC-ALX4030D-1R2MT | 1.20±20% | 6.80 | 7.50 | 10.5 | 9.80 | 10.5 | 1R2 |
| FC-ALX4030D-1R5MT | 1.50±20% | 7.80 | 8.60 | 9.60 | 8.90 | 9.60 | 1R5 |
| FC-ALX4030D-2R2MT | 2.20±20% | 10.7 | 11.8 | 8.10 | 7.30 | 8.10 | 2R2 |
| FC-ALX4030D-3R3MT | 3.30±20% | 15.9 | 17.7 | 6.50 | 5.80 | 6.50 | 3R3 |
| FC-ALX4030D-4R7MT | 4.70±20% | 21.5 | 23.4 | 5.50 | 5.00 | 5.50 | 4R7 |
5.5 FC-ALX5020D- Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX5020D-R56MT | 0.56±20% | 5.30 | 5.80 | 18.8 | 16.5 | 16.2 | R56 |
| FC-ALX5020D-R80MT | 0.80±20% | 6.80 | 7.50 | 14.0 | 12.5 | 12.2 | R80 |
| FC-ALX5020D-1R0MT | 1.00±20% | 8.60 | 9.50 | 12.0 | 10.5 | 10.2 | 1R0 |
5.6 FC-ALX5030D- Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX5030D-R80MT | 0.80±20% | 4.50 | 4.95 | 18.5 | 16.5 | 16.2 | R80 |
| FC-ALX5030D-1R0MT | 1.00±20% | 5.30 | 5.80 | 15.5 | 14.0 | 13.7 | 1R0 |
| FC-ALX5030D-1R2MT | 1.20±20% | 6.80 | 7.50 | 13.8 | 12.8 | 12.5 | 1R2 |
| FC-ALX5030D-1R5MT | 1.50±20% | 8.10 | 9.00 | 13.5 | 12.5 | 12.2 | 1R5 |
| FC-ALX5030D-2R2MT | 2.20±20% | 11.2 | 12.5 | 11.5 | 10.5 | 10.2 | 2R2 |
| FC-ALX5030D-3R3MT | 3.30±20% | 16.5 | 18.9 | 9.00 | 8.20 | 7.90 | 3R3 |
| FC-ALX5030D-4R7MT | 4.70±20% | 22.5 | 25.0 | 7.00 | 6.30 | 6.00 | 4R7 |
5.7 FC-ALX5050D- Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX5050D-6R8MT | 6.80±20% | 24.5 | 27.5 | 6.60 | 6.00 | 5.70 | 6R8 |
| FC-ALX5050D-8R2MT | 8.20±20% | 8R2 | |||||
| FC-ALX5050D-100MT | 10.0±20% | 38.5 | 43.0 | 5.40 | 4.80 | 4.50 | 100 |
| FC-ALX5050D-150MT | 15.0±20% | 58.5 | 65.0 | 4.10 | 3.70 | 3.40 | 150 |
5.8 FC-ALX6015D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX6015D-R15MT | 0.15±20% | 2.25 | 2.50 | 25.0 | 22.0 | 21.7 | R15 |
| FC-ALX6015D-R33MT | 0.33±20% | 3.60 | 4.00 | 18.0 | 16.0 | 15.7 | R33 |
| FC-ALX6015D-1R0MT | 1.00±20% | 9.50 | 10.5 | 12.0 | 10.0 | 9.70 | 1R0 |
5.9 FC-ALX6020D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX6020D-R20MT | 0.20±20% | 2.05 | 2.30 | 30.0 | 27.0 | 26.7 | R20 |
| FC-ALX6020D-R45MT | 0.45±20% | 3.40 | 3.80 | 24.5 | 22.1 | 21.8 | R45 |
| FC-ALX6020D-R90MT | 0.90±20% | 5.85 | 6.50 | 16.5 | 15.0 | 14.7 | R90 |
| FC-ALX6020D-1R1MT | 1.10±20% | 8.80 | 9.85 | 15.5 | 13.5 | 13.2 | 1R1 |
Note:
1: DCR test data is referenced to 20°C ambient;
2: Isat: Peak current for approximately 30% rolloff at +20 °C;
3: Irms: DC current for an approximate temperature rise of 40 °C without core loss. Derating is necessary for AC currents. PCB
layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It
is recommended that the temperature of the part not exceed 125 °C under worst case operating conditions verified in the end
application. Max. Value,ΔT＜40℃；for Typ. Value, ΔT is approximate 40℃
6. Electrical Properties:
6.0 FC-ALX6030D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX6030D-R33MT | 0.33±20% | 2.30 | 2.50 | 31.0 | 27.0 | 26.7 | R33 |
| FC-ALX6030D-R47MT | 0.47±20% | 2.40 | 2.70 | 30.0 | 25.0 | 24.7 | R47 |
| FC-ALX6030D-R68MT | 0.68±20% | 3.10 | 3.50 | 26.0 | 22.5 | 22.2 | R68 |
| FC-ALX6030D-1R0MT | 1.00±20% | 4.75 | 5.30 | 22.6 | 17.8 | 17.5 | 1R0 |
| FC-ALX6030D-1R2MT | 1.20±20% | 5.60 | 6.50 | 21.5 | 15.9 | 15.6 | 1R2 |
| FC-ALX6030D-1R5MT | 1.50±20% | 6.80 | 7.50 | 16.5 | 15.1 | 14.8 | 1R5 |
| FC-ALX6030D-1R8MT | 1.80±20% | 8.60 | 9.50 | 15.5 | 13.0 | 12.7 | 1R8 |
| FC-ALX6030D-2R2MT | 2.20±20% | 9.70 | 10.8 | 15.0 | 12.5 | 12.2 | 2R2 |
| FC-ALX6030D-3R3MT | 3.30±20% | 14.3 | 15.8 | 14.5 | 11.0 | 10.8 | 3R3 |
| FC-ALX6030D-4R7MT | 4.70±20% | 21.2 | 23.5 | 10.5 | 9.50 | 9.20 | 4R7 |
6.1 FC-ALX6050D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX6050D-1R5MT | 1.50±20% | 5.00 | 5.50 | 20.0 | 18.0 | 17.7 | 1R5 |
| FC-ALX6050D-1R8MT | 1.80±20% | 5.70 | 6.30 | 18.5 | 16.5 | 16.2 | 1R8 |
| FC-ALX6050D-2R2MT | 2.20±20% | 5.80 | 6.50 | 16.0 | 14.5 | 14.2 | 2R2 |
| FC-ALX6050D-3R3MT | 3.30±20% | 8.55 | 9.50 | 14.0 | 12.0 | 11.7 | 3R3 |
| FC-ALX6050D-4R7MT | 4.70±20% | 13.0 | 14.5 | 11.5 | 10.0 | 9.70 | 4R7 |
| FC-ALX6050D-5R6MT | 5.60±20% | 13.5 | 14.8 | 10.5 | 9.50 | 9.20 | 5R6 |
| FC-ALX6050D-6R8MT | 6.80±20% | 16.5 | 18.5 | 10.2 | 9.20 | 8.90 | 6R8 |
| FC-ALX6050D-100MT | 10.0±20% | 23.5 | 26.5 | 8.50 | 7.80 | 7.50 | 100 |
6.2 FC-ALX7020D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX7020D-R82MT | 0.82±20% | 5.85 | 6.50 | 22.0 | 20.0 | 19.7 | R82 |
| FC-ALX7020D-1R0MT | 1.00±20% | 7.60 | 8.50 | 18.0 | 16.5 | 16.2 | 1R0 |
| FC-ALX7020D-1R2MT | 1.20±20% | 8.80 | 9.80 | 17.6 | 15.8 | 15.5 | 1R2 |
6.3 FC-ALX7030D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX7030D-R30MT | 0.30±20% | 1.65 | 1.90 | 46.0 | 41.0 | 35.5 | R30 |
| FC-ALX7030D-R47MT | 0.47±20% | 2.20 | 2.40 | 36.5 | 32.8 | 32.5 | R47 |
| FC-ALX7030D-R60MT | 0.60±20% | 2.55 | 2.80 | 36.0 | 32.5 | 32.2 | R60 |
| FC-ALX7030D-1R0MT | 1.00±20% | 3.50 | 3.80 | 28.0 | 25.0 | 24.7 | 1R0 |
| FC-ALX7030D-1R2MT | 1.20±20% | 4.10 | 4.50 | 25.0 | 22.5 | 22.2 | 1R2 |
| FC-ALX7030D-1R5MT | 1.50±20% | 5.80 | 6.50 | 23.5 | 21.0 | 20.7 | 1R5 |
| FC-ALX7030D-2R2MT | 2.20±20% | 8.10 | 9.00 | 18.0 | 16.5 | 16.2 | 2R2 |
| FC-ALX7030D-3R3MT | 3.30±20% | 12.2 | 13.5 | 12.8 | 11.5 | 11.2 | 3R3 |
| FC-ALX7030D-4R7MT | 4.70±20% | 15.8 | 17.5 | 10.5 | 9.50 | 9.20 | 4R7 |
| FC-ALX7030D-5R6MT | 5.60±20% | 18.5 | 20.5 | 10.2 | 9.20 | 8.90 | 5R6 |
| FC-ALX7030D-6R8MT | 6.80±20% | 25.5 | 28.5 | 9.50 | 8.60 | 8.30 | 6R8 |
6.4 FC-ALX7070D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX7070D-2R2MT | 2.20±20% | 4.85 | 5.40 | 20.0 | 18.0 | 17.7 | 2R2 |
| FC-ALX7070D-3R3MT | 3.30±20% | 5.85 | 6.50 | 19.5 | 17.8 | 17.5 | 3R3 |
6.5 FC-ALX1030D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX1030D-1R0MT | 1.00±20% | 2.60 | 2.90 | 30.0 | 27.0 | 26.7 | 1R0 |
| FC-ALX1030D-1R5MT | 1.50±20% | 4.10 | 4.50 | 25.0 | 22.5 | 22.0 | 1R5 |
6.6 FC-ALX1040D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX1040D-2R2MT | 2.20±20% | 4.30 | 4.80 | 25.5 | 23.0 | 22.7 | 2R2 |
| FC-ALX1040D-3R3MT | 3.30±20% | 6.10 | 6.75 | 18.0 | 16.5 | 16.2 | 3R3 |
6.7 FC-ALX1060D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX1060D-1R0MT | 1.00±20% | 1.75 | 1.95 | 48.0 | 43.2 | 40.0 | 1R0 |
| FC-ALX1060D-1R2MT | 1.20±20% | 1.90 | 2.10 | 40.0 | 36.0 | 35.0 | 1R2 |
| FC-ALX1060D-1R5MT | 1.50±20% | 2.25 | 2.50 | 36.0 | 32.5 | 32.0 | 1R5 |
| FC-ALX1060D-2R2MT | 2.20±20% | 3.20 | 3.50 | 30.0 | 27.5 | 27.2 | 2R2 |
| FC-ALX1060D-3R3MT | 3.30±20% | 4.60 | 5.10 | 26.0 | 23.5 | 23.2 | 3R3 |
| FC-ALX1060D-4R7MT | 4.70±20% | 6.20 | 6.85 | 22.5 | 20.5 | 20.2 | 4R7 |
| FC-ALX1060D-5R6MT | 5.60±20% | 7.10 | 7.85 | 19.7 | 17.8 | 17.5 | 5R6 |
| FC-ALX1060D-6R8MT | 6.80±20% | 7.70 | 8.50 | 18.5 | 16.8 | 16.5 | 6R8 |
| FC-ALX1060D-8R2MT | 8.20±20% | 12.1 | 13.5 | 16.9 | 15.2 | 15.0 | 8R2 |
| FC-ALX1060D-220MT | 22.0±20% | 31.5 | 35.0 | 10.0 | 9.00 | 8.70 | 220 |
6.8 FC-ALX1010D Series
| Part Number | Inductance | DCResistance | Saturation Current | Heat Rating Current | Marking | ||
| 1MHz/0.1V | Typ. | Max. | Typ. | Max. | 40℃ rise | ||
| Units | uH | mΩ | A | A | A | ||
| Symbol | L | DCR | Isat | Isat | Irms | - | |
| FC-ALX1010D-6R8MT | 6.80±20% | 6.84 | 7.60 | 21.8 | 19.8 | 19.5 | 6R8 |
| FC-ALX1010D-8R2MT | 8.20±20% | 8.10 | 9.00 | 20.0 | 18.0 | 17.7 | 8R2 |
| FC-ALX1010D-100MT | 10.0±20% | 9.50 | 10.5 | 18.0 | 16.5 | 16.2 | 100 |
| FC-ALX1010D-150MT | 15.0±20% | 13.5 | 15.0 | 15.5 | 14.0 | 13.8 | 150 |
| FC-ALX1010D-220MT | 22.0±20% | 18.5 | 20.5 | 13.0 | 11.8 | 11.6 | 220 |
Note:
1: DCR test data is referenced to 20°C ambient;
2: Isat: Peak current for approximately 30% rolloff at +20 °C;
3: Irms: DC current for an approximate temperature rise of 40 °C without core loss. Derating is necessary for AC currents. PCB layout, trace thickness and width, air-flow, and proximity of other heat generating components will affect the temperature rise. It is recommended that the temperature of the part not exceed 125 °C under worst case operating conditions verified in the end application.Value, ΔT＜40℃
7.2Carton ndimensions and packing quantity
| Product Series | Quantity/Reel | Inner Carton Quantity | Out Carton Quantity |
| FC-ALX3012D | 4000 pcs | (4000*4)=16000 pcs | (16000*3)=48000pcs |
| FC-ALX4015D | 3000 pcs | (3000*4)=12000 pcs | (12000*3)=36000pcs |
| FC-ALX4020D | 2500 pcs | (2500*4)=10000 pcs | (10000*3)=30000pcs |
| FC-ALX4030D | 2000 pcs | (2000*4)=8000 pcs | (8000*3)=24000pcs |
| FC-ALX5020D | 2500 pcs | (2500*3)=7500pcs | (7500*3)=22500pcs |
| FC-ALX5030D | 1500 pcs | (1500*3)=4500pcs | (4500*3)=13500pcs |
| FC-ALX5050D | 1000 pcs | (1000*3)=3000pcs | (3000*3)=9000pcs |
| FC-ALX6015D | 2000 pcs | (2000*3)=6000pcs | (6000*3)=18000pcs |
| FC-ALX6020D | 1500 pcs | (1500*3)=4500pcs | (4500*3)=13500pcs |
| FC-ALX6030D | 1000 pcs | (1000*3)=3000pcs | (3000*3)=9000pcs |
| FC-ALX6050D | 800 pcs | (800*3)=2400pcs | (2400*3)=7200pcs |
| FC-ALX7017D | 1500 pcs | (1500*3)=4500pcs | (4500*3)=13500pcs |
| FC-ALX7020D | 1500 pcs | (1500*3)=4500pcs | (4500*3)=13500pcs |
| FC-ALX7030D | 1000 pcs | (1000*3)=3000pcs | (3000*3)=9000pcs |
| FC-ALX7070D | 600 pcs | (600*3)= 1800pcs | (1800*3)=5400pcs |
| FC-ALX1030D | 800 pcs | (800*3)=2400pcs | (2400*3)=7200pcs |
| FC-ALX1040D | 700 pcs | (700*3)=2100pcs | (2100*3)=6300pcs |
| FC-ALX1060D | 500 pcs | (500*3)= 1500pcs | (1500*3)=4500pcs |
| FC-ALX1010D | 300 pcs | (300*3)=900pcs | (900*3)=2700pcs |
