- Ultra low cost
- Shielded constructions
- High current rating up to DC 36Amp
- High frequency range up to 5MHz
- Very low DC resistance
- Low Noise
- RoHS compliant
- Applications:
- PDA/Notebook/Desktop/Server applications
- DC/DC converter

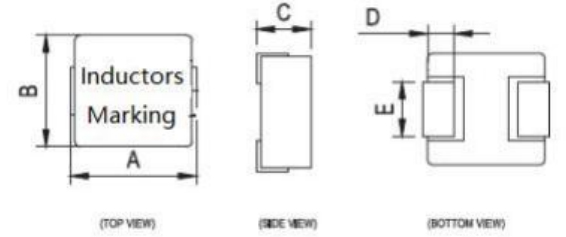

1.Shjavascript:void(0);apes and Dimensions
| Type | A | B | C | D | E |
| FCH0650 | 7.5MAX | 6.8MAX | 5.0 MAX | 1.6±0.3 | 3.0±0.3 |
2.Schematic:
3.layout recommendation: (mm)
4.FCH0650–Series:
| Part Number | Inductance(uH)±20% | DCR(mΩ) | Isat DC Curren | Irms DC Curren | |
| Typica | MAX | Typical | Typical | ||
| FCH0650-R15M | 0.15 | 0.92 | 1.30 | 32.0 | 36.0 |
| FCH0650-R22M | 0.22 | 1.50 | 2.10 | 30.0 | 28.0 |
| FCH0650-R33M | 0.33 | 2.20 | 2.70 | 24.0 | 21.5 |
| FCH0650-R56M | 0.56 | 3.4 | 3.6 | 22.0 | 20.0 |
| FCH0650-R68M | 0.68 | 4.2 | 4.5 | 20.0 | 18.0 |
| FCH0650-R82M | 0.82 | 4.5 | 6.0 | 17.0 | 16.0 |
| FCH0650-1R0M | 1.00 | 5.6 | 7.0 | 13.0 | 15.0 |
| FCH0650-1R5M | 1.50 | 7.0 | 10.0 | 11.5 | 10.0 |
| FCH0650-2R2M | 2.20 | 9.8 | 12.0 | 11.0 | 9.0 |
| FCH0650-3R3M | 3.30 | 13.0 | 16.0 | 9.0 | 8.0 |
| FCH0650-4R7M | 4.70 | 19.4 | 25.5 | 8.0 | 7.0 |
| FCH0650-5R6M | 5.60 | 22.0 | 28.0 | 7.0 | 6.5 |
| FCH0650-6R8M | 6.80 | 22.0 | 30.0 | 6.5 | 6.0 |
| FCH0650-8R2M | 8.20 | 40.4 | 47.5 | 7.0 | 6.3 |
| FCH0650-8R5M | 8.50 | 30.0 | 35.8 | 4.5 | 4.0 |
| FCH0650-100M | 10.00 | 40.4 | 47.5 | 6.5 | 6.0 |
| FCH0650-150M | 15.00 | 54.0 | 70.0 | 5.5 | 5.0 |
| FCH0650-180M | 18.00 | 82.0 | 95.0 | 5.0 | 4.5 |
| FCH0650-220M | 22.00 | 89.5 | 103.0 | 4.5 | 4.0 |
| FCH0650-330M | 33.00 | 147 | 170 | 3.2 | 2.0 |
| FCH0650-470M | 47.00 | 198 | 210 | 2.5 | 2.0 |
| FCH0650-560M | 56.00 | 266 | 290 | 1.8 | 1.2 |
| FCH0650-680M | 68.00 | 342 | 360 | 2.1 | 2.0 |
| FCH0650-820M | 82.00 | 440 | 484 | 2.0 | 1.5 |
| FCH0650-101M | 100.00 | 469 | 612 | 2.0 | 1.8 |
| FCH0650-151M | 150.00 | 890 | 950 | 1.2 | 0.7 |
(1)Inductance: 100KHz 0.1V
(2)Tolerance of inductance:±20%
(3)Isat: The value of curret indicates that inductance drops 30%( Typcial ) from its initial value
(4)Irms:The value of current indicates that the temperature of the coil is increase 40℃ (Typical)
(5)Test condition: Ta= 25℃
