- AEC-Q200 Grade 1 qualified (–40°C to +125°C ambient)
- Small surface mount current sensors
- Sensed current up to 7 A; Frequency range up to 1 MHz Very
- low primary DC resistance
- 1500 VDC, one minute isolation (hipot) between windings
- Can also be used in 48 V vehicle electrical systems
ELECTRIC CHARACTERICS)
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C
| Part Number | Turns Ration | Current Rating2 NP,(A) | Secondary Inductance(uH MIN) | DCR (Ω typ) | Hipot(VDC) | |
| Primary(4-3) | Secondary(2-1) | Np-Ns | ||||
| FC-SCT4.2-1:20 | 1:20 | 7 | 33 | 0.003 | 0.35 | 1500V |
| FC- SCT4.2-1:30 | 1:30 | 7 | 74 | 0.003 | 0.90 | 1500V |
| FC- SCT4.2-1:40 | 1:40 | 7 | 132 | 0.003 | 1.60 | 1500V |
| FC- SCT4.2-1:50 | 1:50 | 7 | 205 | 0.003 | 2.50 | 1500V |
| FC- SCT4.2-1:60 | 1:60 | 7 | 295 | 0.003 | 3.60 | 1500V |
| FC- SCT4.2-1:70 | 1:70 | 7 | 400 | 0.003 | 4.60 | 1500V |
| FC- SCT4.2-1:100 | 1:100 | 7 | 820 | 0.003 | 9.50 | 1500V |
| FC- SCT4.2-1:125 | 1:125 | 7 | 1280 | 0.003 | 13.0 | 1500V |
| FC- SCT4.2-1:150 | 1:150 | 7 | 1800 | 0.003 | 21.0 | 1500V |
Inductance measured between secondary pins at 100 kHz, 0.1 Vrms,
Ambient temperature -40°C to +125°C
Storage temperature Component: -40°C to +85°C

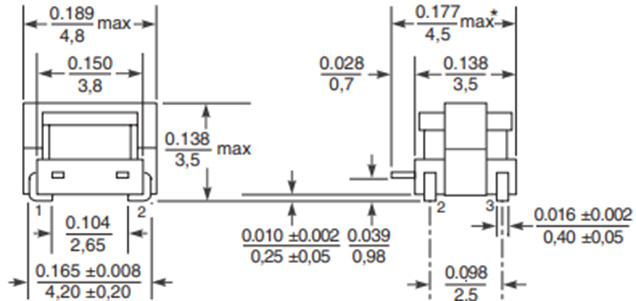

Dimensions:mm

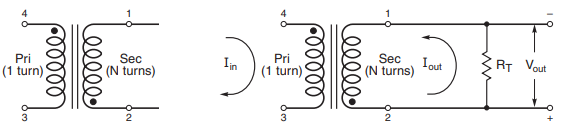

Schematic:
Recommended Land Pattern

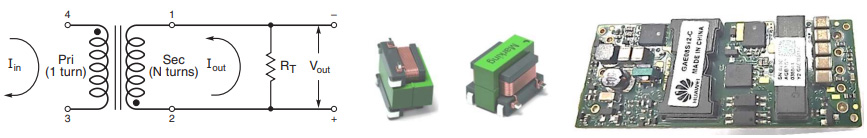

Typical Circuit

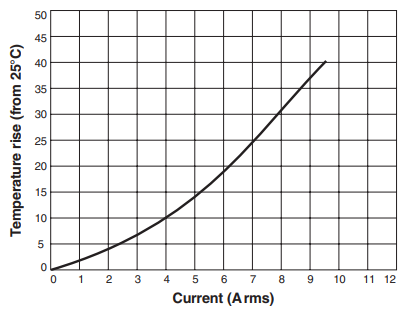

Temperature Rise vs Current
