- Ultra low cost
- Shielded constructions
- High current rating up to DC 23Amp
- High frequency range up to 5MHz
- Very low DC resistance
- Low Noise
- RoHS compliant
- Applications:
- PDA/Notebook/Desktop/Server applications
- DC/DC converter

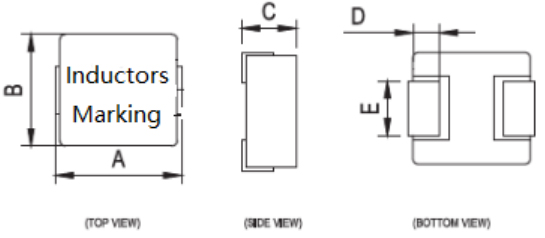

1.Shapes and Dimensions
| Type | A | B | C | D | E |
| FCH5030 | 5.7±0.3 | 5.2±0.3 | 3.0 MAX | 1.2±0.3 | 2.3±0.3 |
2.Schematic:
3.layout recommendation:(mm)
4.FCH5030 –Series:
| Part Number | Inductance(uH)±20% | DCR(mΩ) | Isat DC Curren | Irms DC Curren | |
| Typica | MAX | Typical | Typical | ||
| FCH5030-R15M | 0.15 | 2.3 | 2.7 | 20.0 | 23.0 |
| FCH0530-R20M | 0.20 | 3.6 | 4.3 | 18.0 | 17.0 |
| FCH5030-R22M | 0.22 | 3.5 | 5.5 | 17.0 | 16.0 |
| FCH5030-R33M | 0.33 | 6.5 | 8.0 | 15.5 | 15.0 |
| FCH5030-R47M | 0.47 | 6.5 | 8.5 | 19.0 | 13.0 |
| FCH5030-R68M | 0.68 | 11.0 | 12.0 | 11.5 | 9.9 |
| FCH5030-1R0M | 1.00 | 9.6 | 12.5 | 9.5 | 9.0 |
| FCH5030-1R2M | 1.20 | 12.0 | 16.0 | 9.0 | 8.0 |
| FCH5030-1R5M | 1.50 | 15.0 | 19.0 | 9.0 | 7.5 |
| FCH5030-2R2M | 2.20 | 18.7 | 22.0 | 7.0 | 6.5 |
| FCH5030-3R3M | 3.30 | 28.6 | 33.5 | 6.0 | 5.5 |
| FCH5030-4R7M | 4.70 | 45.6 | 54.0 | 5.0 | 4.5 |
| FCH5030-5R6M | 5.60 | 55.0 | 66.0 | 4.5 | 4.0 |
| FCH5030-6R8M | 6.80 | 74.0 | 86.0 | 4.0 | 3.5 |
| FCH5030-8R2M | 8.20 | 95.0 | 100.0 | 3.8 | 3.2 |
| FCH5030-100M | 10.00 | 89.8 | 104.0 | 3.5 | 3.0 |
| FCH5030-150M | 15.00 | 189.0 | 218.0 | 3.0 | 2.5 |
| FCH5030-220M | 22.00 | 298.0 | 342.0 | 2.0 | 1.5 |
| FCH5030-330M | 33.00 | 310.0 | 341.0 | 1.6 | 1.3 |
| FCH5030-470M | 47.00 | 379.0 | 436.0 | 1.6 | 1.2 |
| FCH5030-680M | 68.00 | 547.0 | 600.0 | 1.5 | 1.2 |
(1)Inductance: 100KHz 0.1V
(2)Tolerance of inductance:±20%
(3)Isat: The value of curret indicates that inductance drops 30%( Typcial ) from its initial value
(4)Irms:The value of current indicates that the temperature of the coil is increase 40℃ (Typical)
(5)Test condition: Ta= 25℃
Packaging:2000PCS
