- Lowest core losses (MnZn)
- High saturation current .
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM1435- 010 | 100 | 0.28 | 31 | 82.6 |
| FC-HCM1435 -012 | 120 | 71.3 | ||
| FC-HCM1435 -015 | 150 | 61.0 | ||
| FC-HCM1435 -018 | 180 | 55.0 | ||
| FC-HCM1435 -022 | 220 | 41.0 | ||
Inductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

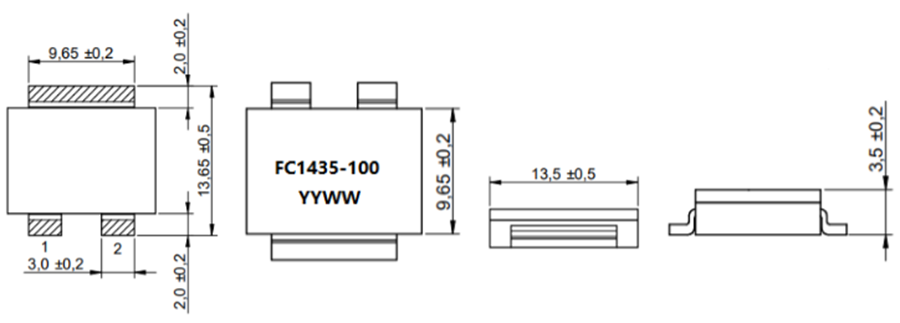

Dimensions:mm
Schematic:
RecommendeLand Pattern: mm
