- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(nH) | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM1390- 025 | 250 | 0.175 | 50 | 81.0 |
| FC-HCM1390- 033 | 330 | 62.5 | ||
| FC-HCM1390- 047 | 470 | 40.5 | ||
lInductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ
Dimensions:mm

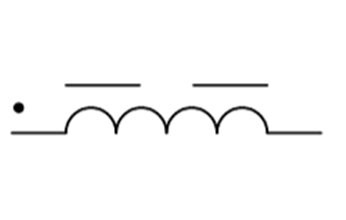

Schematic:
RecommendeLand Pattern: mm
