- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(nH) | DCR | Current(A) | |
| L±20% | mΩ±10% | Irms(typ) | Isat(typ) | |
| FC-HCM1340-R10M-45A | 100 | 0.225 | 45 | 60 |
| FC-HCM1340-R12M-45A | 120 | 0.225 | 45 | 53 |
| FC-HCM1340-R15M-45A | 150 | 0.225 | 45 | 40 |
| FC-HCM1340-R22M-45A | 220 | 0.225 | 45 | 30 |
| FC-HCM1340-R30M-45A | 300 | 0.225 | 45 | 18 |
| FC-HCM1340-R47M-45A | 470 | 0.225 | 45 | 12 |
lInductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

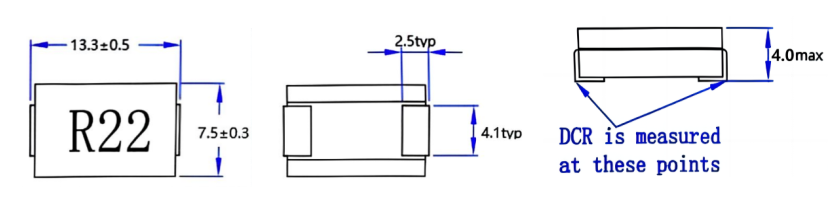

Dimensions:mm

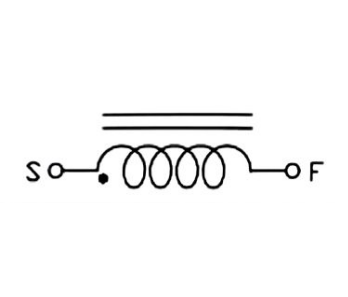

Schematic:

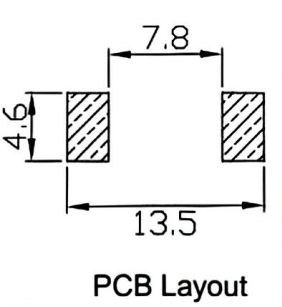

RecommendeLand Pattern: [mm]
