- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(nH) | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM1240- 010 | 100 | 0.17 | 26 | 52 |
| FC-HCM1240- 016 | 160 | 32 | ||
| FC-HCM1240 022 | 220 | 23 | ||
lInductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

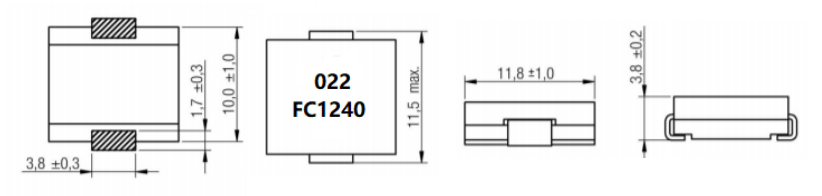

Dimensions:mm

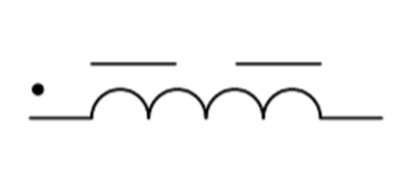

Schematic:

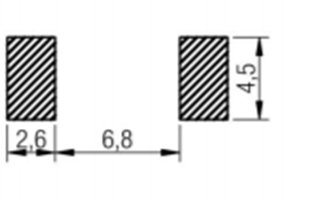

RecommendeLand Pattern: mm
