- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(nH) | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM1078 -010 | 0.10 | 0.29 | 38 | 105 |
| FC-HCM1078 -012 | 0.12 | 88.5 | ||
| FC-HCM1078 -015 | 0.15 | 75.0 | ||
| FC-HCM1078 -018 | 0.18 | 63.4 | ||
| FC-HCM1078 -022 | 0.22 | 48.4 | ||
| FC-HCM1078 -030 | 0.3 | 28.9 | ||
| FC-HCM1078 -040 | 0.4 | 24.1 | ||
lInductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

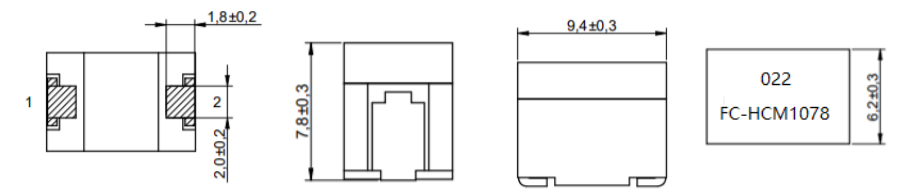

Dimensions:mm

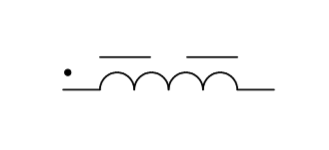

Schematic:
RecommendeLand Pattern: mm
