- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(nH) | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM1070- 015 | 150 | 0.37 | 27 | 58 |
| FC-HCM1070 -020 | 200 | 0.37 | 27 | 48 |
| FC-HCM1070 -025 | 250 | 0.37 | 27 | 44 |
| FC-HCM1070 -033 | 330 | 0.37 | 27 | 30 |
| FC-HCM1070 -040 | 400 | 0.37 | 27 | 26 |
lInductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

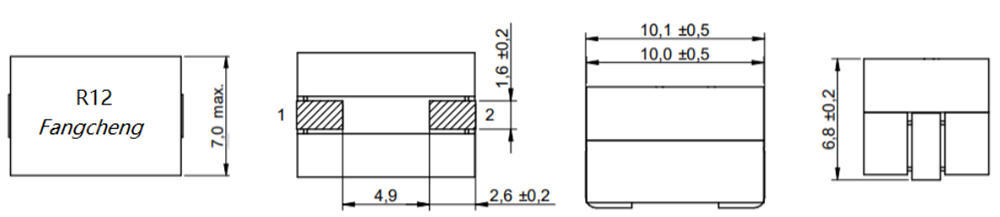

Dimensions:mm

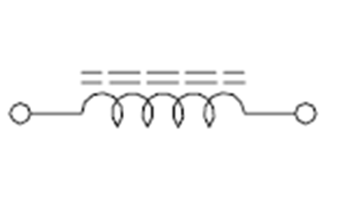

Schematic:
RecommendeLand Pattern: mm
