- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| NO. | ITEMS | MEASURINGPOINT | TECHNICALDATA | TEST CONDITION | INSTRUMENT |
| 1 | Inductors | （S-F） | 70nH±15% | 100KHz,1.0V,25℃ | HP4284A |
| 2 | DCR | （S-F） | 0.14mΩ±10% | 25℃ | CH502 |
| 3 | Isat 1 | (S-F) | 100A TYP/≧L0A*80% | 100KHz,1.0V,25℃ | 6240 |
| 4 | Isat 2 | (S-F) | 85A TYP/≧L0A*80% | 100KHz,1.0V,100℃ | 6240 |
| 5 | Isat 3 | (S-F) | 75A TYP/≧L0A*80% | 100KHz,1.0V,125℃ | 6240 |
| 6 | Irms | （S-F） | 65A TYP | △T≦40℃(Ta=25℃) | 6240 |
Ambient temperature :–40°C to +85°C
Operating temperature:–40°C to +125°C

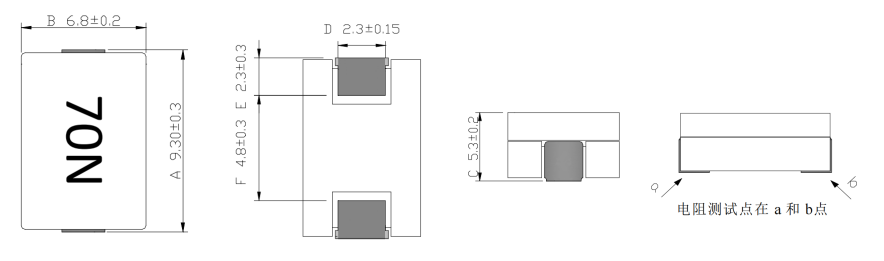

Dimensions:mm

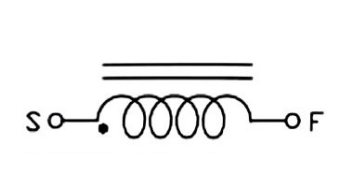

Schematic:

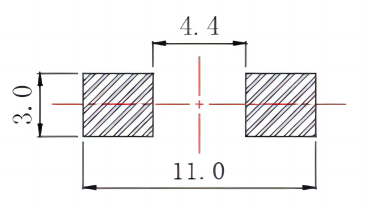

RecommendeLand Pattern: mm
