- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
LAYOUT RECOMMENDATION
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM9050 -006 | 0.06 | 0.22 | 37 | 65.6 |
| FC-HCM9050 -008 | 0.08 | 53.1 | ||
| FC-HCM9050 -010 | 0.10 | 43.1 | ||
| FC-HCM9050 - 015 | 0.15 | 32.3 | ||
| FC-HCM9050 - 022 | 0.22 | 21.6 | ||
Inductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

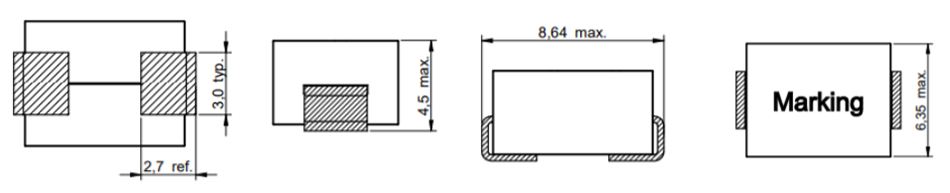

Dimensions:mm

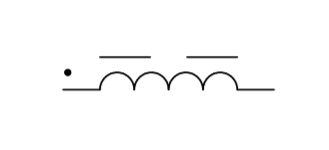

Schematic:
RecommendeLand Pattern: mm
