- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
Electrical Properties:
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM7070- 012 | 120 | 0.29 | 30 | 48 |
| FC-HCM7070 -016 | 160 | 0.29 | 30 | 41 |
| FC-HCM7070 -022 | 220 | 0.29 | 30 | 29 |
Inductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

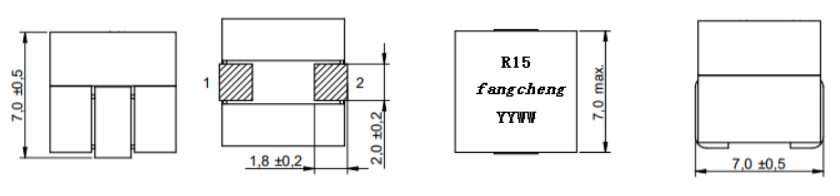

Dimensions:mm
Schematic:
RecommendeLand Pattern: mm
