- Lowest core losses (MnZn)
- High saturation current
- Extremely low DCR
- Magnetically shielded
- Operating temperature: –40 °C to +125 °C
- Recommended solder profile: Reflow
LAYOUT RECOMMENDATION
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C .
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ±7% | Irms | Isat | |
| FC-HCM7050- 007 | 70 | 0.235 | 30 | 60 |
| FC-HCM7050 -010 | 100 | 0.235 | 30 | 45 |
| FC-HCM7050 -015 | 150 | 0.235 | 30 | 32 |
Inductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

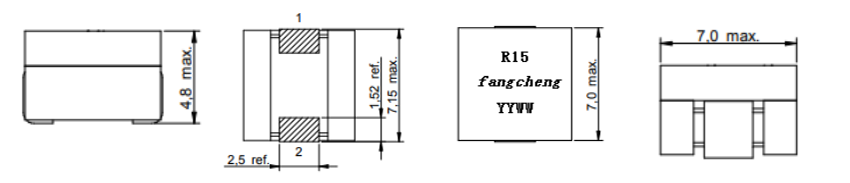

Dimensions:mm
Schematic:
RecommendeLand Pattern: [mm]
