- Excellent solderability and high heat resistance.
- Low cost and packed in embossed carrie tape.
- Frequency Range: 100kHz, 0.1 Vrms
- Ambient temperature –40°C to +105°C
- Storage temperature Component: –40°C to +125°C
FC-HCL1210A –Series
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ | Irms | Isat | |
| FC-HCL1210A –R22M | 0.22 | 0.53 | 27.0 | 60 |
| FC-HCL1210A –R33M | 0.33 | 0.53 | 27.0 | 55 |
| FC-HCL1210A –R47M | 0.47 | 0.72 | 26.0 | 48 |
| FC-HCL1210A –R68M | 0.68 | 0.72 | 26.0 | 38 |
| FC-HCL1210A–R82M | 0.82 | 1.17 | 24.0 | 36 |
| FC-HCL1210 A-1R0M | 1.00 | 1.17 | 24.0 | 32 |
| FC-HCL1210A-1R5M | 1.50 | 2.10 | 19.0 | 27 |
| FC-HCL1210A-2R2M | 2.20 | 3.05 | 18.0 | 23 |
| FC-HCL1210A-3R3M | 3.30 | 4.40 | 17.0 | 17 |
| FC-HCL1210A-4R7M | 4.70 | 6.35 | 15.5 | 17 |
| FC-HCL1210A-6R8M | 6.80 | 8.98 | 13.0 | 13 |
| FC-HCL1210A-8R2M | 8.20 | 9.9 | 13.0 | 12 |
| FC-HCL1210A-100M | 10.0 | 14.40 | 9.0 | 10 |
FC-HCL1210B –Series
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ | Irms | Isat | |
| FC-HCL1210B –R22M | 0.22 | 0.51 | 27.0 | 85 |
| FC-HCL1210B –R33M | 0.33 | 0.51 | 27.0 | 80 |
| FC-HCL1210B –R47M | 0.47 | 0.72 | 23.0 | 76 |
| FC-HCL1210 B–R68M | 0.68 | 0.72 | 23.0 | 74 |
| FC-HCL1210B–R82M | 0.82 | 1.15 | 21.0 | 66 |
| FC-HCL1210B -1R0M | 1.00 | 1.15 | 21.0 | 52 |
| FC-HCL1210B-1R5M | 1.50 | 2.0 | 18.5 | 50 |
| FC-HCL1210B-2R2M | 2.20 | 3.0 | 16.0 | 48 |
| FC-HCL1210B-3R3M | 3.30 | 6.0 | 13.0 | 39 |
| FC-HCL1210B-3R9M | 3.90 | 8.9 | 11.5 | 34 |
| FC-HCL1210B-4R7M | 4.70 | 8.9 | 11.5 | 33 |
lInductance Test Freq. ： 100KHz /0.1VIrms base on Temp. rise 40℃ max.;Isat base on △ L / LOA=30% typ.

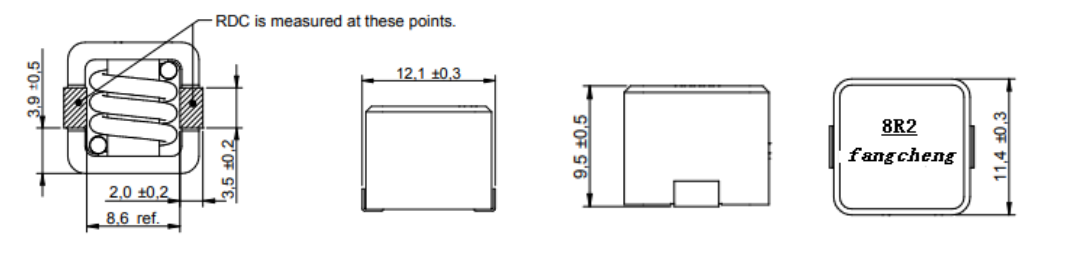

Dimensions:mm

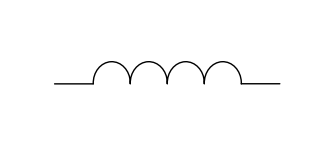

Schematic:
Recommende Land Pattern: [mm]
