- Excellent solderability and high heat resistance.
- Low cost and packed in embossed carrie tape.
- Frequency Range: 100kHz, 0.1 Vrms
- Ambient temperature –40°C to +105°C
- Storage temperature Component: –40°C to +125°C
LAYOUT RECOMMENDATION
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ | Irms | Isat | |
| FC-HCL1090 –R22M | 0.22 | 0.60 | 21.5 | 60.0 |
| FC-HCL1090 –R33M | 0.33 | 0.60 | 21.5 | 55.0 |
| FC-HCL1090 –R47M | 0.47 | 0.80 | 20.5 | 47.0 |
| FC-HCL1090 –R68M | 0.68 | 1.35 | 20.0 | 38.0 |
| FC-HCL1090–R82M | 0.82 | 1.35 | 20.0 | 36.0 |
| FC-HCL1090 -1R0M | 1.00 | 1.35 | 20.0 | 27.5 |
| FC-HCL1090-1R5M | 1.50 | 2.50 | 18.0 | 27.0 |
| FC-HCL1090-2R2M | 2.20 | 3.70 | 16.5 | 22.0 |
| FC-HCL1090-3R3M | 3.30 | 5.40 | 14.0 | 15.5 |
| FC-HCL1090-4R7M | 4.70 | 8.2 | 13.0 | 15.0 |
| FC-HCL1090-6R8M | 6.80 | 13.2 | 11.5 | 11.0 |
| FC-HCL1090-8R2M | 8.20 | 13.2 | 11.5 | 8.0 |
| FC-HCL1090-100M | 10.0 | 20.7 | 9.0 | 8.0 |
Inductance Test Freq. ： 100KHz /0.1VIrms
base on Temp. rise 40℃ max.;
Isat base on △ L / LOA=30% typ

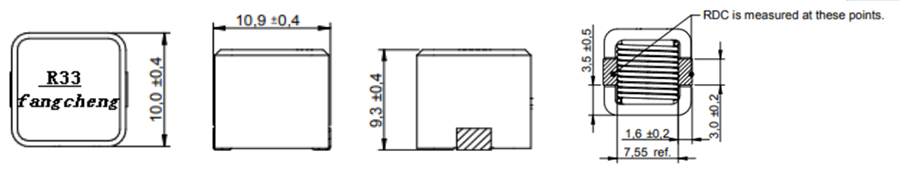

Dimensions:mm
Schematic:
RecommendeLand Pattern: [mm ]
