- Excellent solderability and high heat resistance.
- Low cost and packed in embossed carrie tape.
- Frequency Range: 100kHz, 0.1 Vrms
- Ambient temperature –40°C to +105°C
- Storage temperature Component: –40°C to +125°C
LAYOUT RECOMMENDATION
| Part Number | Inductance(uH)p | DCR | Current(A) | |
| L±20% | mΩ | Irms | Isat | |
| FC-HCL8070 -R30M | 0.30 | 1.40 | 20.5 | 36.0 |
| FC-HCL8070 –R47M | 0.47 | 1.72 | 19.0 | 32.0 |
| FC-HCL8070 -R68M | 068 | 1.72 | 19.0 | 23.5 |
| FC-HCL8070 -1R0M | 1.0 | 2.95 | 17.0 | 24.0 |
| FC-HCL8070 -1R5M | 1.5 | 4.4 | 16.5 | 18.5 |
| FC-HCL8070 -2R2M | 2.2 | 4.4 | 16.5 | 12.5 |
| FC-HCL8070 -3R3M | 3.3 | 6.5 | 14.0 | 8.5 |
Inductance Test Freq. ： 100KHz /0.1VIrms base on Temp. rise 40℃ max.;Isat base on △ L / LOA=30% typ

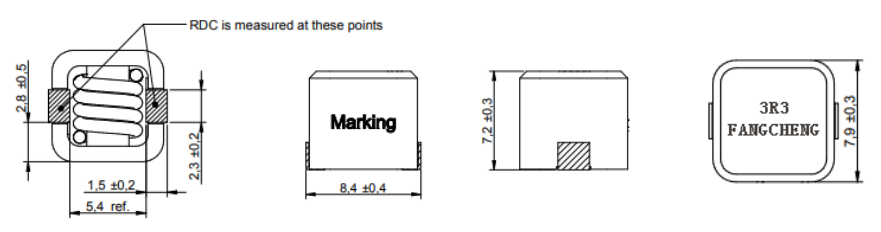

Dimensions:mm
Schematic:
RecommendeLand Pattern: [mm]
