FC-HER7030-1890-Series SMD Flat Wire High Current Inductor

Industrial computers
High current switching regulators
DC/DC converter
Filter
Magnetically shielded
Flat wire coil for low losses at high frequency
Low stray field
Operating temperature: –40 °C to +125°C / +150 °C / +155°C
Recommended solder profile: Reflow

Download PDF

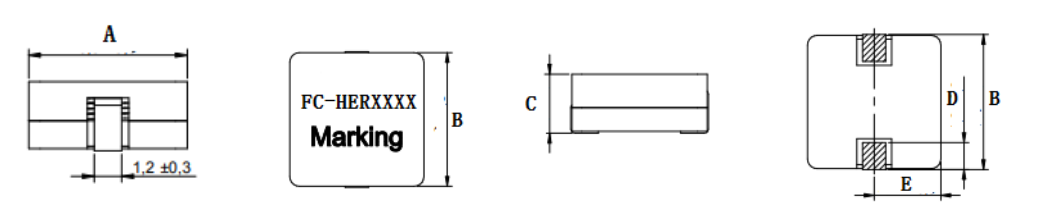

1. Dimensions: [mm]

FC-HER7030-1890-Series SMD Flat Wire High Current Inductor

Part Number	A	B	C	D	E	F	G	H
FC-HER7030	6.9±0.3	7.0±0.3	3.0±0.3	1.8±0.3	3.45±0.3	2.2	2.7	2.4
FC-HER7040	6.9±0.3	7.0±0.3	3.8±0.3	1.8±0.3	3.45±0.3	2.2	2.7	2.4
FC-HER7050	6.9±0.3	7.0±0.3	4.8±0.3	1.8±0.3	3.45±0.3	2.2	2.7	2.4
FC-HER1030	10.6±0.3	10.6±0.4	2.8±0.3	2.6±0.3	5.3±0.3	3.5	3.5	4.5
FC-HER1040	10.2±0.5	10.5±0.5	4.0±0.2	2.0±0.5	5.1±0.45	4.0	3.5	4.5
FC-HER1050	10.2±0.5	10.5±1.0	4.7±0.3	3.0±1.0	5.1±0.45	4.0	3.85	3.8
FC-HER1335	12.8±0.5	12.9±0.5	3.3±0.3	2.4±0.3	6.4±0.5	4.5	4.25	6.0
FC-HER1350	12.8±0.5	13.0±1.0	4.7±0.3	3.0±1.0	6.4±0.5	5.0	4.5	6.0
FC-HER1365	12.8±0.5	13.0±1.0	6.2±0.3	3.0±1.0	6.4±0.5	5.0	4.5	6.0
FC-HER1890	18.2±0.5	18.3±1.0	8.9±0.3	5.01.0	9.0±1.0	6.0	6.0	7.3

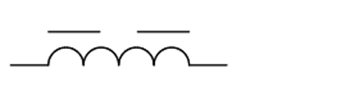

2.Schematic:

FC-HER7030-1890-Series SMD Flat Wire High Current Inductor

3. Recommended Land Pattern: [mm]

FC-HER7030-1890-Series SMD Flat Wire High Current Inductor

4. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER7030-013	0.13	0.11	0.91	22	48	SuperfIux	1500
FC-HER7030-024	0.24	0.22	1.8	18	40
FC-HER7030-055	0.52	0.43	3.7	14	20
FC-HER7030-095	0.95	0.71	6.2	11	13
FC-HER7030-115	1.15	1.00	8.6	8.5	13
FC-HER7030-150	1.50	1.25	12.7	7.5	12
FC-HER7030-200	2.00	1.55	14.2	6.5	9

5. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER7040-022	0.22	0.18	1.10	21	32	SuperfIux	1000
FC-HER7040-047	0.40	0.32	1.85	19	25
FC-HER7040-068	0.68	0.52	3.10	17	20
FC-HER7040-100	1.00	0.78	4.60	15	19
FC-HER7040-150	1.50	1.12	6.60	11	14
FC-HER7040-220	2.20	1.75	11.4	9.0	13
FC-HER7040-330	3.30	2.75	17.2	6.5	11
FC-HER7040-470	4.70	3.50	19.5	6.0	7

6. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER7050-024	0.24	0.19	1.00	20.0	28	SuperfIux	100
FC-HER7050-047	0.47	0.38	1.35	18.0	20
FC-HER7050-076	0.76	0.60	2.25	15.5	15
FC-HER7050-110	1.10	0.78	3.15	15.0	13
FC-HER7050-200	2.00	1.35	5.85	11.5	9.0
FC-HER7050-330	3.30	2.20	9.0	9.0	8.0

7. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER7050-490	4.90	3.40	14.5	6.5	6.5	SuperfIux	1000
FC-HER7050-650	6.50	4.50	21.5	6.0	6.0
FC-HER7050-760	7.60	6.00	28.5	4.2	4.8
FC-HER7050-850	8.50	6.80	30.4	4.0	4.5
FC-HER7050-101	10.0	7.50	33.0	3.5	4.0

8. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1030-020	0.20	0.18	0.82	22	50	SuperfIux	800
FC-HER1030-033	0.33	0.29	2.17	18	36
FC-HER1030-056	0.56	0.48	2.17	18	33
FC-HER1030-068	0.68	0.55	4.79	14	21
FC-HER1030-100	1.0	0.82	4.79	14	21
FC-HER1030-120	1.2	0.94	6.60	12	15
FC-HER1030-150	1.5	1.28	6.60	12	18
FC-HER1030-220	2.2	1.90	11.38	9	15

9. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1040-215	0.15	0.103	0.58	25	60	FC-PERM	800
FC-HER1040-230	0.30	0.25	1.10	22	35
FC-HER1040-256	0.56	0.47	1.61	20	30
FC-HER1040-2100	1.00	0.78	3.30	16	20
FC-HER1040-2150	1.50	1.10	5.30	14	17
FC-HER1040-2200	2.00	1.48	7.30	11	13

10. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1040-2280	2.80	2.10	10.36	9.5	11	FC-PERM	800
FC-HER1040-2430	4.30	3.00	14.1	8.0	8
FC-HER1040-2560	5.60	4.00	20.6	6.7	7.5

11. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1050-016	0.16	0.14	0.51	25	58	SuperfIux	700
FC-HER1050-040	0.40	0.33	0.67	24	37
FC-HER1050-072	0.72	0.6	1.30	22	35
FC-HER1050-120	1.2	1.0	1.80	20	25
FC-HER1050-180	1.8	1.4	3.50	16	18
FC-HER1050-240	2.4	1.8	4.75	14	17
FC-HER1050-330	3.3	2.4	5.90	12	15
FC-HER1050-420	4.2	3.3	7.10	11	14
FC-HER1050-550	5.5	4.1	10.30	10	13
FC-HER1050-650	6.5	5.0	12.50	8.4	10
FC-HER1050-780	7.8	6.0	13.60	8.0	9.5
FC-HER1050-1000	10.0	7.6	16.30	7.2	8.5
FC-HER1050-1600	16.0	12.7	34.50	5.0	6.5

12. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1335-035	0.25	0.22	0.75	24	60	SuperfIux	400
FC-HER1335-068	0.68	0.47	1.58	22	40
FC-HER1335-120	1.2	0.84	2.85	17	28
FC-HER1335-180	1.8	1.45	5.60	14	22
FC-HER1335-220	2.2	1.75	5.70	14	18
FC-HER1335-330	3.3	2.45	8.10	12	14

13. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1350-019	0.19	017	0.5	29	60	SuperfIux	400
FC-HER1350-047	047	041	0.9	26	50
FC-HER1350-090	0.90	066	1.6	24	28
FC-HER1350-140	1.40	1.05	2.4	22	26
FC-HER1350-230	2.30	1.60	3.7	17.5	17
FC-HER1350-320	3.20	2.20	5.3	16.0	15
FC-HER1350-480	4.80	3.55	10.5	11.0	13
FC-HER1350-600	6.00	4.70	13.5	9.5	11.5
FC-HER1350-820	8.20	6.10	11.6	10.0	11.0
FC-HER1350-101	10.0	7.80	14.1	8.5	10.0

14. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER1365-122	0.20	017	0.35	32	65	SuperfIux	400
FC-HER1365-147	0.47	0.41	0.67	30	50
FC-HER1365-182	0.82	0.64	0.90	27	35
FC-HER1365-1130	1.30	0.90	1.80	25	25
FC-HER1365-1200	2.00	1.40	2.60	23	22
FC-HER1365-1280	2.80	1.85	3.30	20	17.5
FC-HER1365-1370	3.70	2.60	4.90	17	16.0
FC-HER1365-1470	4.70	3.40	7.00	13	15.0
FC-HER1365-1600	6.00	4.50	8.40	12	14.0
FC-HER1365-1730	7.30	5.00	5.90	13	12.0
FC-HER1365-1920	9.20	6.60	7.80	12	10.5
FC-HER1365-1111	11.3	7.50	9.10	11	9.5
FC-HER1365-1131	13.0	9.0	11.2	10	9.0
FC-HER1365-1151	15.4	10.0	14.8	9	8.0
FC-HER1365-1181	18.0	13.0	22.0	7.5	7.5
FC-HER1365-1221	22.0	16.0	24.7	6.0	6.5
FC-HER1365-1331	33.0	24.0	30.5	5.5	5.5

15. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER18090-6080	0.82	0.72	0.54	41.5	65	FC-PERM2	150
FC-HER18090--6130	1.30	1.15	0.94	34.5	62
FC-HER18090-6190	1.90	1.60	1.20	32.5	52
FC-HER18090-6260	2.60	2.15	1.58	31.5	50

16. ELECTRIC CHARACTERICS

Order Code	L±20%(μh)	LR(μh)	RDC±10%（mΩ）	IR(A)	Isat(A)	Core MateriaI	Qty.
FC-HER18090-350	3.50	3.00	3.10	22.5	37	FC-PERM2	150
FC-HER18090-450	4.50	3.80	3.40	20.5	37
FC-HER18090-560	5.60	4.80	3.70	19.5	33
FC-HER18090-680	6.80	5.60	4.10	18.5	27
FC-HER18090-100	10.0	8.20	6.90	15.0	21.5
