- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current
- Suitable for high power home theater system and AV amplifier

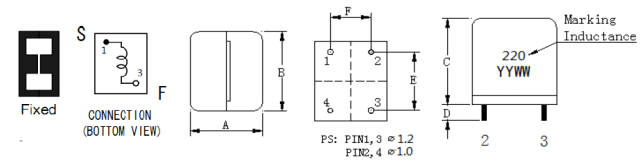

1.Dimensions(mm)
| N0. | A±0.5 | B±0.5 | C max | D±0.5 | E±0.5 | F±0.5 |
| Spec. | 20 | 23 | 23 | 3.5 | 15.5 | 10.5 |
2.Electrical characteristics
| Part Number | Code | L (uH)±20% | DCR (m Ω)Max | Isat (A) | Irms (A) |
| DEP23-100M | 100 | 10 | 9.6 | 43.0 | 15.0 |
| DEP23-120M | 120 | 12 | 9.6 | 37.0 | 15.0 |
| DEP23-150M | 150 | 15 | 9.6 | 30.4 | 15.0 |
| DEP23-180M | 180 | 18 | 9.6 | 25.7 | 15.0 |
| DEP23-220M | 220 | 22 | 9.6 | 21.0 | 15.0 |
| DEP23-330M | 330 | 33 | 9.6 | 17.0 | 15.0 |
| DEP23-470M | 470 | 47 | 9.6 | 15.0 | 15.0 |
1.Measurement Frequency for Inductance: 100KHz/0.25V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
