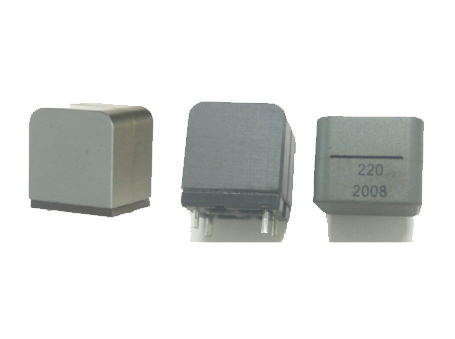

- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current
- Suitable for high power home theater system and AV amplifier

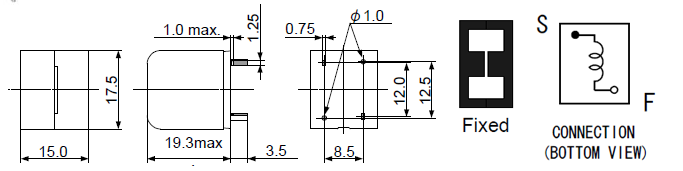

1.Dimensions(mm)
2.Electrical characteristics
| Part Number | Code | L (uH)±20% | DCR (m Ω)Max | Isat (A) | Irms (A) |
| DEP17B-100M | 100 | 10 | 9.2 | 26 | 15 |
| DEP17B-150M | 150 | 15 | 9.2 | 15 | 15 |
| DEP17B-220M | 220 | 22 | 9.2 | 13 | 15 |
| DEP17B-330M | 330 | 33 | 9.2 | 7.5 | 15 |
1.Measurement Frequency for Inductance: 100KHz/0.25V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
