- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current

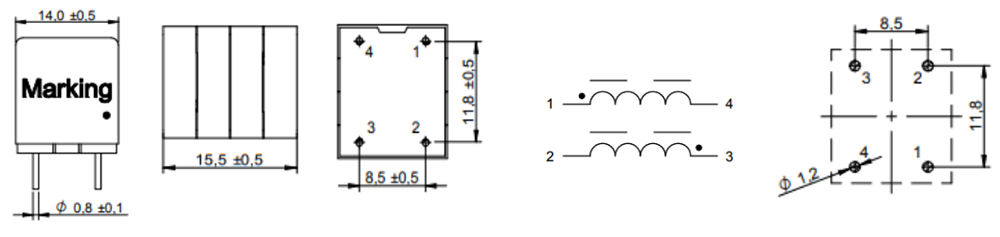

1.Dimensions(mm)
2.Electrical characteristics
| Part Number | Code | L (uH)±20% | DCR (m Ω)Max | Isat (A) | Irms (A) |
| DEP1415-8R2M | 8R2 | 8.2 | 9.2 | 16.0 | 7.0 |
| DEP1415-100M | 100 | 10.0 | 9.2 | 12.5 | 7.0 |
| DEP1415-150M | 150 | 15.0 | 16.5 | 8.4 | 5.4 |
| DEP1415-220M | 220 | 22.0 | 18.0 | 6.2 | 5.1 |
1.Measurement Frequency for Inductance: 100KHz/0.25V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
