- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current

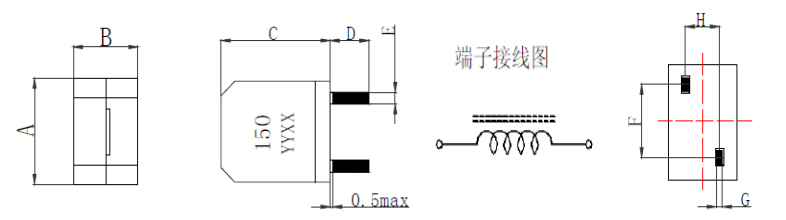

1.Dimensions(mm)
| N0. | A±0.5 | B±0.5 | C max | D±0.5 | E±0.3 | F max | G/typ | H±0.3 |
| Spec. | 14.0 | 10.0 | 16.0 | 5.0 | 1.8 | 0.5 | 0.5 | 9.2 |
2.Electrical characteristics
| Part Number | Code | L (uH)±20% | DCR (m Ω)Max | Isat (A) | Irms (A) |
| DEP1410-100 | 100 | 10 | 8.5 | 8.3 | 7.3 |
| DEP1410-150 | 150 | 15 | 8.5 | 7.5 | 7.3 |
| DEP1410-220 | 220 | 22 | 8.5 | 6.5 | 7.3 |
| DEP1410-330 | 330 | 33 | 8.5 | 4.0 | 7.3 |
1.Measurement Frequency for Inductance: 100KHz0.3V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
