- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current

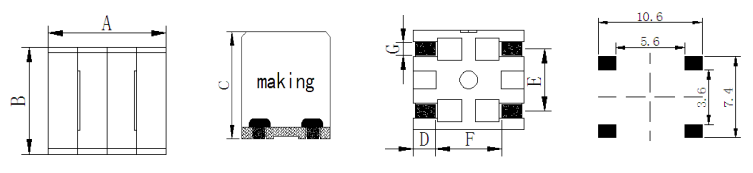

1.Dimensions(mm)
| N0. | A±0.3 | B±0.3 | C max | D typ | E typ | F typ | G typ |
| Spec. | 10.0 | 9.0 | 10.0 | 1.9 | 5.5 | 6.2 | 1.2 |
2.Electrical characteristics
| Part Number | Code | L (uH)±20% | DCR (m Ω)Max | Isat (A) | Irms (A) |
| DEP0910-5R0M | 5R0 | 5.0 | 18.7 | 7.16 | 6.0 |
| DEP0910-100M | 100 | 10 | 22 | 5.6 | 5.0 |
| DEP0910-120M | 120 | 12 | 25.0 | 5.0 | 4.8 |
| DEP0910-150M | 150 | 15 | 39.2 | 4.8 | 3.5 |
| DEP0910-220M | 220 | 22 | 51.6 | 3.5 | 3.5 |
1.Measurement Frequency for Inductance: 100KHz/0.3V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
