- Compact size using flat wire
- Low radiation noise by magnetically shielded construction
- Small,low resistance and High current

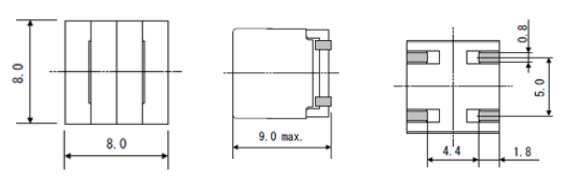

1.Dimensions(mm)
2.Electrical characteristics
| Part Number | Code | L(uH)±30% | DCR(mΩ)Max | Isat (A) | Irms (A) |
| DEP0809-4R8M | 4R8 | 4.8 | 22 | 6.2 | 3.6 |
| DEP0809-8R0M | 8R0 | 8.0 | 36 | 5.0 | 2.9 |
| DEP0809-100M | 100 | 10 | 40 | 4.3 | 2.7 |
| DEP0809-150M | 150 | 15 | 54 | 3.6 | 2.3 |
| DEP0809-220M | 220 | 22 | 90 | 3.0 | 1.8 |
1.Measurement Frequency for Inductance: 100KHz/0.3V
2.DC saturation allowable current: Inductance drift is within-25% at the superposition.
3.Temperature rise allowable current :A rise in temperature of surface of core is within 40℃
4.Ambient temperature –40°C to +85°C
5.Storage temperature Component: –40°C to +125°
