SMD Power Inductors semi shielded- FCNR-Series FCNR2510-8040Series

Magnetic–resin shielded construction reduces buzz noise to ultra–low levels
Metallization on ferrite core results in exce llent shock resistance and damage–free durability
Closed magnitic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
30% higher current rating than conventional inductors of equal size Takes up less PCB real estate and save more power

Download PDF

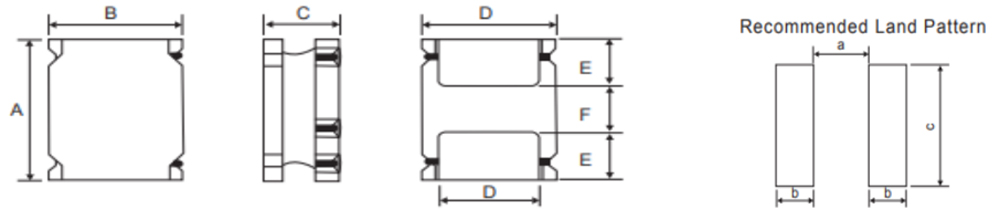

1.SHAPES AND DIMENSIONS Unit:mm

SMD Power Inductors semi shielded- FCNR-Series FCNR2510-8040Series

PartNumber	A	B	C	D	E	F	a(Typ)	b(Typ)	c(Typ)
FCNR2510	2.5±0.1	2.0±0.1	1.0Max	1.5±0.2	0.80±0.2	0.80±0.2	0.80	0.85	2.0
FCNR2512	2.5±0.1	2.0±0.1	1.2Max	1.5±0.2	0.80±0.2	0.80±0.2	0.80	0.85	2.0
FCNR3010	3.0±0.1	3.0±0.1	1.0Max	2.5±0.2	0.75±0.2	1.5±0.2	1.5	0.8	2.7
FCNR3012	3.0±0.1	3.0±0.1	1.2Max	2.5±0.2	0.75±0.2	1.5±0.2	1.5	0.8	2.7
FCNR3015	3.0±0.1	3.0±0.1	1.5Max	2.5±0.2	0.75±0.2	1.5±0.2	1.5	0.8	2.7
FCNR4010	4.0±0.2	4.0±0.2	1.0Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR4012	4.0±0.1	4.0±0.1	1.2Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR4018	4.0±0.1	4.0±0.1	1.8Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR4020	4.0±0.1	4.0±0.1	2.0Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR4026	4.0±0.1	4.0±0.1	2.6Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR4030	4.0±0.1	4.0±0.1	3.0Max	3.3±0.2	0.95±0.2	2.1±0.2	1.9	1.1	3.7
FCNR5020	5.0±0.1	5.0±0.1	2.0Max	4.0±0.2	1.25±0.2	2.5±0.2	2.3	1.4	4.2
FCNR5040	5.0±0.1	5.0±0.1	4.0Max	4.0±0.2	1.25±0.2	2.5±0.2	2.3	1.4	4.2
FCNR6010	6.0±0.1	6.0±0.1	1.0Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR6012	6.0±0.1	6.0±0.1	1.2Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR6020	6.0±0.1	6.0±0.1	2.0Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR6028	6.0±0.1	6.0±0.1	2.8Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR6040	6.0±0.1	6.0±0.1	4.0Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR6045	6.0±0.1	6.0±0.1	4.5Max	4.9±0.2	1.55±0.2	2.9±0.2	2.8	1.7	5.7
FCNR8040	8.0±0.1	8.0±0.1	4.2Max	6.3±0.2	2.0±0.2	4.0±0.2	3.8	2.2	7.5

2.ELECTRICAL CHARACTERISTICS

FCNR2510- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR2510-R47	0.47±30%	0.056	0.047	206	2.50	3.35	2.35	2.56
FCNR2510-R56	0.56±30%	0.072	0.060	160	2.90	3.20	2.00	2.18
FCNR2510-R68	0.68±30%	0.074	0.062	129	2.20	2.75	2.00	2.18
FCNR2510-1R0	1.0±30%	0.108	0.090	100	1.85	2.20	1.65	1.80
FCNR2510-1R5	1.5±30%	0.182	0.152	81	1.80	2.10	1.30	1.42
FCNR2510-2R2	2.2±30%	0.209	0.174	61	1.20	1.60	1.20	1.31
FCNR2510-3R3	3.3±30%	0.328	0.273	47	1.05	1.30	0.90	0.98
FCNR2510-4R7	4.7±20%	0.563	0.469	42	0.95	1.15	0.70	0.76
FCNR2510-5R6	5.6±20%	0.563	0.469	35	0.80	0.95	0.73	0.80
FCNR2510-6R8	6.8±20%	0.896	0.747	31	0.78	0.92	0.59	0.64
FCNR2510-100	10±20%	1.092	0.910	27	0.65	0.78	0.50	0.55

FCNR2512- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR2512-R47	0.47±30%	0.061	0.047	160	3.82	4.27	2.15	2.34
FCNR2512-R68	0.68±30%	0.074	0.057	140	3.28	3.68	1.95	2.13
FCNR2512-1R0	1.0±30%	0.090	0.069	110	2.29	2.90	1.93	2.10
FCNR2512-1R2	1.2±30%	0.129	0.099	100	2.38	2.67	1.45	1.59
FCNR2512-1R5	1.5±20%	0.147	0.113	97	2.24	2.51	1.40	1.52
FCNR2512-2R2	2.2±20%	0.216	0.166	69	1.85	2.07	1.10	1.35
FCNR2512-2R7	2.7±20%	0.329	0.184	63	1.72	1.92	1.09	1.19
FCNR2512-3R3	3.3±20%	0.264	0.203	62	1.61	1.80	1.04	1.13
FCNR2512-3R6	3.6±20%	0.348	0.268	53	1.46	1.64	0.90	0.98
FCNR2512-4R3	4.3±20%	0.377	0.290	51	1.37	1.53	0.87	0.95
FCNR2512-4R7	4.7±20%	0.377	0. 290	47	1.12	1.25	0.75	0.92
FCNR2512-5R1	5.1±20%	0.500	0.385	44	1.23	1.37	0.73	0.82
FCNR2512-5R6	5.6±20%	0.538	0.414	38	1.11	1.25	0.73	0.80
FCNR2512-6R2	6.2±20%	0.542	0.417	38	1.03	1.16	0.69	0.80
FCNR2512-6R8	6.8±20%	0.581	0.447	38	0.98	1.09	0.68	0.74
FCNR2512-7R5	7.5±20%	0.611	0.470	35	0.97	1.09	0.65	0.74
FCNR2512-9R1	9.1±20%	0.690	0.531	34	0.91	1.02	0.62	0.68
FCNR2512-100	10±20%	0.690	0.531	34	0.79	0.88	0.62	0.68
FCNR2512-120	12±20%	1.075	0.827	28	0.78	0.88	0.51	0.56
FCNR2512-150	15±20%	1.591	1.224	25	0.68	0.77	0.42	0.46
FCNR2512-220	22±20%	1.976	1.520	20	0.53	0.59	0.38	0.41

FCNR3010- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR3010-1R0	1.0±30%	0.085	0.065	180	1.40	2.10	1.45	1.80
FCNR3010-1R2	1.2±30%	0.085	0.065	137	1.25	1.70	1.45	1.80
FCNR3010-1R5	1.5±30%	0.104	0.080	120	1.27	1.70	1.30	1.60
FCNR3010-2R2	2.2±30%	0.143	0.110	100	1.15	1.50	1.09	1.40
FCNR3010-2R7	2.7±30%	0.169	0.130	90	1.00	1.20	1.02	1.40
FCNR3010-3R3	3.3±30%	0.189	0.145	74	0.97	1.20	0.96	1.20
FCNR3010-3R6	3.6±30%	0.215	0.165	67	0.95	1.20	0.90	1.10
FCNR3010-4R7	4.7±20%	0.293	0.225	59	0.75	1.05	0.77	1.10
FCNR3010-5R6	5.6±20%	0.322	0.248	40	0.58	0.65	0.70	1.05
FCNR3010-6R8	6.8±20%	0.397	0.305	42	0.55	0.72	0.66	0.96
FCNR3010-8R2	8.2±20%	1.520	0.400	23	0.55	0.7	0.58	0.7
FCNR3010-100	10±20%	0.52	0.400	39	0.55	0.75	0.58	0.70
FCNR3010-120	12±20%	0.657	0.505	36	0.43	0.65	0.52	0.67
FCNR3010-150	15±20%	0.793	0.610	30	0.43	0.57	0.47	0.57
FCNR3010-220	22±20%	1.209	0.930	28	0.35	0.48	0.38	0.52
FCNR3010-270	27±20%	1.404	1.080	25	0.30	0.45	0.35	0.50
FCNR3010-330	33±20%	2.015	1.550	18	0.29	0.42	0.30	0.55
FCNR3010-390	39±20%	2.275	1.750	18	0.28	0.38	0.28	0.53
FCNR3010-430	43±20%	2.340	1.800	18	0.23	0.36	0.27	0.52
FCNR3010-470	47±20%	2.535	1.950	18	0.22	0.35	0.26	0.52
FCNR3010-510	51±20%	2.86	2.200	18	0.21	0.33	0.25	0.48
FCNR3010-560	56±20%	3.016	2.320	16	0.21	0.28	0.24	0.35

FCNR3012- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR3012-R22	0.22±30%	0.022	0.017	321	5.30	6.00	3.00	3.30
FCNR3012-R82	0.82±30%	0.039	0.030	180	2.05	2.80	2.47	3.00
FCNR3012-1R0	1.0±30%	0.052	0.040	120	1.87	2.80	2.20	2.70
FCNR3012-1R2	1.2±30%	0.059	0.045	120	2.22	2.50	2.01	2.20
FCNR3012-1R5	1.5±30%	0.059	0.045	110	1.62	1.90	2.01	2.20
FCNR3012-1R8	1.8±30%	0.082	0.063	90	1.30	1.90	1.65	1.80
FCNR3012-2R2	2.2±30%	0.098	0.075	84	1.20	1.90	1.55	1.70
FCNR3012-2R4	2.4±30%	0.088	0.068	100	1.15	1.50	1.60	1.70
FCNR3012-2R7	2.7±30%	0.110	0.085	65	1.14	1.50	1.48	1.50
FCNR3012-3R3	3.3±20%	0.130	0.100	64	1.05	1.50	1.36	1.40
FCNR3012-3R6	3.6±20%	0.130	0.100	36	1.05	1.50	1.36	1.40
FCNR3012-3R9	3.9±20%	0.189	0.145	61	1.00	1.50	1.24	1.30
FCNR3012-4R7	4.7±20%	0.156	0.120	61	0.90	1.00	1.24	1.30
FCNR3012-6R8	6.8±20%	0.247	0.190	61	0.75	0.90	0.98	1.10
FCNR3012-100	10±20%	0.345	0.265	42	0.60	0.88	0.83	0.90
FCNR3012-120	12±20%	0.449	0.345	32	0.48	0.67	0.73	0.84
FCNR3012-150	15±20%	0.468	0.360	27	0.45	0.62	0.71	0.77
FCNR3012-180	18±20%	0.709	0.545	25	0.43	0.59	0.58	0.65
FCNR3012-220	22±20%	0.839	0.645	23	0.42	0.52	0.53	0.59
FCNR3012-270	27±20%	1.131	0.870	21	0.35	0.48	0.47	0.51
FCNR3012-330	33±20%	1.138	0.875	18	0.36	0.46	0.46	0.50
FCNR3012-360	36±20%	1.235	0.950	18	0.34	0.44	0.44	0.48
FCNR3012-390	39±20%	1.729	1.330	18	0.30	0.39	0.37	0.41
FCNR3012-470	47±20%	1.885	1.450	14	0.27	0.35	0.35	0.40
FCNR3012-560	56±20%	1.79	0.380	9	0.26	0.33	0.28	0.40
FCNR3012-680	68±20%	2.171	1.670	12	0.24	0.29	0.33	0.37
FCNR3012-820	82±20%	3.302	2.540	12	0.17	0.27	0.27	0.31
FCNR3012-101	100±20%	3.718	2.860	12	0.21	0.23	0.25	0.29

FCNR3015- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR3015-R50	0.50±30%	0.039	0.030	162	3.90	4.20	2.60	2.80
FCNR3015-1R0	1.0±30%	0.039	0.030	150	2.32	2.80	2.35	2.50
FCNR3015-1R5	1.5±30%	0.065	0.050	100	2.30	2.70	1.70	2.20
FCNR3015-1R8	1.8±30%	0.065	0.050	92	1.75	2.20	1.70	2.20
FCNR3015-2R2	2.2±30%	0.078	0.060	86	1.60	2.00	1.60	2.00
FCNR3015-2R7	2.7±30%	0.098	0.075	64	1.52	1.90	1.43	1.90
FCNR3015-3R3	3.3±20%	0.104	0.080	68	1.32	1.81	1.36	1.60
FCNR3015-3R6	3.6±20%	0.137	0.105	59	1.28	1.60	1.20	1.50
FCNR3015-3R9	3.9±20%	0.137	0.105	47	1.20	1.40	1.20	1.50
FCNR3015-4R3	4.3±20%	0.150	0.115	53	1.20	1.40	1.14	1.30
FCNR3015-4R7	4.7±20%	0.163	0.125	46	1.10	1.40	1.09	1.30
FCNR3015-5R1	5.1±20%	0.173	0.133	49	1.00	1.20	1.05	1.20
FCNR3015-6R2	6.2±20%	0.254	0.195	46	1.00	1.20	0.86	1.00
FCNR3015-6R8	6.8±20%	0.260	0.200	39	0.85	1.10	0.85	1.10
FCNR3015-100	10±20%	0.325	0.250	41	0.72	0.92	0.77	0.90
FCNR3015-120	12±20%	0.416	0.320	32	0.70	0.90	0.68	0.89
FCNR3015-150	15±20%	0.455	0.350	30	0.66	0.88	0.65	0.72
FCNR3015-180	18±20%	0.599	0.430	23	0.56	0.72	0.59	0.72
FCNR3015-220	22±20%	0.598	0.460	23	0.52	0.68	0.57	0.69
FCNR3015-270	27±20%	0.949	0.730	22	0.48	0.56	0.45	0.56
FCNR3015-330	33±20%	1.066	0.820	20	0.44	0.53	0.43	0.51
FCNR3015-390	39±20%	1.294	0.995	14	0.41	0.55	0.39	0.44
FCNR3015-430	43±20%	1.378	1.060	16	0.37	0.43	0.37	0.48
FCNR3015-470	47±20%	1.625	1.250	14	0.35	0.43	0.35	0.44
FCNR3015-560	56±20%	2.664	1.280	13	0.33	0.42	0.34	0.41
FCNR3015-620	62±20%	2.093	1.610	13	0.30	0.40	0.30	0.41
FCNR3015-680	68±20%	3.510	2.700	11	0.28	0.37	0.23	0.31
FCNR3015-101	100±20%	4.043	3.110	100	0.23	0.25	0.21	0.25
FCNR3015-151	150±20%	4.940	3.800	150	0.18	0.22	0.19	0.23

FCNR4010- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FC-NR4010-1R0	1.0±30%	0.067	0.056	116	2.00	2.30	1.90	2.40
FC-NR4010-1R5	1.5±30%	0.084	0.070	94	1.68	2.00	1.70	2.00
FC-NR4010-2R2	2.2±20%	0.102	0.085	73	1.20	1.50	1.50	2.00
FC-NR4010-3R3	3.3±20%	0.120	0.100	58	1.10	1.10	1.40	1.80
FC-NR4010-4R7	4.7±20%	0.168	0.140	47	0.95	1.10	1.20	1.50
FC-NR4010-6R8	6.8±20%	0.240	0.200	38	0.80	0.95	1.00	1.20
FC-NR4010-100	10±20%	0.360	0.300	31	0.62	0.75	0.75	1.00
FC-NR4010-150	15±20%	0.516	0.430	24	0.54	0.61	0.60	0.85
FC-NR4010-220	22±20%	0.684	0.570	19	0.45	0.52	0.50	0.75

FCNR4012- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR4012-R82	0.82±30%	0.065	0.050	150	3.02	3.30	1.65	2.50
FCNR4012-1R0	1.0±30%	0.065	0.050	120	2.61	3.20	1.65	2.50
FCNR4012-1R5	1.5±30%	0.085	0.065	90	2.10	2.70	1.46	2.50
FCNR4012-1R8	1.8±30%	0.104	0.080	88	2.12	2.60	1.32	1.90
FCNR4012-2R2	2.2±30%	0.104	0.080	74	1.76	2.30	1.32	1.90
FCNR4012-2R7	2.7±30%	0.117	0.090	71	1.90	2.30	1.25	1.70
FCNR4012-3R3	3.3±30%	0.143	0.110	60	1.72	2.10	1.12	1.60
FCNR4012-3R6	3.6±30%	0.143	0.110	57	1.20	1.70	1.12	1.60
FCNR4012-4R3	4.3±30%	0.182	0.140	54	1.58	1.70	1.00	1.50
FCNR4012-4R7	4.7±30%	0.163	0.125	50	1.15	1.80	1.05	1.50
FCNR4012-5R1	5.1±30%	0.201	0.155	50	1.55	1.60	0.95	1.50
FCNR4012-5R6	5.6±30%	0.182	0.140	42	1.00	1.60	1.00	1.20
FCNR4012-6R8	6.8±20%	0.257	0.198	40	0.85	1.40	0.84	1.20
FCNR4012-100	10±20%	0.345	0.265	33	0.80	1.10	0.77	1.00
FCNR4012-120	12±20%	0.377	0.290	32	0.66	1.00	0.70	0.95
FCNR4012-150	15±20%	0.442	0.340	25	0.56	0.80	0.64	0.85
FCNR4012-180	18±20%	0.611	0.470	23	0.55	0.75	0.55	0.80
FCNR4012-220	22±20%	0.763	0.587	20	0.46	0.70	0.49	0.75
FCNR4012-270	27±20%	0.936	0.720	18	0.50	0.70	0.45	0.60
FCNR4012-330	33±20%	1.053	0.810	17	0.42	0.60	0.42	0.58
FCNR4012-360	36±20%	1.170	0.900	14	0.40	0.50	0.40	0.56
FCNR4012-390	39±20%	1.430	1.100	16	0.55	0.66	0.37	0.50
FCNR4012-470	47±20%	1.430	1.100	12	0.35	0.50	0.37	0.50
FCNR4012-560	56±20%	1.625	1.250	11	0.33	0.45	0.33	0.46
FCNR4012-680	68±20%	2.535	1.950	11	0.38	0.45	0.27	0.45
FCNR4012-820	82±20%	2.782	2.140	11	0.28	0.40	0.26	0.36
FCNR4012-101	100±20%	2.873	2.210	9.4	0.25	0.30	0.25	0.35

FCNR4018- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR4018-R47	0.47±30%	0.018	0.014	155	4.30	5.20	4.00	4.50
FCNR4018-R68	0.68±30%	0.026	0.020	128	4.90	5.60	3.30	3.80
FCNR4018-1R0	1.0±30%	0.033	0.025	80	4.80	5.20	2.00	3.30
FCNR4018-1R5	1.5±30%	0.039	0.080	65	3.35	4.00	1.80	3.20
FCNR4018-1R8	1.8±30%	0.044	0.084	54	3.00	3.40	2.00	2.80
FCNR4018-2R2	2.2±20%	0.059	0.045	52	2.70	3.20	1.65	2.60
FCNR4018-3R3	3.3±20%	0.091	0.070	44	2.45	2.90	1.23	2.10
FCNR4018-4R7	4.7±20%	0.117	0.090	34	1.70	2.20	1.20	1.80
FCNR4018-6R8	6.8±20%	0.143	0.110	29	1.45	2.00	1.06	1.50
FCNR4018-100	10±20%	0.234	0.180	24	1.30	1.60	0.84	1.20
FCNR4018-150	15±20%	0.325	0.250	19	0.94	1.10	0.65	1.00
FCNR4018-220	22±20%	0.468	0.360	16	0.80	0.88	0.59	0.85
FCNR4018-330	33±20%	0.689	0.530	12	0.56	0.75	0.49	0.72
FCNR4018-470	47±20%	0.845	0.650	10	0.57	0.70	0.42	0.65
FCNR4018-680	68±20%	1.300	1.000	8.3	0.47	0.51	0.32	0.52
FCNR4018-101	100±20%	2.275	1.750	6.5	0.40	0.44	0.25	0.41
FCNR4018-151	150±20%	3.250	2.500	5.5	0.31	0.34	0.22	0.36
FCNR4018-221	220±20%	5.200	4.000	4	0.27	0.30	0.17	0.27

FCNR4020- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR4020-R24	0.24±30%	0.014	0.011	283	10.5	12.5	4.50	5.20
FCNR4020-R33	0.33±30%	0.016	0.013	223	7.50	8.50	3.30	4.90
FCNR4020-R47	0.47±30%	0.029	0.022	160	7.00	7.50	3.30	3.70
FCNR4020-R68	0.68±30%	0.036	0.028	120	6.40	6.60	2.80	3.30
FCNR4020-1R0	1.0±30%	0.038	0.029	75	4.78	5.20	2.15	3.20
FCNR4020-1R5	1.5±30%	0.046	0.035	71	4.45	4.90	1.98	3.00
FCNR4020-2R2	2.2±30%	0.052	0.040	49	3.40	3.70	1.85	2.80
FCNR4020-3R3	3.3±20%	0.091	0.070	44	3.20	3.50	1.40	2.50
FCNR4020-3R6	3.6±20%	0.072	0.055	49	2.80	3.00	1.54	2.50
FCNR4020-4R7	4.7±20%	0.098	0.075	42	2.35	2.50	1.34	2.00
FCNR4020-5R1	5.1±20%	0.111	0.085	42	2.30	2.50	1.27	1.80
FCNR4020-5R6	5.6±20%	0.117	0.090	30	2.20	2.40	1.22	1.80
FCNR4020-6R2	6.2±20%	0.150	0.115	36	2.15	2.30	1.08	1.60
FCNR4020-6R8	6.8±20%	0.163	0.125	33	2.20	2.40	1.04	1.60
FCNR4020-7R5	7.5±20%	0.150	0.115	30	1.85	2.00	1.08	1.50
FCNR4020-8R2	8.2±20%	0.163	0.125	27	1.75	1.90	1.04	1.40
FCNR4020-100	10±20%	0.215	0.165	26	1.60	1.70	0.90	1.20
FCNR4020-120	12±20%	0.228	0.175	26	1.50	1.60	0.88	1.20
FCNR4020-150	15±20%	0.299	0.230	24	1.35	1.50	0.77	1.10
FCNR4020-220	22±20%	0.455	0.350	15	1.05	1.10	0.62	0.87
FCNR4020-270	27±20%	0.709	0.545	14	1.02	1.10	0.50	0.70
FCNR4020-330	33±20%	0.715	0.550	11	0.85	0.93	0.49	0.68
FCNR4020-390	39±20%	0.845	0.650	11	0.82	0.90	0.46	0.64
FCNR4020-430	43±20%	0.858	0.660	10	0.77	0.85	0.45	0.63
FCNR4020-470	47±20%	0.923	0.710	10	0.74	0.81	0.44	0.61
FCNR4020-510	51±20%	0.975	0.750	10	0.70	0.77	0.42	0.59
FCNR4020-560	56±20%	1.040	0.800	10	0.66	0.72	0.41	0.57
FCNR4020-620	62±20%	1.170	0.900	9.6	0.65	0.71	0.39	0.52
FCNR4020-680	68±20%	1.380	1.060	7.7	0.61	0.67	0.36	0.50
FCNR4020-750	75±20%	1.510	0.160	7.7	0.70	0.77	0.35	0.049
FCNR4020-820	82±20%	1.520	1.170	7.2	0.50	0.55	0.34	0.47
FCNR4020-101	100±20%	2.020	1.550	6.3	0.48	0.53	0.31	0.43

FCNR4026- Series：

Part Number	Inductance @100KHz,1V	DCRΩ	S.R.F MHz	Isat/ A	Irms /A
Units	L uH	Max.	Typ.	Min.	Max.
FCNR4026-1R0	1.0±30%	0.024	151	3.30	3.00
FCNR4026-1R2	1.2±30%	0.030	120	3.10	2.30
FCNR4026-1R5	1.5±30%	0.030	100	2.40	2.30
FCNR4026-2R2	2.2±30%	0.040	96	2.10	2.00
FCNR4026-3R3	3.3±20%	0.050	58	1.80	1.70
FCNR4026-4R7	4.7±20%	0.055	46	1.45	1.60
FCNR4026-6R8	6.8±20%	0.065	33	1.30	1.50
FCNR4026-100	10±20%	0.085	26	1.00	1.30
FCNR4026-150	15±20%	0.110	19	0.90	1.10
FCNR4026-220	22±20%	0.165	13	0.60	0.90
FCNR4026-330	33±20%	0.270	9	0.55	0.70
FCNR4026-470	47±20%	0.300	6	0.40	0.65

FCNR4030- Series：

Part Number	Inductance @100KHz,1V	DCRΩ	S.R.F MHz	Isat/ A	Irms /A
Units	L uH	Max.	Typ.	Min.	Max.
FCNR4030-R68	0.68±30%	0.010	130	6.80	4.56
FCNR4030-1R0	1.0±30%	0.014	70	5.26	4.15
FCNR4030-1R5	1.5±30%	0.020	62	4.84	3.34
FCNR4030-1R8	1.8±30%	0.025	60	5.40	3.20
FCNR4030-2R2	2.2±20%	0.030	52	4.90	2.95
FCNR4030-3R3	3.3±20%	0.040	38	3.30	2.40
FCNR4030-3R6	3.6±20%	0.040	37	3.00	2.40
FCNR4030-3R9	3.9±20%	0.057	32	3.00	2.10
FCNR4030-4R3	4.3±20%	0.055	37	2.95	2.10
FCNR4030-4R7	4.7±20%	0.060	31	2.90	2.00
FCNR4030-5R6	5.6±20%	0.065	30	2.60	1.95
FCNR4030-6R8	6.8±20%	0.090	24	2.75	1.60
FCNR4030-7R5	7.5±20%	0.085	26	2.20	1.65
FCNR4030-8R2	8.2±20%	0.090	26	2.10	1.60
FCNR4030-100	10±20%	0.100	21	1.95	1.50
FCNR4030-120	12±20%	0.135	18	1.70	1.30
FCNR4030-150	15±20%	0.190	16	1.65	1.11
FCNR4030-180	18±20%	0.200	10	1.40	1.10
FCNR4030-220	22±20%	0.225	10	1.30	1.00
FCNR4030-270	27±20%	0.260	10	1.15	0.90
FCNR4030-330	33±20%	0.330	10	1.10	0.84
FCNR4030-360	36±20%	0.335	9.8	1.05	0.83
FCNR4030-390	39±20%	0.435	10	1.03	0.73
FCNR4030-470	47±20%	0.445	8.4	0.95	0.72
FCNR4030-510	51±20%	0.470	8.4	0.90	0.70
FCNR4030-560	56±20%	0.555	8.4	0.85	0.65
FCNR4030-620	62±20%	0.585	7	0.8	0.63
FCNR4030-680	68±20%	0.868	7	0.72	0.52
FCNR4030-750	75±20%	1.020	6.3	0.70	0.48
FCNR4030-820	82±20%	1.060	5.6	0.66	0.47
FCNR4030-910	91±20%	1.100	5.6	0.65	0.46
FCNR4030-101	100±20%	1.150	5.6	0.60	0.45
FCNR4030-121	120±20%	1.350	5.4	0.55	0.42
FCNR4030-151	150±20%	1.800	4.	0.50	0.30
FCNR4030-221	220±20%	2.500	4.2	0.40	0.35
FCNR4030-331	330±20%	4.000	6.8	0.30	0.25
FCNR4030-471	470±20%	7.200	2	0.30	0.20
FCNR4030-501	500±20%	6.944	2	0.28	0.15
FCNR4030-681	680±20%	7.580	1.2	0.19	0.14

FCNR5012- Series：

Part Number	Inductance @100KHz,1V	DCRΩ		S.R.F MHz	Isat/ A		Irms /A
Units	uH	Typ.	Max.	A	Typ.	Max.	Typ.	Max.
FCNR5012-1R0	1.0±30%	0.068	0.057	103	4.40	4.70	2.00	2.40
FCNR5012-1R5	1.5±30%	0.068	0.072	68	3.70	3.80	1.90	2.20
FCNR5012-2R2	2.2±30%	0.108	0.09	50	3.10	3.20	1.70	2.00
FCNR5012-3R3	3.3±30%	0.151	0.126	34	2.40	2.60	1.40	1.70
FCNR5012-4R7	4.7±30%	0.197	0.164	31	2.20	2.30	1.30	1.50
FCNR5012-6R8	6.8±20%	0.294	0.245	22	1.70	1.90	1.00	1.20
FCNR5012-100	10±20%	0.413	0.344	1	1.40	1.50	0.85	1.00
FCNR5012-150	15±20%	0.523	0.436	13	1.20	1.30	0.80	0.92
FCNR5012-220	220±20%	0.858	0.780	16	0.88	0.98	0.60	0.68

FCNR5020- Series：

Part Number	Inductance @100KHz,1V	DCRΩ		S.R.F MHz	Isat/ A		Irms /A
Units	uH	Typ.	Max.	A	Typ.	Max.	Typ.	Max.
FCNR5020-R22	0.22±30%	0.014	0.009	280	9.00	12.00	5.30	6.00
FCNR5020-R24	0.24±30%	0.011	0.009	248	8.00	10.00	5.30	6.00
FCNR5020-R47	0.47±30%	0.017	0.013	160	6.15	6.70	4.60	5.00
FCNR5020-R56	0.56±30%	0.022	0.017	137	8.50	9.60	3.80	4.20
FCNR5020-R68	0.68±30%	0.022	0.017	120	5.50	6.00	4.00	4.40
FCNR5020-R75	0.75±30%	0.022	0.017	117	5.50	6.00	4.00	4.40
FCNR5020-1R0	1.0±30%	0.026	0.020	114	4.10	5.00	3.80	4.10
FCNR5020-1R2	1.2±30%	0.029	0.020	83	4.50	4.90	3.55	3.90
FCNR5020-1R5	1.5±30%	0.034	0.026	68	4.10	4.50	3.20	3.50
FCNR5020-2R2	2.2±30%	0.042	0.032	57	3.20	4.00	2.90	3.10
FCNR5020-2R7	2.7±30%	0.049	0.038	52	2.99	3.50	2.70	2.90
FCNR5020-3R0	3.0±30%	0.049	0.038	49	2.55	2.80	2.70	2.90
FCNR5020-3R3	3.3±30%	0.056	0.043	46	2.55	3.00	2.50	2.70
FCNR5020-3R6	3.6±30%	0.056	0.043	43	2.80	3.00	2.05	2.70
FCNR5020-3R9	3.9±30%	0.056	0.043	40	2.30	2.80	2.50	2.70
FCNR5020-4R3	4.3±20%	0.074	0.057	37	2.50	3.00	2.20	2.40
FCNR5020-4R7	4.7±20%	0.074	0.057	37	2.50	2.70	2.20	2.40
FCNR5020-5R1	5.1±20%	0.083	0.064	32	2.25	2.60	2.05	2.20
FCNR5020-5R6	5.6±20%	0.083	0.064	32	2.30	2.50	2.05	2.20
FCNR5020-6R8	6.8±20%	0.198	0.083	30	2.05	2.20	1.80	1.90
FCNR5020-7R5	7.5±20%	0.117	0.090	26	1.85	2.00	1.75	1.90
FCNR5020-8R2	8.2±20%	0.127	0.098	26	1.85	2.00	1.65	1.80
FCNR5020-9R1	9.1±20%	0.143	0.110	24	1.70	1.80	1.55	1.70
FCNR5020-100	10±20%	0.143	0.110	24	1.70	1.80	1.55	1.70
FCNR5020-120	12±20%	0.182	0.140	22	1.50	1.60	1.40	1.50
FCNR5020-150	15±20%	0.215	0.165	20	1.35	1.40	1.25	1.30
FCNR5020-180	18±20%	0.260	0.200	16	1.25	1.30	1.15	1.20
FCNR5020-220	22±20%	0.294	0.226	14	1.15	1.20	1.10	1.20
FCNR5020-330	33±20%	0.507	0.390	10	0.92	1.00	0.90	0.99
FCNR5020-470	47±20%	0.680	0.523	7	0.77	0.84	0.77	0.84
FCNR5020-560	56±20%	0.819	0.630	6	0.77	0.84	0.70	0.77
FCNR5020-680	68±20%	0.962	0.740	6	0.65	0.70	0.64	0.70
FCNR5020-820	82±20%	1.158	0.965	6	0.65	0.75	0.50	0.60
FCNR5020-101	100±20%	1.430	1.100	6	0.53	0.58	0.53	0.58
FCNR5020-121	120±20%	1.755	1.350	6	0.42	0.53	0.40	0.50
FCNR5020-201	200±20%	2.600	2.000	4.5	0.30	0.33	0.40	0.45

FCNR5040- Series：

Part Number	Inductance @100KHz,1V	DCR Ω	S.R.F MHz	Isat/ A	Irms /A
Units	uH	Max.	MHz.	A	A
FCNR5040-1R0	1.0±30%	0.012	117	7.35	4.00
FCNR5040-1R5	1.5±30%	0.015	86	6.30	4.30
FCNR5040-1R8	1.8±30%	0.016	55	6.30	4.15
FCNR5040-2R2	2.2±20%	0.019	50	5.50	3.80
FCNR5040-2R7	2.7±20%	0.022	37	4.90	3.60
FCNR5040-3R0	3.0±20%	0.022	37	4.30	36.0
FCNR5040-3R3	3.3±20%	0.024	32	4.15	3.40
FCNR5040-3R6	3.6±20%	0.026	30	3.95	3.30
FCNR5040-3R9	3.9±20%	0.027	29	3.80	3.20
FCNR5040-4R7	4.7±20%	0.030	28	.55	3.00
FCNR5040-5R6	5.6±20%	0.035	27	3.50	2.80
FCNR5040-6R8	6.8±20%	0.043	21	3.00	2.50
FCNR5040-8R2	8.2±20%	0.048	20	2.90	2.30
FCNR5040-100	10±20%	0.064	18	2.35	2.10
FCNR5040-150	15±20%	0.086	13	2.00	2.00
FCNR5040-220	22±20%	0.129	11	1.60	1.50
FCNR5040-330	33±20%	0.188	9	1.30	1.20
FCNR5040-470	47±20%	0.272	7	1.10	1.00
FCNR5040-680	68±20%	0.400	6	0.90	0.80
FCNR5040-101	100±20%	0.560	5	0.75	0.70

FCNR6010- Series：

Part Number	Inductance @100KHz,1V	DCR Ω	S.R.F MHz	Isat/ A	Irms /A
Units	uH	Max.	MHz.	A	A
FCNR6010-1R5	1.5±30%	0.090	90	2.40	1.90
FCNR6010-2R2	2.2±30%	0.110	64	1.90	1.70
FCNR6010-3R3	3.3±30%	0.135	51	1.60	1.50
FCNR6010-4R7	4.7±30%	0.165	42	1.30	1.40
FCNR6010-6R8	6.8±20%	0.220	30	1.20	1.20
FCNR6010-100	10±20%	0.270	25	1.00	1.10
FCNR6010-220	22±20%	0.580	12	0.65	0.70

FCNR6012- Series：

Part Number	Inductance @100KHz,1V	DCR Ω	S.R.F MHz	Isat/ A	Irms /A
Units	uH	Max.	MHz.	A	A
FCNR6012-1R0	1.0±300%	0.055	80	3.52	2.30
FCNR6012-1R5	1.5±30%	0.075	65	2.76	2.00
FCNR6012-2R5	2.2±30%	0.090	45	2.10	1.80
FCNR6012-3R3	3.3±30%	0.105	42	1.80	1.70
FCNR6012-4R7	4.7±30%	0.125	36	1.60	1.55
FCNR6012-5R3	5.3±30%	0.125	34	1.50	1.55
FCNR6012-6R8	6.8±30%	0.165	30	1.30	1.35
FCNR6012-100	10±20%	0.200	22	1.00	1.20
FCNR6012-150	15±20%	0.295	18	0.80	0.80
FCNR6012-220	22±20%	0.465	12	0.76	0.65
FCNR6012-330	33±20%	0.580	8	0.59	0.55
FCNR6012-470	47±20%	0.810	6	0.52	0.46
FCNR6012-680	38±20%	1.160	3	0.44	0.41
FCNR6012-101	100±20%	1.670	1	0.35	0.32

FCNR6020- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR6020-R50	0.50±30%	0.018	0.014	120	4.50	6.00	4.00	5.00
FCNR6020-R68	0.68±30%	0.022	0.017	115	6.55	7.80	3.80	4.80
FCNR6020-R82	0.82±30%	0.022	0.017	110	5.30	6.30	3.80	4.80
FCNR6020-1R0	1.0±30%	0.020	0.020	100	4.15	5.00	3.50	4.40
FCNR6020-1R2	1.2±30%	0.029	0.022	88	5.90	7.00	3.20	4.00
FCNR6020-1R5	1.5±30%	0.029	0.022	79	4.25	5.10	3.20	4.00
FCNR6020-1R8	1.8±30%	0.036	0.028	68	4.85	5.80	2.75	3.50
FCNR6020-2R0	2.0±30%	0.046	0.035	65	4.10	4.90	2.60	3.30
FCNR6020-2R2	2.2±30%	0.036	0.028	61	3.75	4.50	2.75	3.50
FCNR6020-2R7	2.7±30%	0.046	0.035	56	3.90	4.60	2.60	3.30
FCNR6020-3R3	3.3±30%	0.046	0.035	51	3.15	3.70	2.60	3.30
FCNR6020-3R9	3.9±30%	0.064	0.049	45	3.25	3.90	2.10	2.60
FCNR6020-4R3	4.3±30%	0.064	0.049	44	2.70	3.20	2.10	2.60
FCNR6020-4R7	4.7±30%	0.075	0.058	41	3.00	3.60	2.00	2.50
FCNR6020-5R6	5.6±30%	0.075	0.058	36	2.40	2.90	1.90	2.40
FCNR6020-6R2	6.2±30%	0.103	0.079	31	2.30	2.70	1.80	2.30
FCNR6020-6R8	6.8±30%	0.103	0.079	31	2.20	2.60	1.80	2.30
FCNR6020-8R2	8.2±30%	0.137	0.105	27	2.10	2.50	1.40	1.80
FCNR6020-100	10±20%	0.137	0.105	27	1.75	2.10	1.40	1.80
FCNR6020-120	12±20%	0.156	0.120	25	1.45	1.70	1.30	1.60
FCNR6020-150	15±20%	0.189	0.145	21	1.20	1.40	1.20	1.50
FCNR6020-180	18±20%	0.234	0.180	18	1.20	1.40	1.08	1.40
FCNR6020-220	22±20%	0.265	0.204	16	1.05	1.20	1.00	1.30
FCNR6020-330	33±20%	0.390	0.300	11	0.95	1.10	0.84	1.05
FCNR6020-470	47±20%	0.559	0.430	10	0.70	0.90	0.80	0.90

FCNR6028- Series：

Part Number	Inductance @100KHz,1V	DCResistanceΩ		S.R.F MHz	Isat/ A		Irms /A
Units	L uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR6028-R82	0.82±30%	0.016	0.012	97	6.50	9.00	5.20	6.00
FCNR6028-1R0	1.0±30%	0.013	0.010	70	5.75	7.00	5.20	5.70
FCNR6028-1R2	1.2±30%	0.017	0.013	69	6.40	7.50	4.58	5.00
FCNR6028-1R5	1.5±30%	0.017	0.013	65	6.00	6.60	4.58	5.00
FCNR6028-2R2	2.2±30%	0.026	0.020	48	5.10	5.60	3.75	4.10
FCNR6028-2R7	2.7±30%	0.026	0.020	48	3.80	4.10	3.75	4.10
FCNR6028-3R3	3.3±30%	0.033	0.025	41	4.15	4.50	3.48	3.80
FCNR6028-4R7	4.7±30%	0.039	0.030	35	3.00	3.30	3.08	3.40
FCNR6028-5R1	5.1±30%	0.056	0.043	32	3.20	3.50	2.60	2.80
FCNR6028-6R2	6.2±20%	0.061	0.047	30	3.05	3.30	2.40	2.60
FCNR6028-6R8	6.8±20%	0.061	0.047	27	2.60	3.00	2.40	2.60
FCNR6028-8R2	8.2±20%	0.072	0.055	24	2.30	2.50	2.25	2.50
FCNR6028-100	10±20%	0.094	0.072	23	2.04	2.50	1.95	2.40
FCNR6028-120	12±20%	0.104	0.080	18	1.80	2.00	1.85	2.00
FCNR6028-150	15±20%	0.163	0.125	18	1.75	1.90	1.45	1.60
FCNR6028-180	18±20%	0.156	0.120	15	1.52	1.80	1.45	1.60
FCNR6028-220	22±20%	0.182	0.140	14	1.45	1.80	1.40	1.60
FCNR6028-270	27±20%	0.202	0.155	13	1.50	1.60	1.32	1.40
FCNR6028-330	33±20%	0.241	0.185	12	1.35	1.50	1.22	1.30
FCNR6028-360	36±20%	0.280	0.215	11	1.25	1.40	1.13	1.20
FCNR6028-390	39±20%	0.293	0.225	11	1.25	1.40	1.10	1.20
FCNR6028-470	47±20%	0.410	0.315	9.5	1.15	1.30	1.06	1.10
FCNR6028-560	56±20%	0.449	0.345	8.2	1.05	1.20	0.89	1.00
FCNR6028-680	68±20%	0.468	0.360	7.7	0.80	0.95	0.86	0.95
FCNR6028-750	75±20%	0.533	0.410	7.7	0.90	0.99	0.81	0.90
FCNR6028-820	82±20%	0.650	0.500	7.7	0.80	0.88	0.70	0.77
FCNR6028-101	100±20%	0.650	0.500	7.1	0.65	0.71	0.70	0.77

FCNR6040- Series：

Part Number	Inductance @100KHz,1V	DC Resistance	S.R.F MHz	Isat/ A	Irms /A
Units	uH	Ω	MHz	A	A
FCNR6040-1R0	1.0±30	0.008	97	9.00	6.30
FCNR6040-100	10±20%	0.048	16	3.20	2.45
FCNR6040-120	12±20%	0.058	14	2.80	2.20
FCNR6040-150	15±20%	0.068	13	2.50	2.05
FCNR6040-220	22±20%	0.089	10	2.05	1.80
FCNR6040-330	33±20%	0.137	9.9	1.65	1.45
FCNR6040-560	56±20%	0.221	6.6	1.30	1.10
FCNR6040-680	68±20%	0.285	5.6	1.15	0.95
FCNR6040-101	100±20%	0.179	2.0	0.42	0.47

FCNR6045- Series：

Part Number	Inductance @100KHz,1V	DC Resistance	S.R.F MHz	Isat/ A	Irms /A
Units	uH	Ω	MHz	A	A
FCNR6045-R47	0.47±30%	0.008	155	16.50	6.60
FCNR6045-R68	0.68±30%	0.008	99	12.00	6.50
FCNR6045-R82	0.82±30%	0.010	140	11.00	6.50
FCNR6045-1R0	1.0±30%	0.014	100	10.00	5.60
FCNR6045-1R5	1.5±30%	0.016	65	9.70	5.40
FCNR6045-2R2	2.2±30%	0.018	52	7.40	5.00
FCNR6045-3R3	3.3±30%	0.027	32	6.20	4.00
FCNR6045-3R6	3.6±30%	0.027	28	5.70	4.00
FCNR6045-4R7	4.7±20%	0.034	24	5.50	3.60
FCNR6045-5R6	5.6±20%	0.038	23	4.60	3.40
FCNR6045-6R2	6.2±20%	0.040	26	4.80	3.30
FCNR6045-6R8	6.8±20%	0.040	20	4.30	3.30
FCNR6045-8R2	8.2±20%	0.056	21	4.30	2.80
FCNR6045-100	10±20%	0.068	15	3.50	2.70
FCNR6045-150	15±20%	0.088	12	2.70	2.20
FCNR6045-180	18±20%	0.105	10	2.40	2.00
FCNR6045-220	22±20%	0.116	10	2.20	2.00
FCNR6045-270	27±20%	0.133	9.2	2.10	1.80
FCNR6045-330	33±20%	0.178	7.8	1.80	1.60
FCNR6045-390	39±20%	0.234	7.8	1.60	1.40
FCNR6045-470	47±20%	0.260	6.4	1.50	1.30
FCNR6045-560	56±20%	0.287	6.4	1.40	1.20
FCNR6045-680	68±20%	0.376	6.4	1.30	1.10
FCNR6045-820	82±20%	0.443	4.9	1.10	0.99
FCNR6045-101	100±20%	0.563	4.2	1.00	0.88

FCNR8040- Series

Part Number	Inductance @100KHz,1V	DCResistance		SRF	Saturation Current*3		Heat Rating Current*4
Units	uH	Max.	Typ.	Min.	Max.	Typ.	Max.	Typ.
FCNR8040-1R0	1.0±30%	0.010	0.008	89	9.85	14.0	6.30	6.90
FCNR8040-1R5	1.5±30%	0.013	0.010	67	8.15	11.0	5.65	6.20
FCNR8040-2R2	2.2±30%	0.016	0.012	41	7.10	8.00	5.15	5.60
FCNR8040-3R3	3.3±30%	0.022	0.017	27	6.50	7.00	4.70	4.80
FCNR8040-4R7	4.7±30%	0.025	0.019	24	5.90	6.50	4.10	4.50
FCNR8040-5R6	5.6±30%	0.027	0.021	24	6.00	6.90	3.85	4.20
FCNR8040-6R8	6.8±20%	0.031	0.024	20	4.45	5.20	3.60	4.00
FCNR8040-8R2	8.2±20%	0.034	0.026	17	4.20	4.80	3.45	3.80
FCNR8040-100	10±20%	0.038	0.029	15	3.60	4.10	3.30	3.60
FCNR8040-150	15±20%	0.061	0.047	12	2.95	3.40	2.60	2.80
FCNR8040-180	18±20%	0.069	0.053	11	2.70	3.10	2.40	2.60
FCNR8040-220	22±20%	0.090	0.069	9.5	2.40	2.70	2.10	2.30
FCNR8040-330	33±20%	0.126	0.097	7.8	2.05	2.40	1.80	2.00
FCNR8040-360	36±20%	0.133	0.102	7.8	2.00	2.30	1.75	1.90
FCNR8040-390	39±20%	0.139	0.107	7.8	1.95	2.20	1.70	1.90
FCNR8040-470	47±20%	0.177	0.136	6.4	1.75	2.00	1.55	1.70
FCNR8040-560	56±20%	0.192	0.148	6.4	1.55	1.70	1.45	1.60
FCNR8040-620	62±20%	0.237	0.182	6.4	1.50	1.60	1.30	1.40
FCNR8040-680	68±20%	0.255	0.196	4.9	1.45	1.60	1.25	1.40
FCNR8040-750	75±20%	0.274	0.211	4.9	1.35	1.50	1.20	1.30
FCNR8040-820	82±20%	0.293	0.225	5.9	1.30	1.40	1.15	1.20
FCNR8040-101	100±20%	0.377	0.290	4.2	1.15	1.30	1.00	1.10
FCNR8040-121	120±20%	0.434	0.334	3.5	1.05	1.10	0.95	1.00
FCNR8040-151	150±20%	0.533	0.410	3.5	1.10	1.20	0.85	0.94
FCNR8040-221	220±20%	0.779	0.599	3.5	0.85	0.94	0.80	0.88
FCNR8040-331	330±20%	1.156	0.889	2.8	0.68	0.75	0.64	0.70
FCNR8040-471	470±20%	1.625	1.260	2.1	0.60	0.70	0.50	0.60

1:All test data is referenced to 20°C ambient;
2: Rated current: lsat or lrms, whichever is smaller;
3: lsat: DC current at which the inductance drops approximate 30% from its value without current;
4: lrms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.

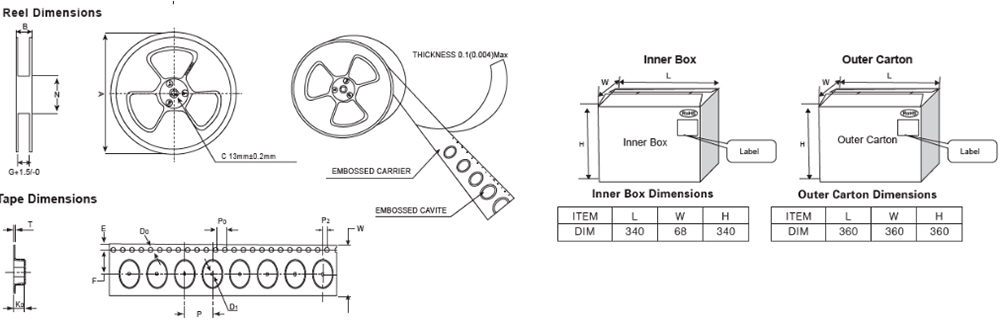

Tape and Reel Dimensions(Unit :mm)

(1) There are at least 10 blank spaces at both ends of tape which do not include the coils.
(2) The coils are postiioned with the bonding surface facing bottom of the pocket.
(3) The deficiency per reel is within 0.5%.

PartNumber	A	B	G	N	E	F	P	P0	P2	W	PCS/Reel
FCNR2510	Φ178	11	11	60	60	60	4	4	4	4	2000
FCNR2512	Φ178	11	11	60	60	100	4	8	8	8	2000
FCNR3010	Φ178	11	17	100	100	100	8	8	8	8	2000
FCNR3012	Φ178	17	17	100	100	100	8	8	8	8	2000
FCNR3015	Φ178	17	17	100	100	100	8	8	8	8	2000
FCNR4010	Φ330	17	17	100	100	100	12	4	4	4	5000
FCNR4012	Φ330	17	17	100	100	100	4	4	4	4	4500
FCNR4018	Φ330	17	17	1.75	1.75	1.75	4	4	4	4	3000
FCNR4020	Φ330	17	17	1.75	1.75	1.75	4	4	4	4	3000
FCNR4026	Φ330	17	17	1.75	1.75	1.75	4	4	4	4	2500
FCNR4030	Φ330	17	8.5	1.75	1.75	1.75	4	4	2	2	2000
FCNR5020	Φ330	8.5	8.5	1.75	1.75	1.75	2	2	2	2	2500
FCNR5040	Φ330	8.5	8.5	1.75	1.75	1.75	2	2	2	2	1500
FCNR6010	Φ330	12.5	12.5	1.75	1.75	1.75	2	2	2	2	2000
FCNR6012	Φ330	12.5	12.5	3.5	3.5	3.5	2	2	2	2	3000
FCNR6020	Φ330	12.5	12.5	3.5	3.5	5.5	2	2	2	8	3000
FCNR6028	Φ330	12.5	12.5	5.5	5.5	5.5	8	8	8	8	2500
FCNR6040	Φ330	12.5	12.5	5.5	5.5	5.5	12	12	12	12	2000
FCNR6045	Φ330	12.5	12.5	5.5	5.5	7.5	12	12	12	12	1500
FCNR8040	Φ330	12.5	12.5	7.5	7.5	7.5	12	16	16	16	1500
