- Low Primary DCR version
- High current carrying capacity
- Low profile,AC/DC converter
- High frequency DC/DC converter
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C.
- Stable stray inductor for common difference mode differential mode filtering.

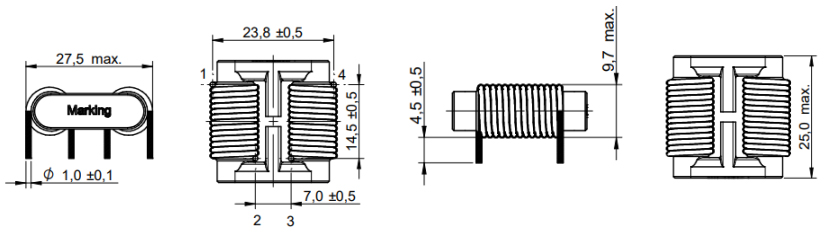

1. Dimensions:mm
2.Schematic:

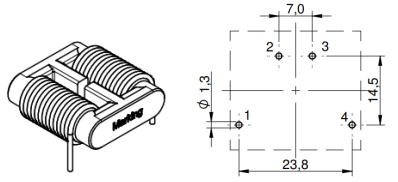

3.LAYOUT RECOMMENDATION:(mm)
4.ELECTRIC CHARACTERICS:
| Part Number | Turns Ration | Inductance(uH) | LK(uH)Typ.(4-3 short) | RDC(mΩ)MAX | Rated Current(A) |
| 1-2 4-3 | |||||
| FC-LCL2208-451-10A-LF | 1:1 | 450±40% | 17.5 | 9.5 | 10.0 |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C.C to +130°C
Test equipment : Inductance 100KHZ/0.1V
Rated voltage :250V、AC; Hi-Pot ( N1-N2 )：1500 Vac / 60 Hz , 5 mA / 3sec

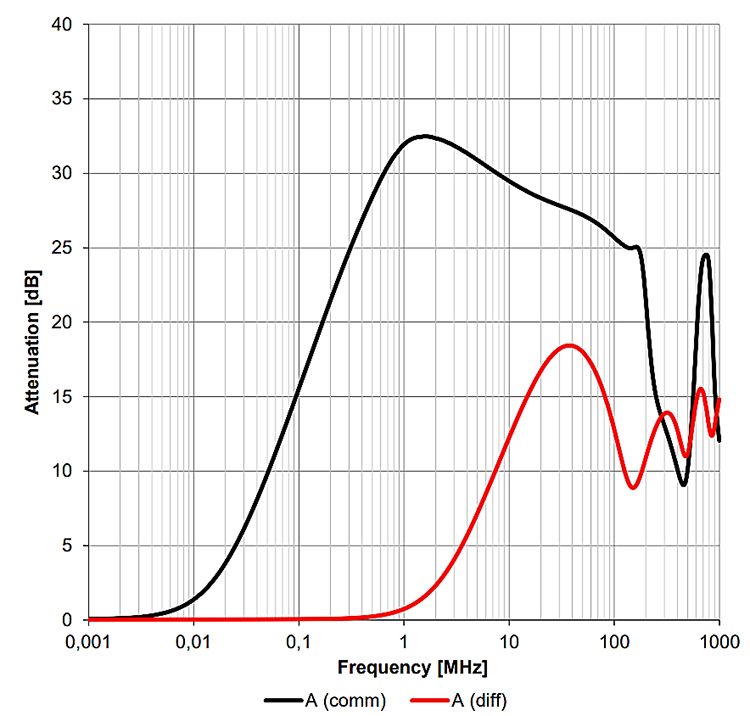

5. Typical Insertion Loss:

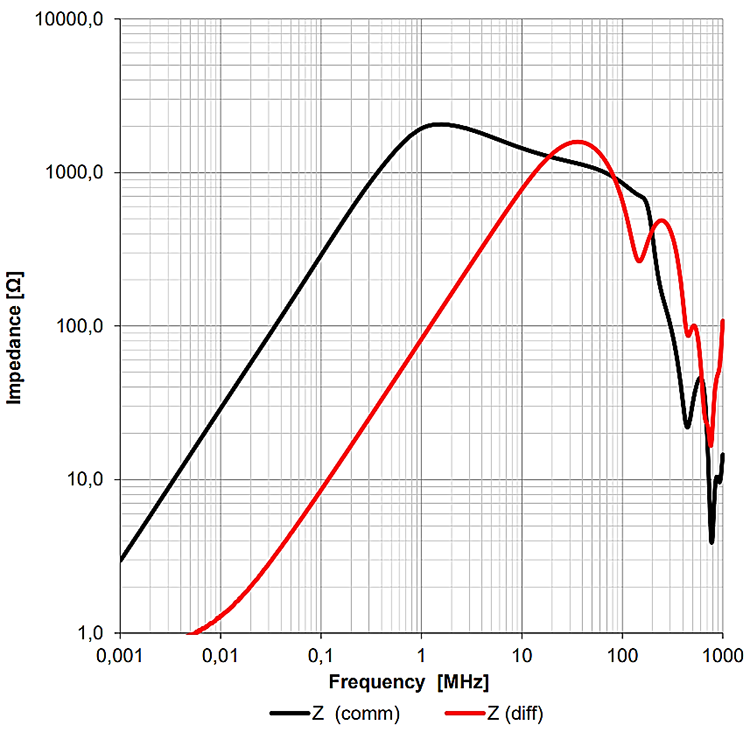

6. Typical Impedance Characteristics:
