- Low profile,only 5.3max
- High Impedance up to: 1000Ω
- Current Capabilit up to 5.0A
- Operating temperature : –40°C to +125°C
- Rated voltage 80 Vdc / 42 Vac

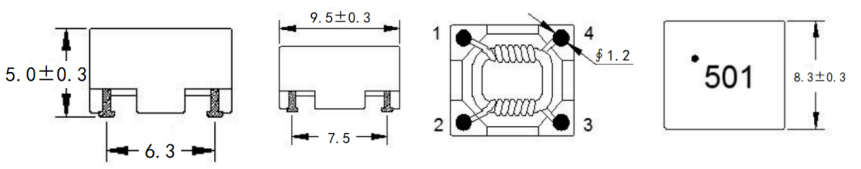

1. Dimensions:mm
2.Schematic:
3.LAYOUT RECOMMENDATION:(mm)

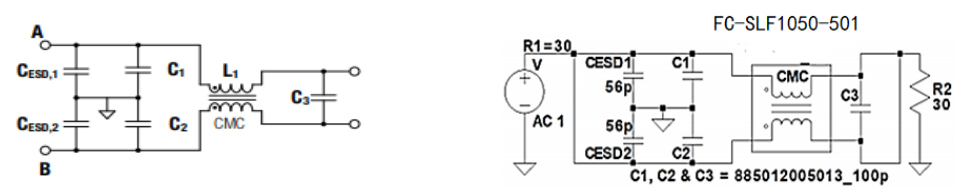

4.Application Fig:
5. ELECTRIC CHARACTERICS:
| Part Number | Common mode Impedance (Ω) 100MHz | Inductance(uH)typ | LK(uH)Typ.(2-3 short) | RDC(mΩ) | Current Rating(A) |
| 1-4 2-3 | |||||
| FC-SLF1050-501-LF | 500±25% | 5.0 | 0.57 | 5.5 | 5.0 |
| FC-SLF1050-801-LF | 800±25% | 9.0 | 0.97 | 11 | 3.5 |
| FC-SLF1050-102-LF | 1000±25% | 11.0 | 1.30 | 30 | 2.5 |
| FC-SLF1050-222-LF | 2200±25% | 30.0 | 3.50 | 60 | 1.4 |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C.C to +130°C
Test equipment : Inductance 100KHZ/0.1V
Rated voltage 80 Vdc / 42 Vac
Hi-Pot ( N-N )：250 Vac / 60 Hz , 3 mA / 1sec

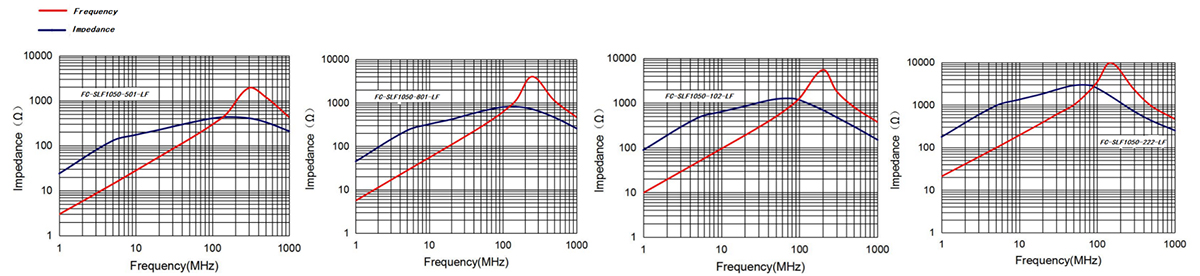

6. Impedance. vs FrequencyInsertion loss VS. Frequency :
