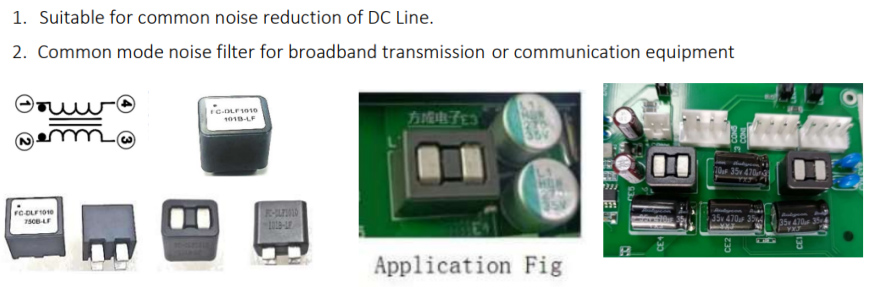

- Suitable for common noise reduction of DC Line.
- Common mode noise filter for broadband transmission or communication equipment

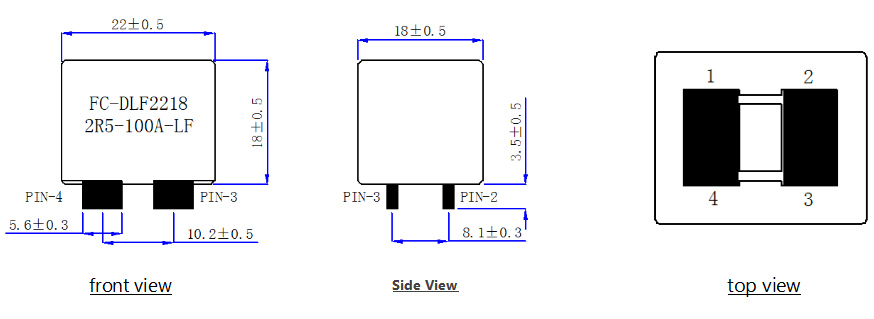

1.Dimensions:mm

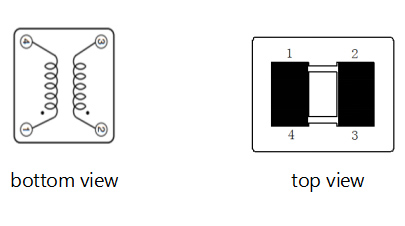

2.Schematic:

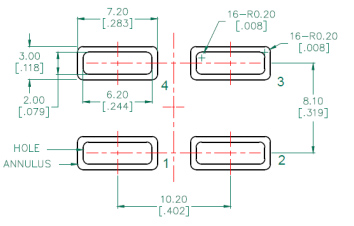

3.LAYOUT RECOMMENDATION:
4.ELECTRIC CHARACTERICS:
| Part Number | Inductance L:uH(typ) | Impedance 100MHZ/500MHZ(Ω) | RDC(mΩ)@25℃ | Current Rating(A) | Insulation test voltage(DCV) |
| FC-DLF2218-2R5-100A-LF | 2.5 | 160-250 | 0.15 | 100A | 3000V |

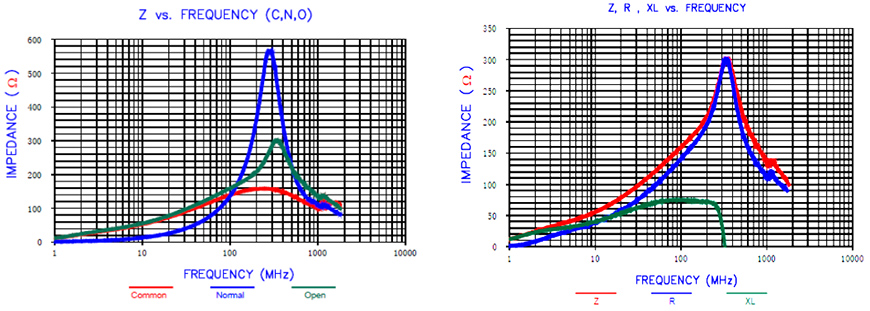

5.Impedance charactristics：

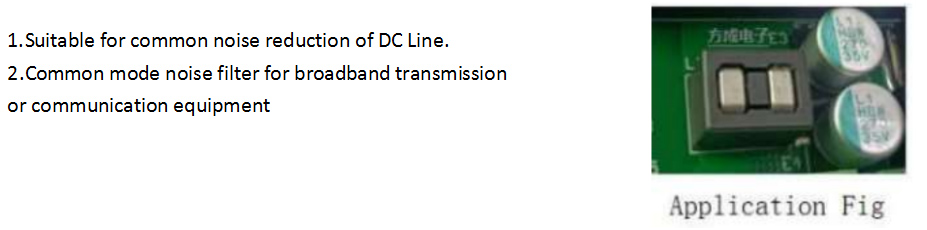

Application
