- Height: 14.0mm Max
- Current Rating: up to 40A
- Insulation: Reinforced, 6.5mm creepage ，Isolation AC3750Vrms UL
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- It is used as DC current transformer for various
- electronic device detection
lectrical Characteristics
| Part Number | Turns Ration | Current Rating NP1-2,(A) | Secondary Inductance (PIN5-4-mH min) | DCR MAX) | Hipot (ACVRMS) | |
| Primary (1-2(mΩ) | Secondary (5-4(Ω) | Np-Ns | ||||
| FC-SCT1010-1:50T-40A | 1:50 | 40 | 1.8 | 0.5 | 1.5 | 3750V |
| FC-SCT1010-1:70T-40A | 1:70 | 40 | 3.5 | 0.5 | 2.0 | 3750V |
| FC-SCT1010-1:100T-40A | 1:100 | 40 | 7.0 | 0.5 | 2.5 | 3750V |
| FC-SCT1010-1:125T-40A | 1:125 | 40 | 11.0 | 0.5 | 3.0 | 3750V |
| FC-SCT1010-1:150T-40A | 1:150 | 40 | 15.0 | 0.5 | 3.5 | 3750V |
| FC-SCT1010-1:180T-40A | 1:180 | 40 | 25.0 | 0.5 | 9.0 | 3750V |
| FC-SCT1010-1:200T-40A | 1:200 | 40 | 30.0 | 0.5 | 9.5 | 3750V |
It is used as DC current transformer for various electronic device detection.
Inductance：10KHZ/0.25V, To calculate value of terminating resistor (Rt) use the following formula: Rt (W) = Vref * N / (Ipeak_primary)
The peak flux density of the device must remain below 2200 Gauss. To calculate the peak flux density for uni-polar current use following formula: Bpk = 8.85* Vref * (Duty_Cycle_Max) * 105 / (N * Freq_kHz)

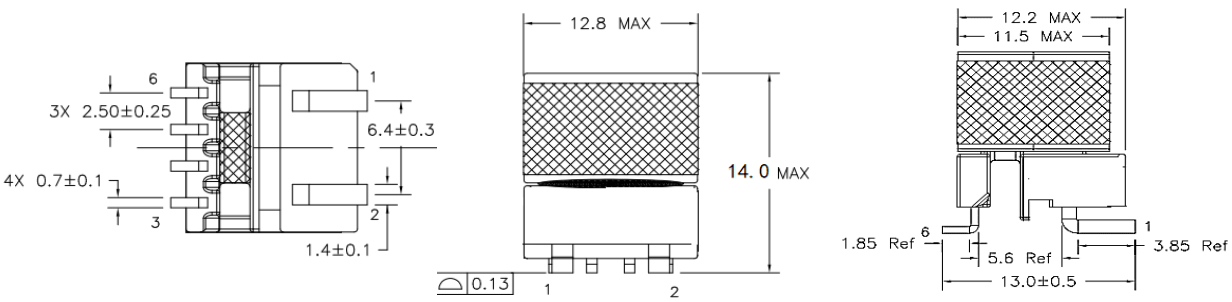

Dimensions:mm

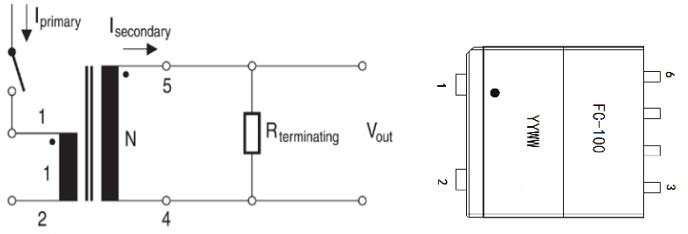

Schematic:

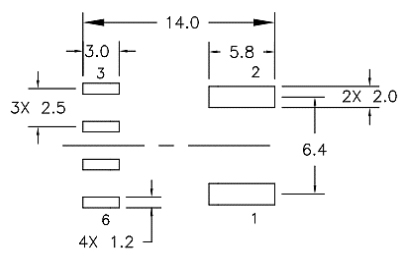

PCB,LAYOUT RECOMMENDATION
