- High saturation and high current
- DC/DC converter
- Operating temperature: –40 °C to +155°C
- Recommended solder profile: Reflow

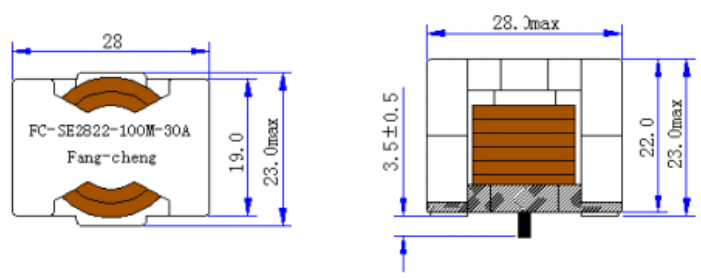

1. Dimensions: [mm]
2.Schematic:

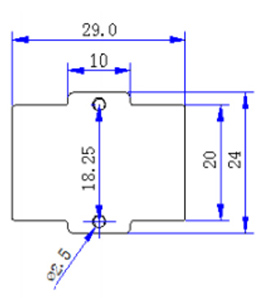

3. Recommended Land Pattern: mm

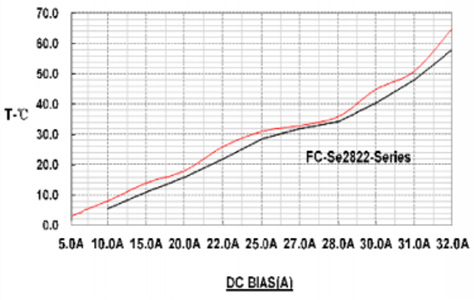

4.Temperature Rise vs Current:
5.ELECTRIC CHARACTERICS:
| Part Number | Inductance ±20%(µH)100KHZ/0.3V | DRC(mohms) | Isat(A)drops 30% | Irms(A)40℃/50℃ | ||
| nom | max | |||||
| FC-SE2822-100M | 10.0 | 3.1 | 3.5 | 40.0 | 29.0 | 30.0 |
| FC-SE2822-150M | 15.0 | 30.5 | ||||
| FC-SE2822-220M | 22.0 | 20.3 | ||||
| FC-SE2822-330M | 33.0 | 11.6 | ||||
| FC-SE2822-470M | 47.0 | 8.50 | ||||
| FC-SE2822-680M | 68.0 | 5.30 | ||||

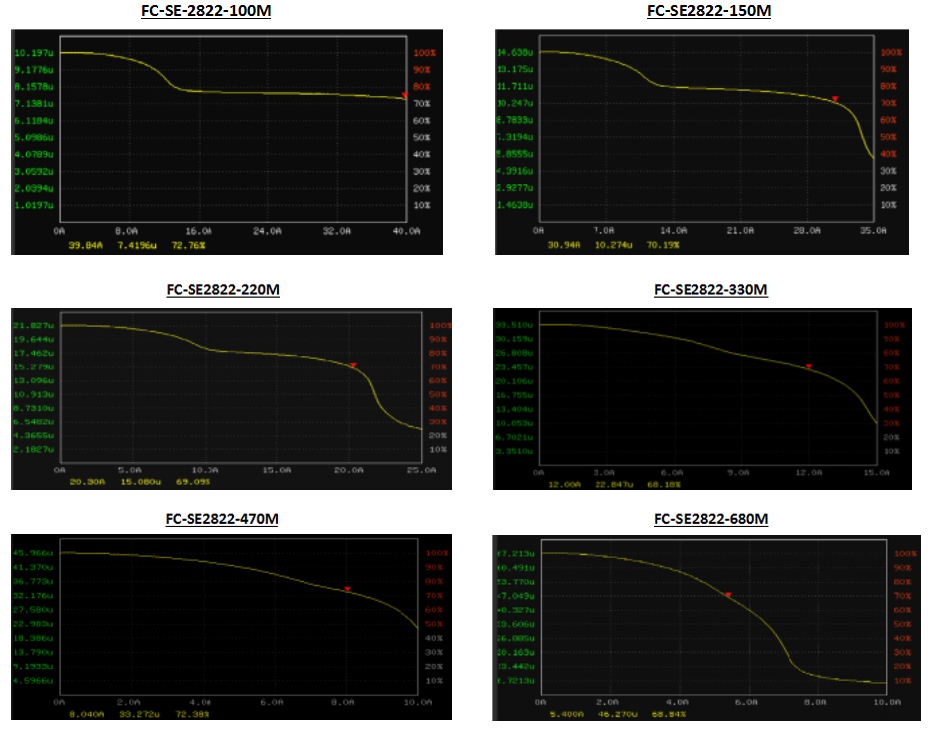

6.Inductancevs Isat Current
