- High inductance,high current.
- SMT chip mounting,excitation wire design
- AC/DC circuit FPC inducto
- Operating temperature:-40℃ to +125℃

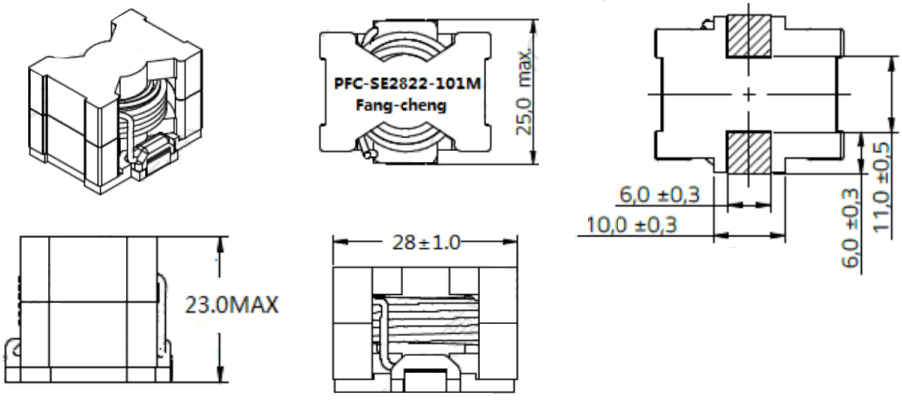

1.Dimensions:mm
2.Schematic:
3.Recommend Land Pattern:mm

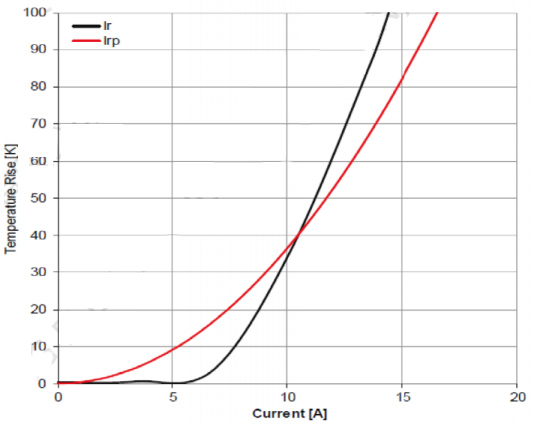

4.Temperature Rise vs.Current Characteristics:
5.ELECTRIC CHARACTERICS:
| Order Code | L(μH) | DCR(Ω) | Irms-A | Isat-A | HI-POT-V | |
| ±20% | Typ/max | Typ/max | MAX | COIL-CORE | ||
| PFC-SE2822-101M | 100.0 | 0.048 | 0.055 | 8.5/10.0 | 16.5 | AC1000V |
| PFC-SE2822-121M | 120.0 | 14.2 | ||||
| PFC-SE2822-151M | 150.0 | 11.0 | ||||
| PFC-SE2822-221M | 220.0 | 7.50 | ||||
| PFC-SE2822-251M | 250.0 | 6.50 | ||||
Remark:
(1)Inductance:100KHz 0.1V
(2)Tolerance of inductance:±20%.
(3)lsat:The value of curret indicates that inductance drops 30%(Typcial)from its initial value
(4)lrms:The value of current indicates that the temperature of the coil is increase 40℃(Typical)
(5)Test condition:Ta=25℃

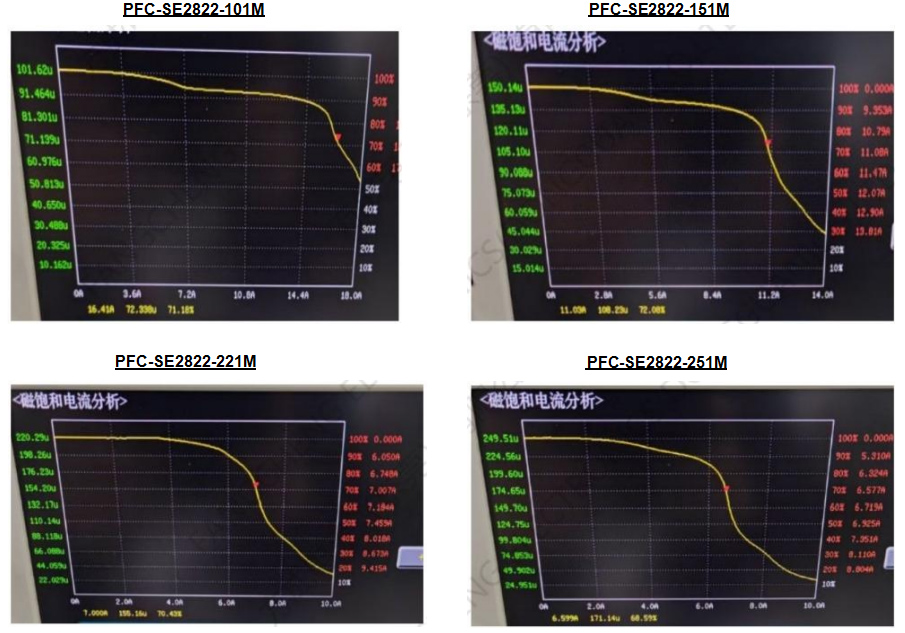

6.Inductance VS Current Curve:
