• Height: 7.0mm Max
  • Current Rating: up to 30A
  • Frequency Range: 100 kHz, 0.1 Vrms
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C
ELECTRIC CHARACTERICS)

It is used as DC current transformer for various electronic device detection.

Part NumberTurns RationCurrent Rating2 NP7-8,(A)Secondary Inductance
(PIN1-3-mH min)		DCR (mΩ MAX)Hipot(DCVRMS)
Primary(7-8)Secondary(1-3)Np-Ns
FC-SCT8.3-1:100-30A1:100303.00.3535001500V
FC-SCT8.3-1:200-30A1:2003010.00.3575001500V

With:1
Bmax Maximum magnetic flux density in the ferrite core of the current sense transformer
Vsense,max Maximum output voltage of the measurement signalmax Maximum duty cycle
ns Number of turns of the secondary winding of the current sense transformer
Ae Effective magnetic area of the ferrite core
fosc Operating frequency of the switching operator IC
Typical value for Ae: 2.5 x 10-6 m2
Typical Bmax: 200 m
With:2
RT Resistance of burden resistor
Vsense,max Maximum output voltage of the measurement signal
ns Number of turns on the secondary side of the CT
Iprim,max Maximum primary current (peak current)

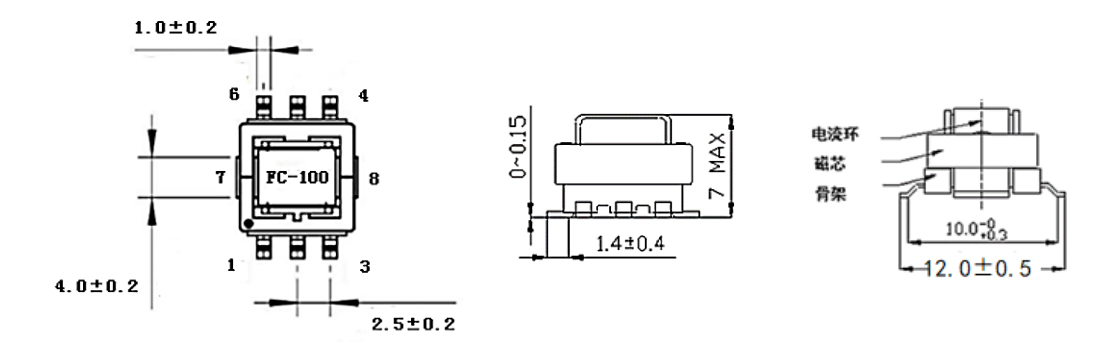

Dimensions:mm
FC-SCT8.3 –30A-Series Current Sense Transformers

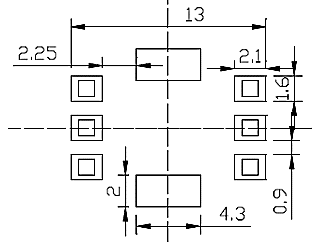

LAYOUT RECOMMENDATION
FC-SCT8.3 –30A-Series Current Sense Transformers

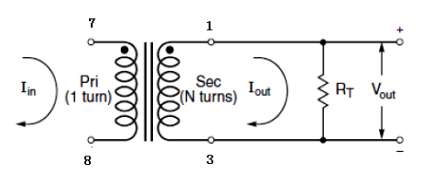

Schematic:
FC-SCT8.3 –30A-Series Current Sense Transformers

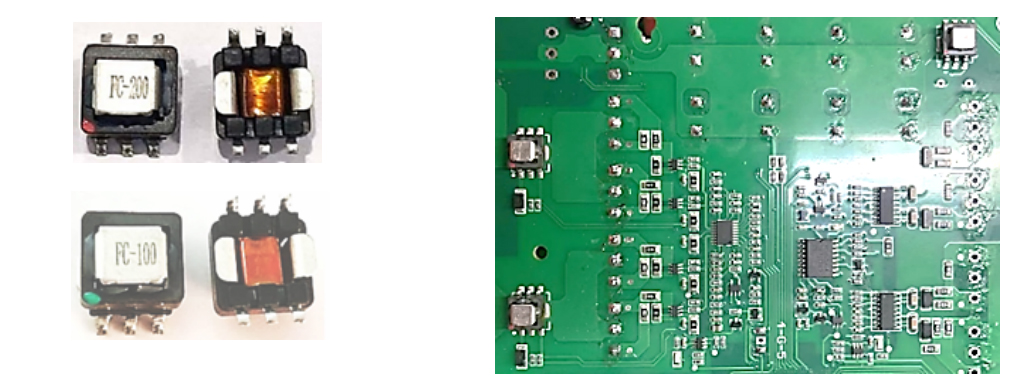

It is used as DC current transformer for various electronic device detection.
FC-SCT8.3 –30A-Series Current Sense Transformers

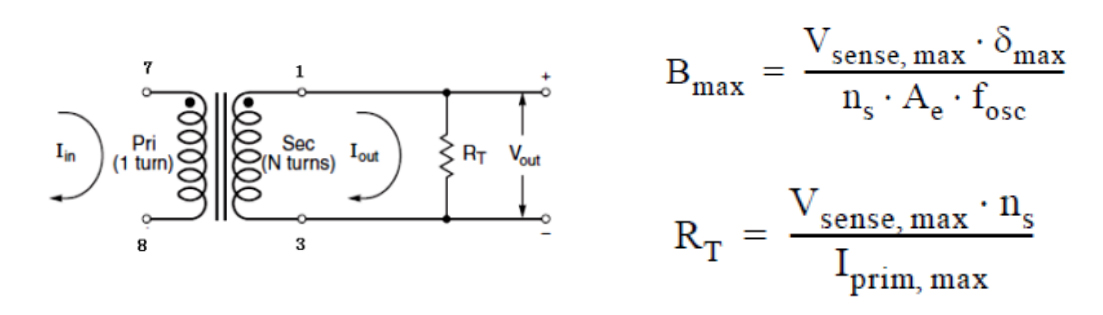

Application circuit and pinning
FC-SCT8.3 –30A-Series Current Sense Transformers
