- Height: 3.8mm Max
- Footprint: 7.0mm x 6.8mm
- Current Rating: up to 30A
- Low Primary DCR version
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
- It is used as DC current transformer for various electronic device detection.
Electrical Characteristics
| NO. | name | Measuring terminal | Measured value | Test condition | Testing instrument |
| 1 | Inductance | L1-2 | ≥800mH | 10kHz 0.3V 25℃ | WK3260 |
| 2 | DCR | R5-6 | 0.45mΩ MAX | 25℃ | CH502BC |
| 3 | Current | I=5-6 | 30A | 10kHz 0.3V 25℃ | WK3250+3260B |
| 4 | Turns Ratio | N1﹕N2 | 100﹕1 | 100kHz 1V | WK3260 |
| 5 | HI-POT | N1---N2 | DC1500V | 1mA/3sec. | CH19503 |
This specification applies to the SMD type current transformer FC-SCT6.0-1:100-25A.
It is used as DC current transformer for various electronic device detection.

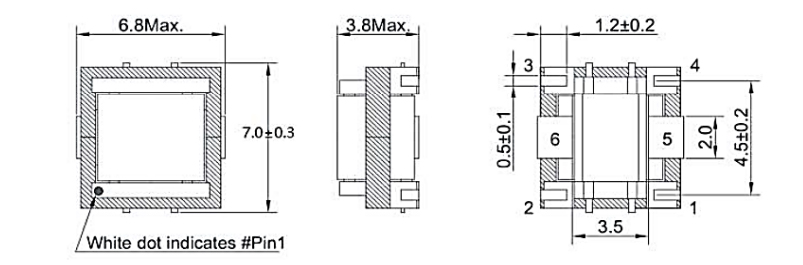

Dimensions:mm

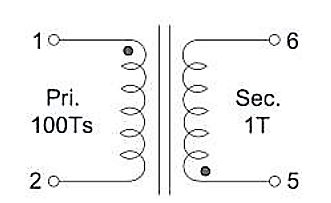

Schematic:

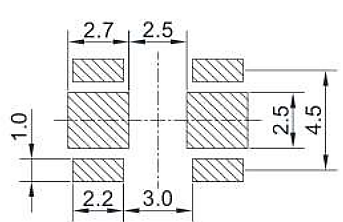

LAYOUT RECOMMENDATION
