- Height: 21.0mm Max
- Current Rating: up to 35A
- Low Primary DCR version
- Isolation: AC3750Vrms UL
- Ambient temperature –40°C to +85°C
- Storage temperature Component: –40°C to +125°C
Electrical Characteristics:
| Part Number | Turns Ration | Current Rating NP4-3,(A) | Secondary Inductance (PIN1-2-mH min) | DCR (mΩ MAX) | Hipot(ACVRMS) | |
| Primary(4-3) | Secondary (1-2) | Np-Ns | ||||
| FC-ULCT1013-1:100-30A | 1:100 | 35 | 5.0 | 0.8 | 2000 | 3750V |
| FC-ULCT1013-1:200-30A | 1:200 | 35 | 20.0 | 0.8 | 6000 | 3750V |
This specification applies to the DIP type UL current transformer Current Sense Transformers

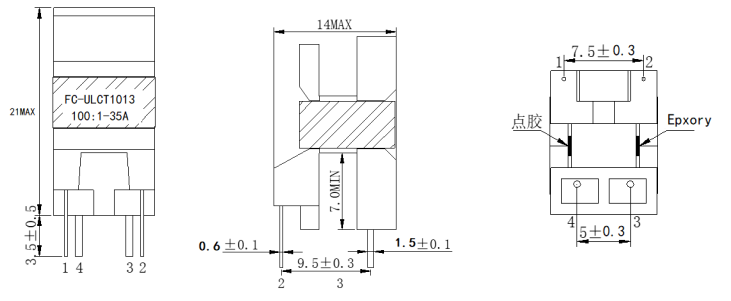

Dimensions:mm

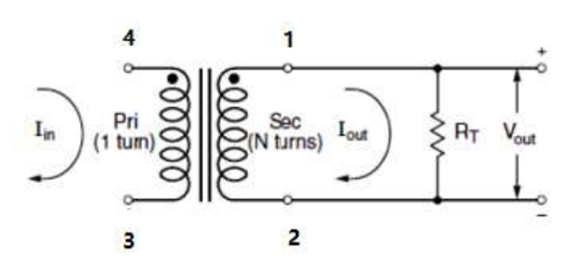

Schematic:

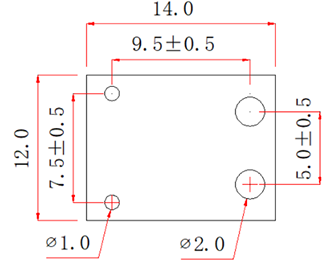

PCB,LAYOUT RECOMMENDATION
