• Height: 9.0mm Max
  • Current Rating: up to 25A
  • Low Primary DCR version
  • Ambient temperature –40°C to +85°C
  • Storage temperature Component: –40°C to +125°C
Electrical Characteristics:
NO.nameMeasuring terminalMeasured valueTest conditionTesting instrument
1InductanceL1-2≥5.0mH10kHz 0.3V 25℃WK3260
2DCR1R1-22.5Ω MAX25℃CH502BC
3DCR2R4-32.5mΩ MAX25℃CH502BC
4CurrentI=4-3DC-25A1kHz 0.3V 25℃WK3250+3260B
5Turns RatioN1﹕N2100﹕120kHz 1VWK3260
6HI-POTN1---N2DC1500V1mA/3sec.CH19503

This specification applies to the SMD type current transformer FC-SCT8.5-1:100-25A.Current Sense Transformers
It is used as DC current transformer for various electronic device detection.

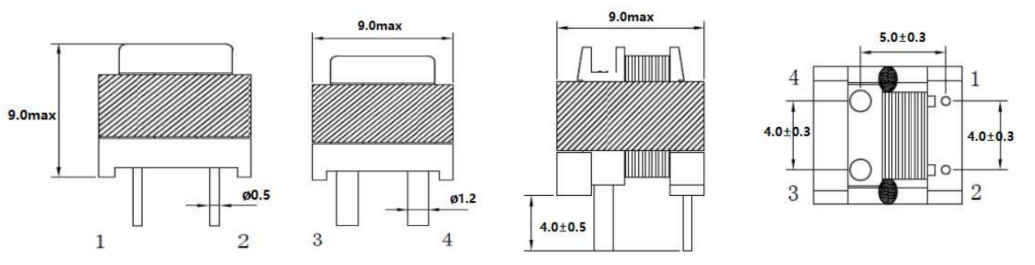

Dimensions:mm
FC-SCT8.5-1:100-25A.Current Sense Transformers

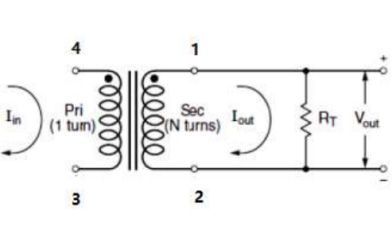

Schematic:
FC-SCT8.5-1:100-25A.Current Sense Transformers

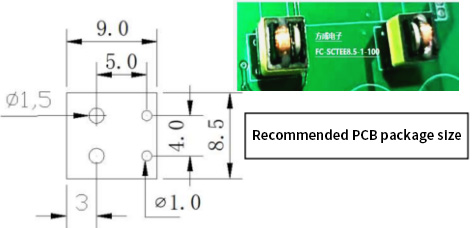

LAYOUT RECOMMENDATION
FC-SCT8.5-1:100-25A.Current Sense Transformers
