- Enormous common mode impedance Z
- Small dimensions
- 1:1 turns ratio
- High current ratings
- Ambient temperature –40°C to+85°C
- Storage temperature Component:-40°C to+125°C
- Suppression of common mode noise
- Power supply system
- Data lines

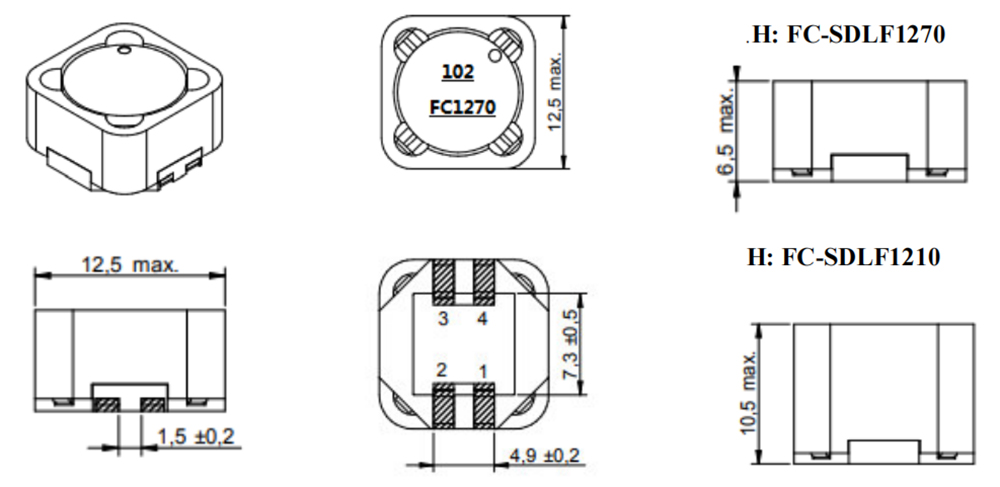

Dimensions:mm

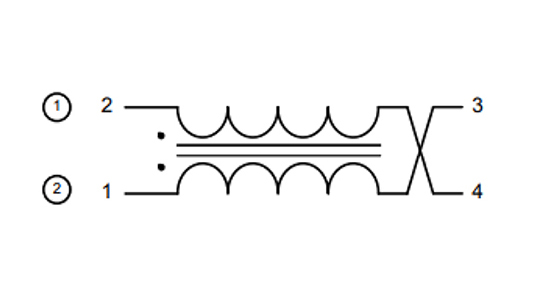

Schematic:
LAYOUT RECOMMENDATION：（mm）

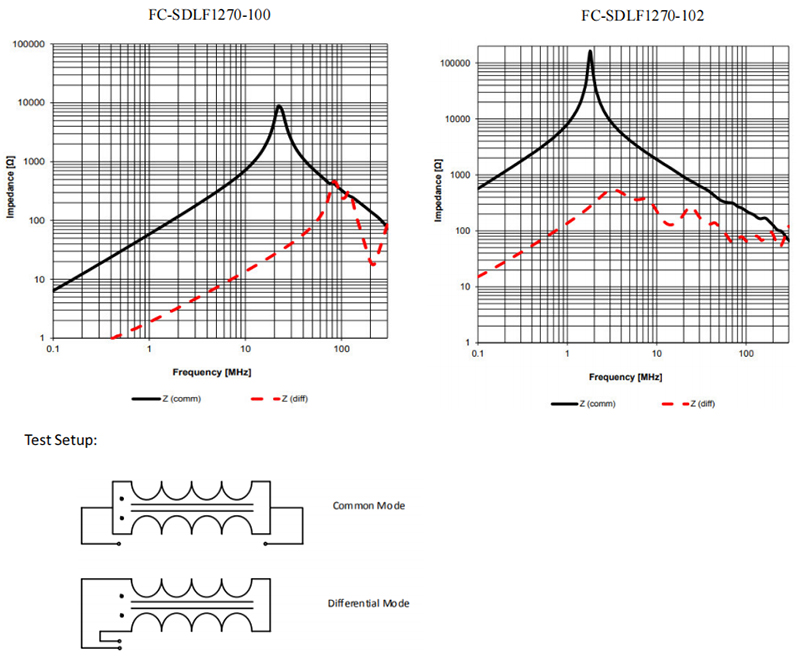

ELECTRIC CHARACTERICS
SMD Common Mode Line Filter FC-SDLF1270-1210 –Series
| Part Number | Test condition | Inductance(uH) | Z(Ω) | Rated Current (mA) | DC Resistance N1,N2(Ω) |
| FC-SDLF1270-100 | 100KHZ/0.1V | 10±30% | 8800 | 2250 | 0.05 |
| FC-SDLF1270-101 | 100±30% | 41000 | 900 | 0.28 | |
| FC-SDLF1270-102 | 1000±30% | 160000 | 250 | 2.80 | |
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C.C t
Classification Reflow Profile for SMT components:

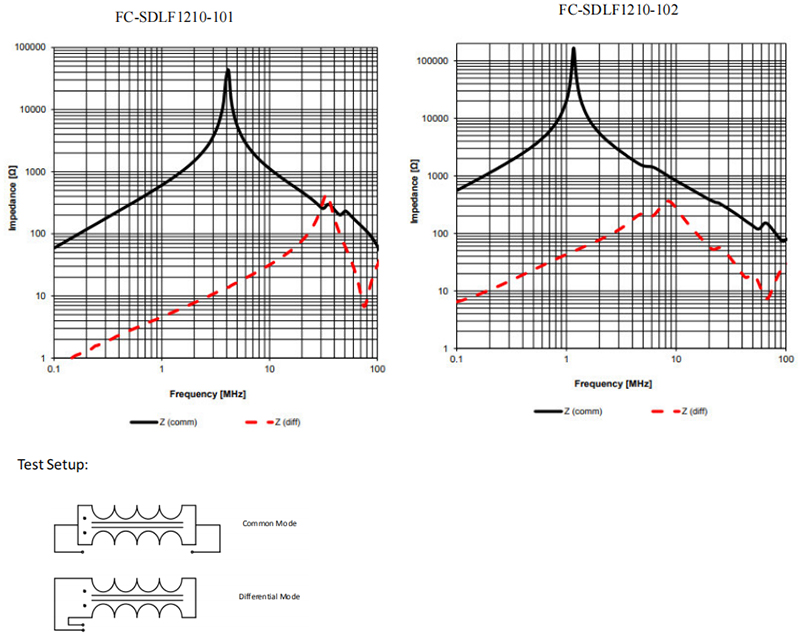

ELECTRIC CHARACTERICS
SMD Common Mode Line Filter FC-SDLF1270-1210 –Series
| Part Number | Test condition | Inductance(uH) | Z(Ω) | Rated Current (mA) | DC Resistance N1,N2(Ω) |
| FC-SDLF1210-100 | 100KHZ/0.1V | 10±30% | 4300 | 2750 | 0.035 |
| FC-SDLF1210-101 | 100±30% | 30000 | 1000 | 0.28 | |
| FC-SDLF1210-102 | 1000±30% | 80000 | 300 | 2.50 | |
Classification Reflow Profile for SMT components:
